Motor-protective circuit-breakers PKZ2
Compact starters, high-capacity compact starters
Part no.
Article no.
Price
See price
list
Std. pack Notes Notes
PKZ2/ZM-1/SE1A/11(230V50HZ,240V60HZ)
063364
1 off 1 NC and 1 N/O auxiliary
contact built into the contact
module.
The compact starters consist of a motor-protective circuit-
breaker, which features a plug-in trip block and an attached
contact module with the same matching profile. The devices are
prefitted to a clip plate and can be snap-fitted, as a unit, centrally
onto one or two top-hat rails to IEC/EN 60715 conform top-hat
rails.
They conform with IEC/EN 60947-4-1, VDE 0660 Part 102.
Iq = Rated conditional short-circuit current
PKZ2/ZM-1.6/SE1A/11(230V50HZ,240V60HZ)
063372
PKZ2/ZM-2.4/SE1A/11(230V50HZ,240V60HZ)
063382
PKZ2/ZM-4/SE1A/11(230V50HZ,240V60HZ)
063392
PKZ2/ZM-6/SE1A/11(230V50HZ,240V60HZ)
063402
PKZ2/ZM-10/SE1A/11(230V50HZ,240V60HZ)
063412
PKZ2/ZM-16/SE1A/11(230V50HZ,240V60HZ)
063422
PKZ2/ZM-25/SE1A/11(230V50HZ,240V60HZ)
063432
PKZ2/ZM-32/SE1A/11(230V50HZ,240V60HZ)
063442
PKZ2/ZM-40/SE1A/11(230V50HZ,240V60HZ)
063452
PKZ2/ZM-1/S(230V50HZ,240V60HZ)
063472
1 off Rated short-circuit current
Iq = 100 kA/400 V
High-capacitycontactmodule
has built-in auxiliary contacts:
1 M/1 B
PKZ2/ZM-1.6/S(230V50HZ,240V60HZ)
063482
PKZ2/ZM-2.4/S(230V50HZ,240V60HZ)
063492
PKZ2/ZM-4/S(230V50HZ,240V60HZ)
063502
PKZ2/ZM-6/S(230V50HZ,240V60HZ)
063512
PKZ2/ZM-10/S(230V50HZ,240V60HZ)
063522
PKZ2/ZM-16/S(230V50HZ,240V60HZ)
063532
PKZ2/ZM-25/S(230V50HZ,240V60HZ)
063542
PKZ2/ZM-32/S(230V50HZ,240V60HZ)
063552
PKZ2/ZM-40/S(230V50HZ,240V60HZ)
063562

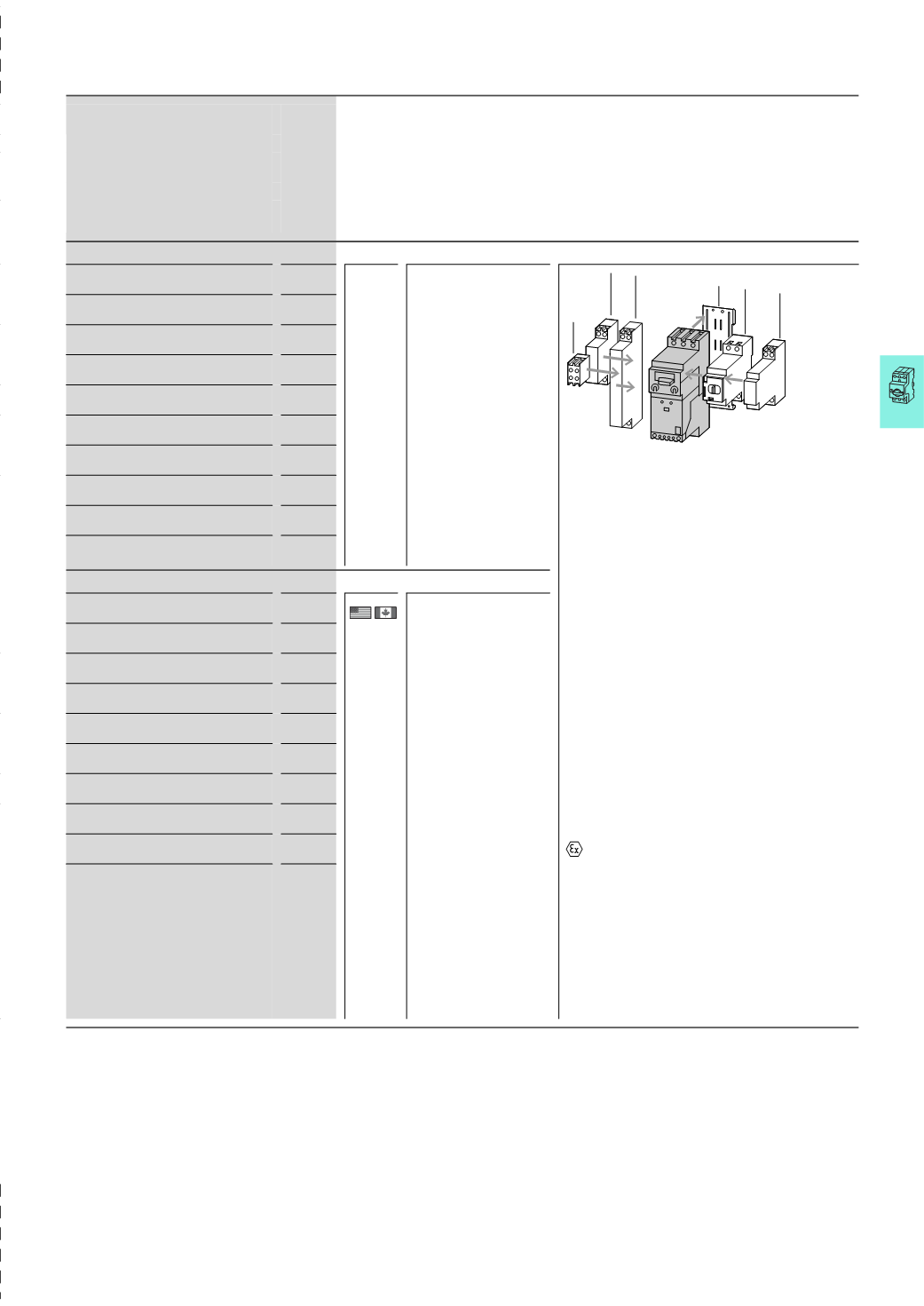

Accessories Page
3 Standard auxiliary contacts ￫ 7/58
4 Standard auxiliary contacts ￫ 7/58
5 Trip-indicating auxiliary contact ￫ 7/58
6 Shunt release, undervoltage release ￫ 7/60
7 Remote operators ￫ 7/62
9 Clip plate ￫ 7/69
Additional accessories ￫ 7/56
Further actuating voltages ￫ 7/70
Manual ￫ 7/69
5
3 4
7 6
9
Phase failure sensitivity to IEC/EN 60947-4-1,
VDE 0660 Part 102
Supplied ready mounted on clip plate C-PKZ2, can be snap-
fitted to one or two IEC/EN 60715 top-hat rails, height 15 mm
Overload releases adjustable Ir = 0.6 - 1.0 x Iu
Adjustable short-circuit release Irm = 8.5 - 14 x Iu factory-set
to 12 x Iu
PTB 02 ATEX 3152
Observe manual.
7/51
PKZ2/ZM HPL07051EN
