Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE

Accessories

2010

CA08103002Z-EN

www.eaton.com

7/45

Accessories

Accessories

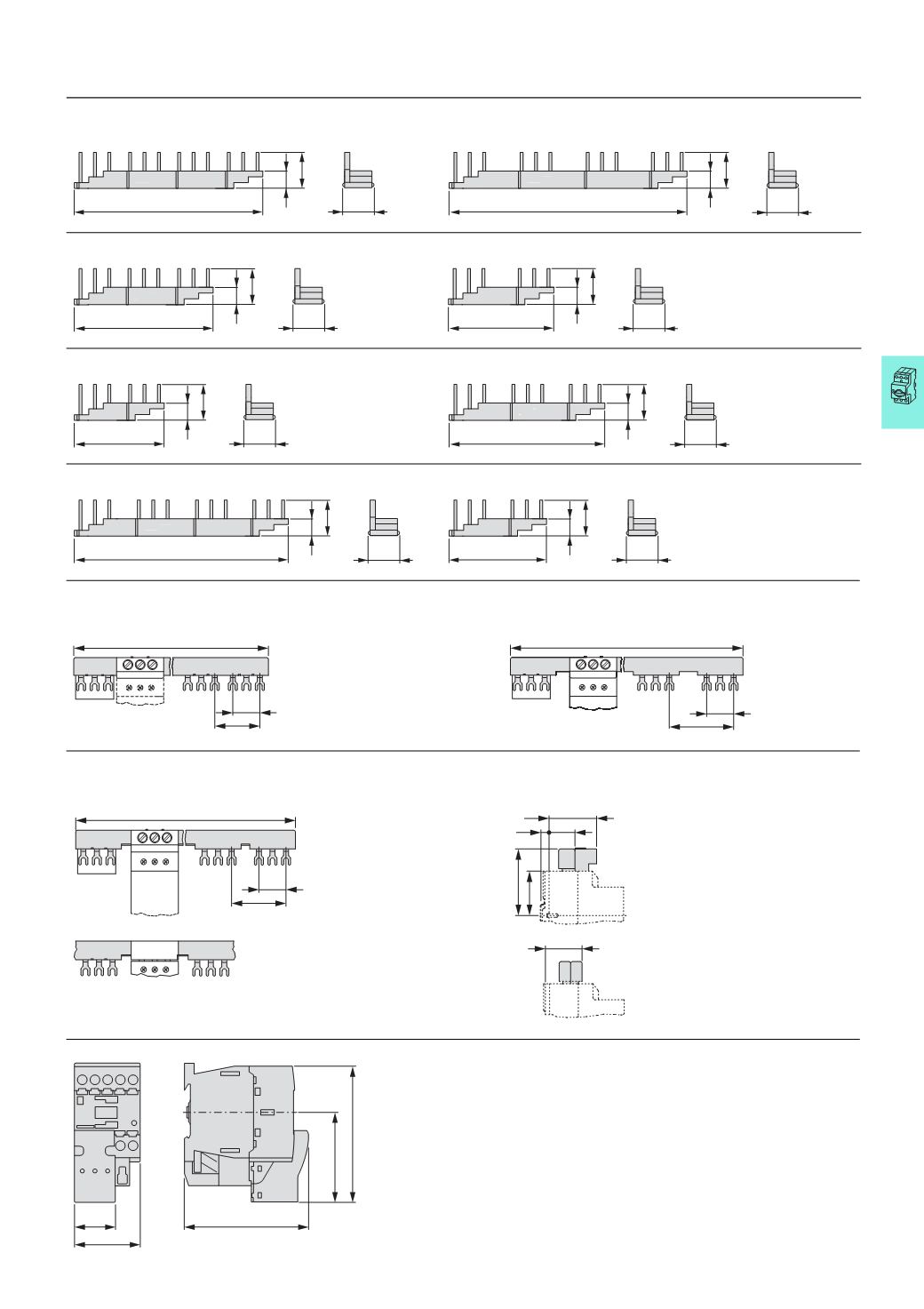

Three-phase commoning links

B3.0/4-PKZ4

B3.2/4-PKZ4

B3.0/3-PKZ4

B3.2/2-PKZ4

B3.0/2-PKZ4

B3.1/3-PKZ4

B3.1/4-PKZ4

B3.1/2-PKZ4

Three-phase commoning links

Three-phase commoning links

B3.0/4-PKZ0

B3.2/4-PKZ0

B3.0/2-PKZ0

B3.2/2-PKZ0

Three-phase commoning links

Incoming terminals

B3.1/5-PKZ0

B3.1/3-PKZ0

BK25/3-PKZ0

B3.1/4-PKZ0

B3.1/2-PKZ0

Overlapping

mounting to

extend the

three-phase

commoning link

Motor plug DILM12-XMCP/T

14

205

36

33

33

14

260

36

14

151

36

33

14

115

36

33

14

98

36

33

33

14

170

36

33

14

232

36

33

14

117

36

180 (90)

H-B3-

PKZ 0

27

45

234

H-B3-

PKZ0

27

63

H-B3-

PKZ 0

27

261 (207, 153, 99)

54

BK25/3-PKZ0

F

41

73

7.5

31

48

F

56

B3...-PKZ0

45

62

94

27

85

PKZM0, PKZM4
