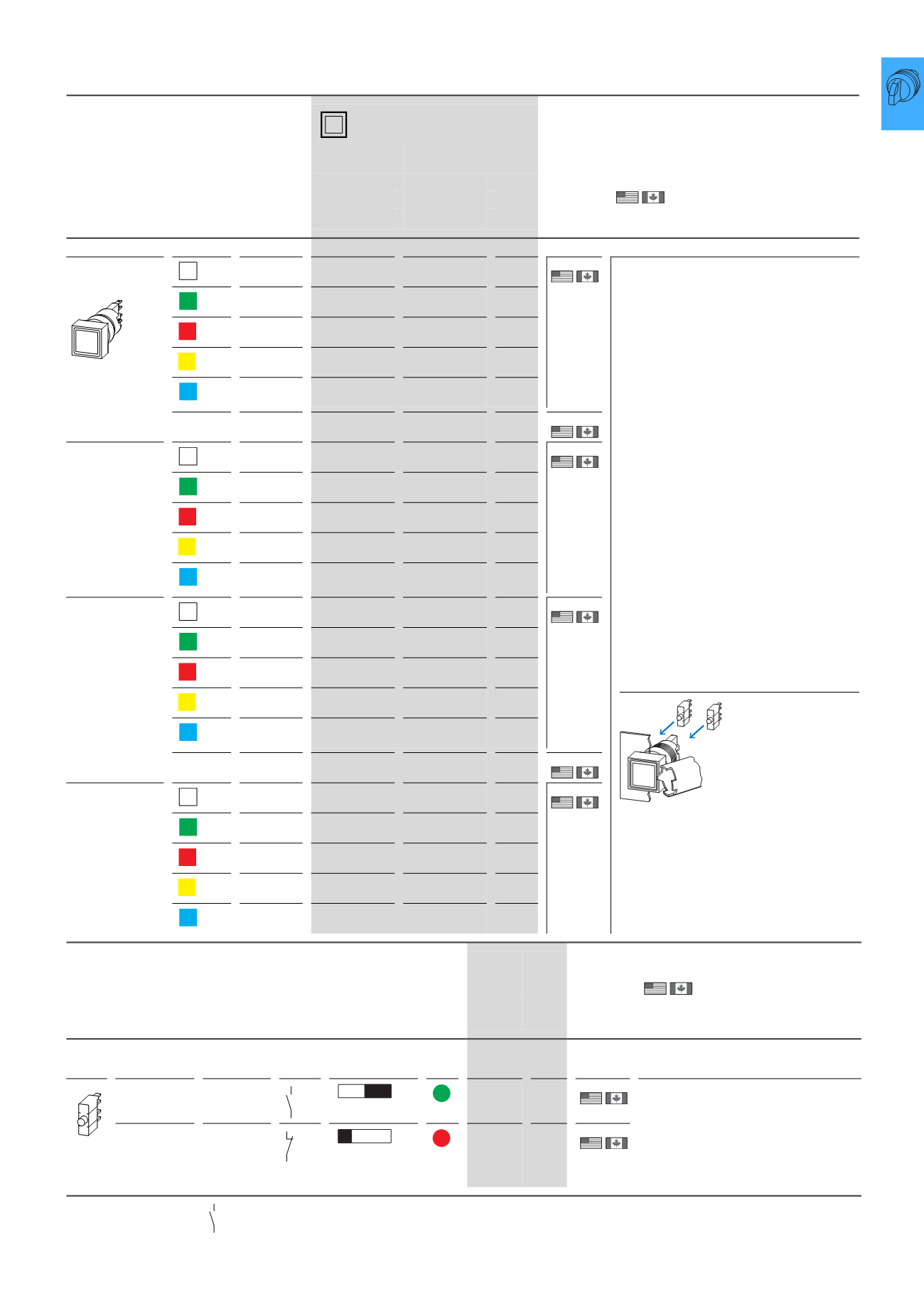

RMQ16 pilot devices
Illuminated pushbutton actuators
2010 CA08103002Z-EN
2/85
Illuminatedpushbuttonactuators
Front dimensions
18 x 18 mm
Front dimensions
25 x 25 mm
Color Part no.
Article no.
Part no.
Article no.
Price
See
price
list
Std. pack Information relevant for export to North America
Lens
Illuminated pushbutton actuators, IP65
Momentary
Without filament
bulb
– Q18LT-WS
089202
Q25LT-WS
086262
10 off Product Standards IEC/EN 60947-5; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 46552
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
Degree of Protection UL/CSA Type 1
– Q18LT-GN
089067
Q25LT-GN
086206
– Q18LT-RT
089776
Q25LT-RT
086238
– Q18LT-GE
088808
Q25LT-GE
086173
– Q18LT-BL
088764
Q25LT-BL
090479
– Without lens Q18LT-X
051745
Q25LT-X
051746
10 off
With filament bulb,
24 V
– Q18LT-WS/WB
088561
Q25LT-WS/WB
090226
10 off
– Q18LT-GN/WB
088509
Q25LT-GN/WB
089190
– Q18LT-RT/WB
088537
Q25LT-RT/WB
089998
– Q18LT-GE/WB
088449
Q25LT-GE/WB
089137
– Q18LT-BL/WB
088338
Q25LT-BL/WB
089102
Maintained
Without filament
bulb
– Q18LTR-WS
088123
Q25LTR-WS
087232
10 off
– Q18LTR-GN
087831
Q25LTR-GN
086812
– Q18LTR-RT
087918
Q25LTR-RT
086840
– Q18LTR-GE
087764
Q25LTR-GE
086784
– Q18LTR-BL
086813
Q25LTR-BL
086739
– Without lens Q18LTR-X
051735
Q25LTR-X
051736
10 off
With filament bulb,
24 V
– Q18LTR-WS/WB
086708
Q25LTR-WS/WB
086447
10 off
– Q18LTR-GN/WB
086413
Q25LTR-GN/WB
086380
– Q18LTR-RT/WB
086448
Q25LTR-RT/WB
086412
– Q18LTR-GE/WB
086382
Q25LTR-GE/WB
086346
– Q18LTR-BL/WB
086348
Q25LTR-BL/WB
086330
Contact configuration:
 = Safety function via positive
opening to IEC/EN 60947-5-1
Circuit
symbol
Contact
sequence
Color Part no.
Article no.
Price
See
price
list
Std. pack Information relevant for export to
North America
N/O = normally
open contact
NC = normally
closed contact
Contact elements
Admissible operating voltage: 5 – 250 V
1 N/O – E10
090351
50 off Product Standards IEC/EN 60947-5; UL 508;
CSA-C22.2 No. 14-05;
CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 46552
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
– 1 NC  E01
090401
50 off
Notes x = Sequence number on front element
y = Function number on contact element
Accessories Page
Assembly aids and
accessories
￫2/96
Contact elements
N/O ￫2/84
NC ￫2/84
.3
.4
0 2.2 3.7 mm
.1
.2
0 1 3.7 mm
xy
xy
Q18LT(R)..., Q25LT(R) HPL02085EN
