Sensors
Comet series
2010 CA08103002Z-EN
Optical sensors 3/93

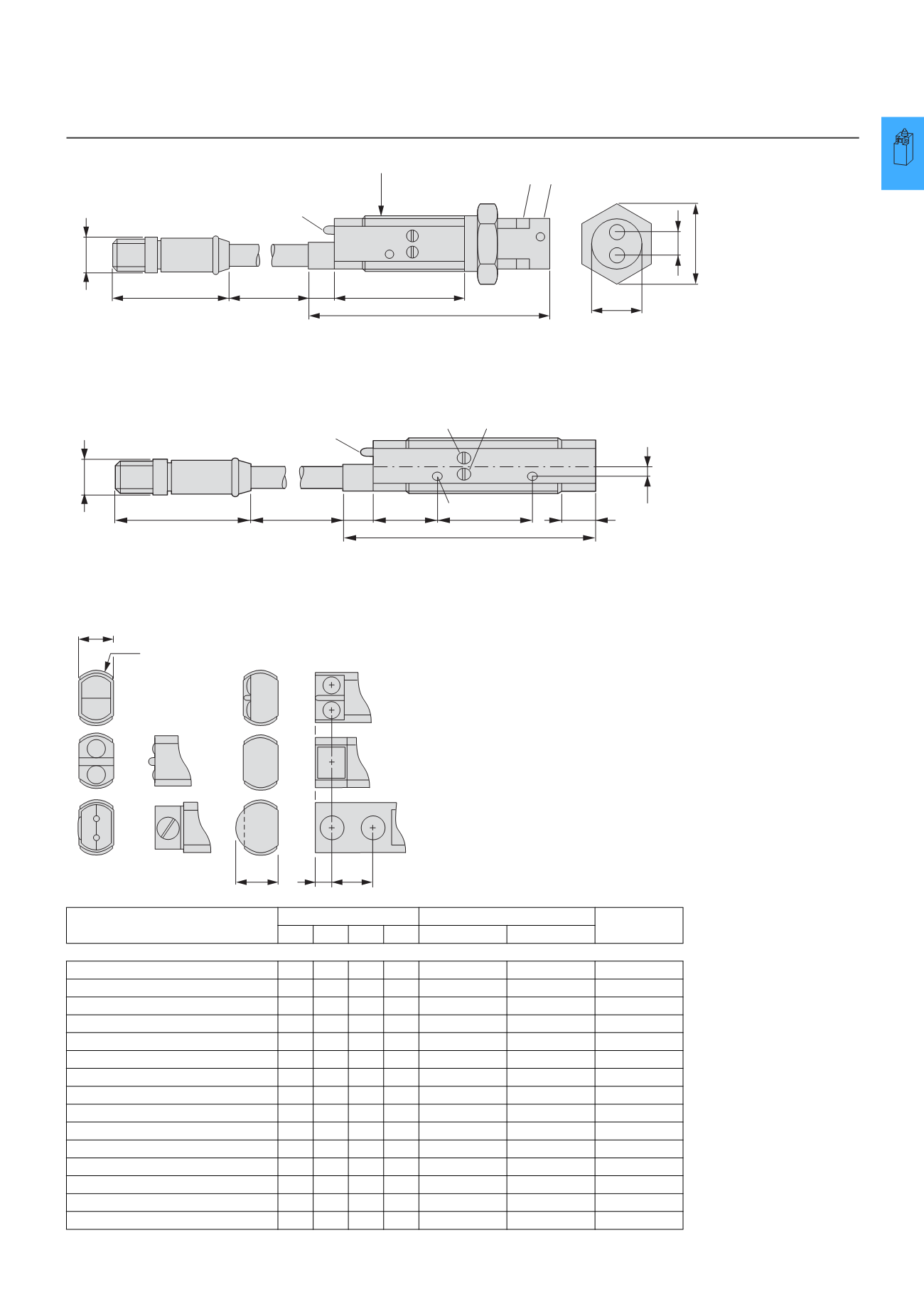

Optical sensorsCometseriesDimensions
Comet series, sensorwith installedadapterOpticalSensorsCometSeries,FOcables
Sensor with installed adapter
① Seal
② Adapter
③ Cable length
① Brightness setting
② Gain adjustment
③ Cable length
Dimensions in (mm) Settings Housing type
a b c d Light/dark Gain
11100A... 56 17 6 - No No 2
11100R... 65 17 15 5 No No 4
11102A... 70 17 28 - No No 1
12100A... 56 17 6 - Yes Yes 2
12100R... 65 17 15 5 Yes Yes 4
12102A... 66 15 7 - Yes Yes 1
13100A..., 13106A... 56 17 6 - Yes Yes 2
13100R..., 13106R... 65 17 15 5 Yes Yes 4
13101A..., 13104A... 66 15 6 - Yes No 1
13102A..., 13103A..., 13105A..., 13108A... 66 15 6 - Yes Yes 1
13104R... 77 15 28 5 Yes No 6
14100A..., 14102A... 66 15 7 - Yes Yes 1
14101R..., 14102R... 76 15 18 5 Yes Yes 5
14101A... 67 15 7 - Yes Yes 1
15100A..., 15101A... 73 15 15 - Yes Yes 3
M18x1
o
14.2
16.8
38.1 8.1 c
42.9
66
8.1 25.4
a b
LED
o
14.2
b
o 3.2
25.4 c 8.1 c
42.9
a
a b
LED
2.8
15.2 d 12.7
"4"
"5"
"6"
11.9
M18 x 1
"2"
"3"
"1"
Device part no.
