3/58 Sensors
E57 Premium Plus Short Series
2010 CA08103002Z-EN
Inductive Sensors

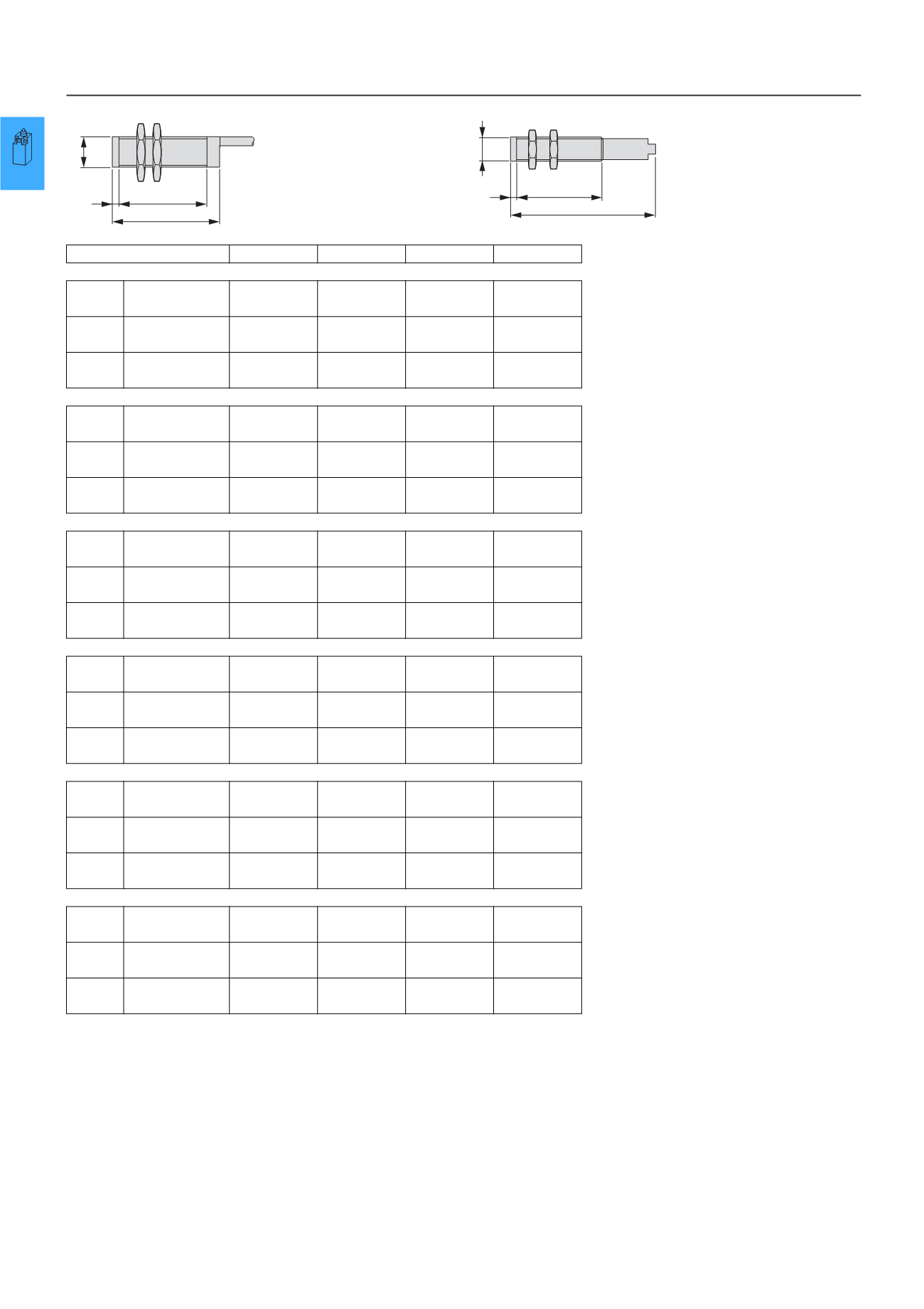

InductiveSensorsE57PremiumPlusShortSeries2 m connection cable M12 plug connector
a b c d
2-wire, AC, 2 m connection cable
12 mm Flush 51.7 39.6 0.5 M12x1
Non-flush 51.7 35.1 5 M12x1
18 mm Flush 35.4 21.82 0.5 M18x1
Non-flush 35.4 15.32 7 M18x1
30 mm Flush 40.2 25.15 0.8 M30x1.5
Non-flush 44.9 17.27 13.26 M30x1.5
2-wire, AC, M12 plug connector
12 mm Flush 57.8 39.6 0.5 M12x1
Non-flush 57.8 35.1 5 M12x1
18 mm Flush 40.0 21.82 0.5 M18x1
Non-flush 40.0 15.32 7 M18x1
30 mm Flush 44.8 25.15 0.8 M30x1.5
Non-flush 49.5 17.27 13.26 M30x1.5
2-wire, AC/DC, 2 m connection cable
12 mm Flush 62.4 50.27 - M12x1
Non-flush 62.4 45.77 5 M12x1
18 mm Flush 64.5 50.9 - M18x1
Non-flush 64.5 44.4 7 M18x1
30 mm Flush 69.3 53.8 - M30x1.5
Non-flush 69.3 41.4 13.26 M30x1.5
2-wire, AC/DC, M12 plug connector
12 mm Flush 68.4 50.27 - M12x1
Non-flush 68.4 45.77 5 M12x1
18 mm Flush 69.06 50.9 - M18x1
Non-flush 69.06 44.4 7 M18x1
30 mm Flush 73.8 53.8 - M30x1.5
Non-flush 73.8 41.4 13.26 M30x1.5
3-wire, DC, 2 m connection cable
12 mm Flush 35.2 23.9 0.5 M12x1
Non-flush 35.2 18.59 5 M12x1
18 mm Flush 35.4 21.82 0.5 M18x1
Non-flush 35.4 15.32 7 M18x1
30 mm Flush 40.2 21.26 0.8 M30x1.5
Non-flush 44.9 13.46 13.26 M30x1.5
3-wire, DC, M12 plug connector
12 mm Flush 41.5 23.9 0.5 M12x1
Non-flush 41.5 18.59 5 M12x1
18 mm Flush 40.3 21.82 0.5 M18x1
Non-flush 40.3 15.32 7 M18x1
30 mm Flush 45.0 21.26 0.8 M30x1.5
Non-flush 49.7 13.46 13.26 M30x1.5
b c
a
d d
b c
a
