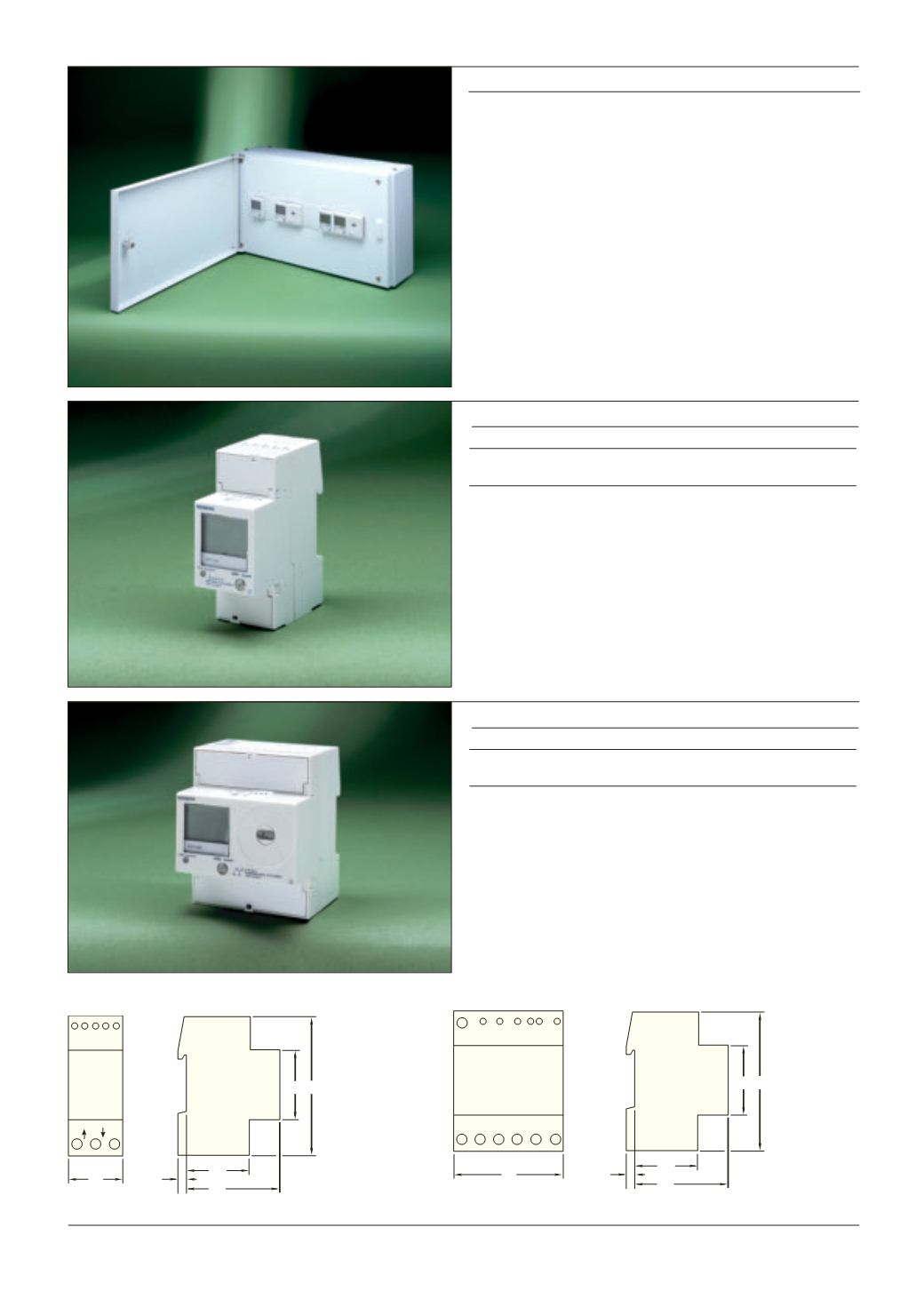

A TP DIRECT CONNECTION ENERGY METERS
Description LIST No
Three Phase direct connection energy meter
C7KT1543
Three Phase direct connection energy meter (MID calibrated)
C7KT1545
•
Direct connect kWh meter
•
Pulsed output
•
DIN rail mounting
• 35
mm
2
terminal capacity
•
Green backlit display
C7KT1531
C7KT1543
SUB METERING
Sub metering provides an awareness of energy use. Trends of minimum and
maximum demand become visible enabling any instances of energy waste to
be identified.
Metering alone cannot reduce energy consumption or subsequent carbon
emissions -
action taken based upon knowledge gained from an
effective metering strategy can
.
Schedule 7 of the Electricity Act 1989 requires that all meters must be approved
for use in a billing situation. MID (Measuring Instruments Directive) approved
meters have since 2006, been approved for billing purposes across the EU.
80
A SP DIRECT CONNECTION ENERGY METERS
Description LIST No
Single Phase direct connection energy meter
C7KT1531
Single Phase direct connection energy meter (MID calibrated)
C7KT1533
•
Direct connect kWh meter
•
Pulsed output
•
DIN rail mounting
• 35
mm
2
terminal capacity
•
Green backlit display
1 2
L1 L1 N
3 4 5
36
44
64
6
45 90
44
64
6
1 2
L1
N
L1 L2 L2 L3 L3
3 4 5 6
72
45 90
ENERGY METER DIMENSIONS
C7KT1 531 & C7KT1 533
C7KT1 543 & C7KT1 545
