CARLO GAVAZZI
kWh
M21
125

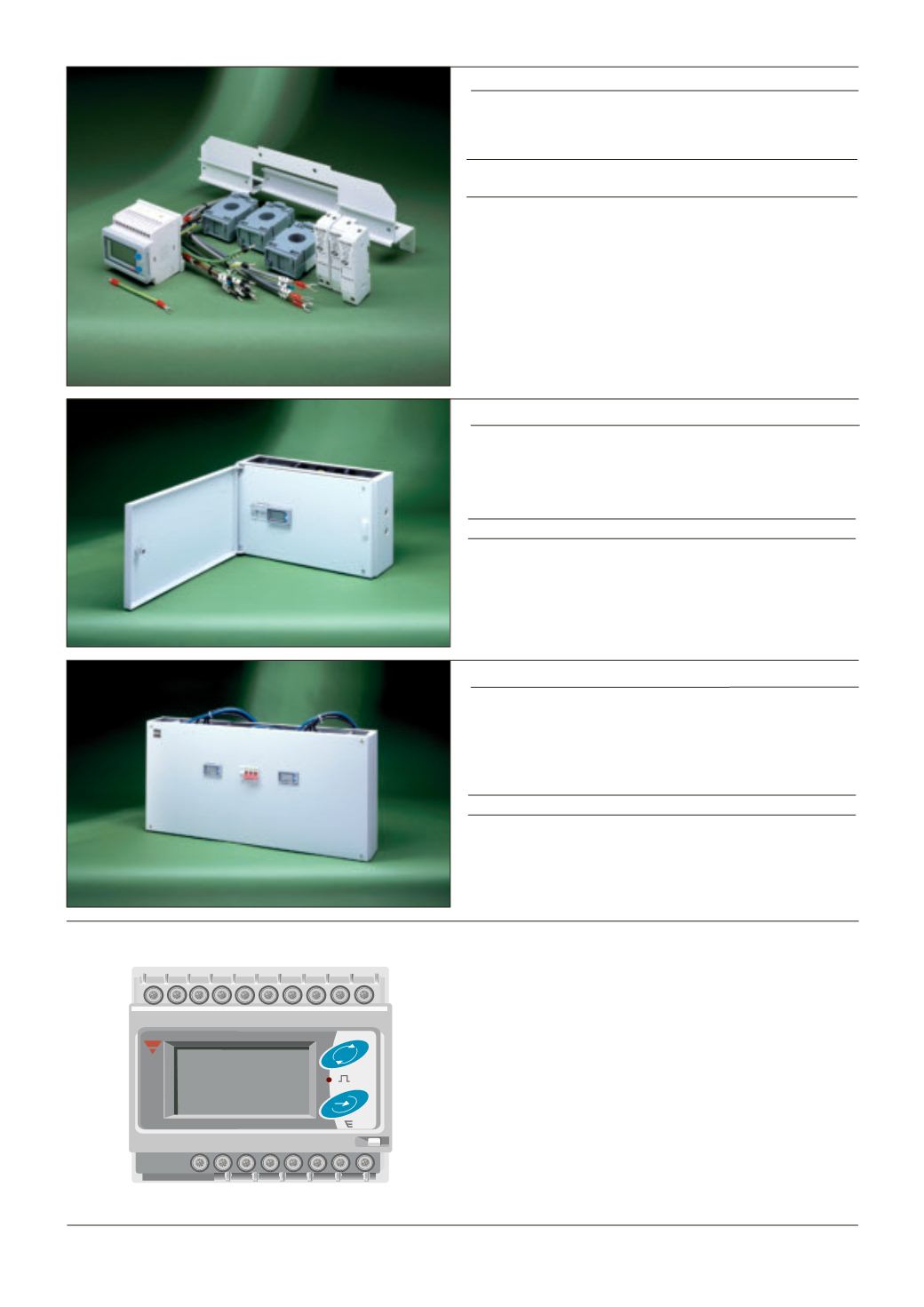

A INTEGRAL METER KIT
I
Integral meter kit suitable for mounting within 125A type B
Meter
Ready
(
MR) Distribution Boards* Includes a Digital energy meter, three
current transformers, fuses, wiring looms and mounting base plate.
Description LIST No
125
A Integral Meter Kit
LS125MPKIT
125
A Integral Meter Kit (MID)
LS125MIDMPKIT
*
Integral meter kits are designed for use in conjunction with modular
three pole incoming options only. For other incoming options select the
‘
add-on‘ assembly seen below.
18
ML125
18
ML125LP
125
A SINGLE METER PACKS
I
245
mm high ‘add on’ assemblies suitable for mounting directly beneath
any surface 125A type B Distribution Board. Includes a digital energy
meter, three current transformers and all associated fuses and wiring.
Enclosures have a slotted front plate and hinged door with catch offering
a lockable option.
Description LIST No
125
A ‘Add-on Meter Pack
18
ML125
125
A DUAL METER PACKS
I
410
mm high ‘add on’ assemblies suitable for mounting directly beneath
two surface 125A type B Distribution Boards. Includes two digital energy
meters six current transformers all associated fuses & wiring and flexible
interconnections to Distribution Boards. Provides single point isolation
while dual meters allow for separate monitoring of
Light
and small
Power
energy consumption.
Description LIST No
125
A ‘Add-on‘ Dual Meter Pack
18
ML125LP
kWh
Kilowatt hours
kW (
)
Real Power (system)
kvarh
Kilovolt amp reactive hours
kvar (
)
Reactive Power (system)
PF (
)
Power Factor (system)
Hz (
)
Frequency (system)
PF L1
Power Factor
PF L2
Power Factor
PF L3
Power Factor
A L1
Current
A L2
Current
A L3
Current
V L1-2
Line Voltage
V L2-3
Line Voltage
V L3-1
Line Voltage
V L1
Phase Voltage
V L2
Phase Voltage
V L3
Phase Voltage
Energy meters within all Loadstar final assemblies display values of:
All include pulsed output as a standard feature.
RS485 port for MODBUS/JBUS (RTU) connections along with complete final assemblies are available on request from our technical support team.
