RSD unit mounted RCCB’s and insulated enclosures
Residual current breakers
Reference
number
Description
Terminal
capacity mm
2
Height
Width
Depth
Weight
kg
RSD25032
25A RCCB 30mA trip 2 pole
35
81
36
75
0.227
RSD25302
25A RCCB 300mA trip 2 pole
35
81
36
75
0.227
RSD40032
40A RCCB 30mA trip 2 pole
35
81
36
75
0.227
RSD40102
40A RCCB 100mA trip 2 pole 35
81
36
75
0.227
RSD40302
40A RCCB 300mA trip 2 pole 35
81
36
75
0.227
RSD63032
63A RCCB 30mA trip 2 pole
35
81
36
75
0.227
RSD63102
63A RCCB 100mA trip 2 pole
35
81
36
75
0.227
RSD63302
63A RCCB 300mA trip 2 pole 35
81
36
75
0.227
RSD80032
80A RCCB 30mA trip 2 pole
50
81
36
75
0.227
RSD80102
80A RCCB 100mA trip 2 pole 50
81
36
75
0.227
RSD100032
100A RCCB 30mA trip 2 pole
50
81
36
75
0.227
RSD100102
100A RCCB 100mA trip 2 pole 50
81
36
75
0.227
Individual RCCB insulated enclosures
Reference
number
Description
Height
Width
Depth
Weight
kg
13392
2 x 18mm module IP40 protection
150
50
60
0.10
RSD4IP54
4 x 18mm module IP54 protection
200
110
112
0.35

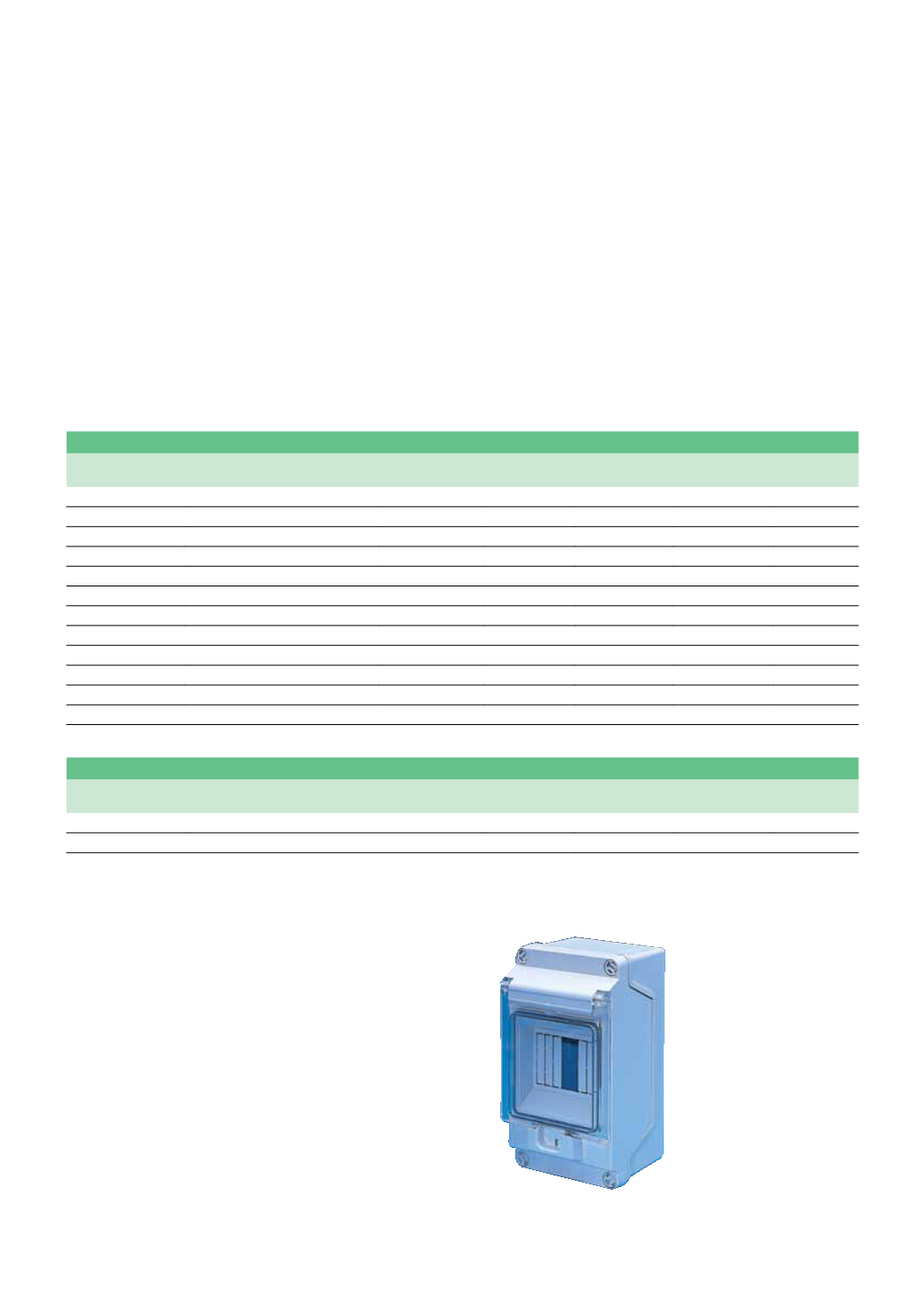

Unit mounted RCCB’s and their associated enclosures
offer a cost effective method of supplementing existing
installations with the benefits of earth fault protection.
Enclosures may be mounted at the incoming point of
the installation or locally to the load eg, in garages or
sheds with socket outlets.
■
Test button enables RCCB to be tested periodically
■
Comply with BS EN 61008. Specification for residual
current operated circuit breakers
■
Rated voltage 240/415Vac single/three phase
For short circuit back-up protection, maximum fuse rating:-
RSD 25A
Fuse to BS 88 Type T 40A
or BS 1361 Type RH 30A
RSD 40A
Fuse to BS 88 Type T 50A
or BS 1361 Type RH 40A
RSD 63A
Fuse to BS 88 Type T 63A
or BS 1361 Type RH 60A
RSD 80A
Fuse to BS 88 Type T 80A
or BS 1361 Type RH 80A
RSD 100A
Fuse to BS 88 Type T 100A
or BS 1361 Type RH 100A
Dimensions (mm)
Dimensions (mm)
A cost effectivemethod of
providing earth fault protection
for existing single circuits or
entire installations.
