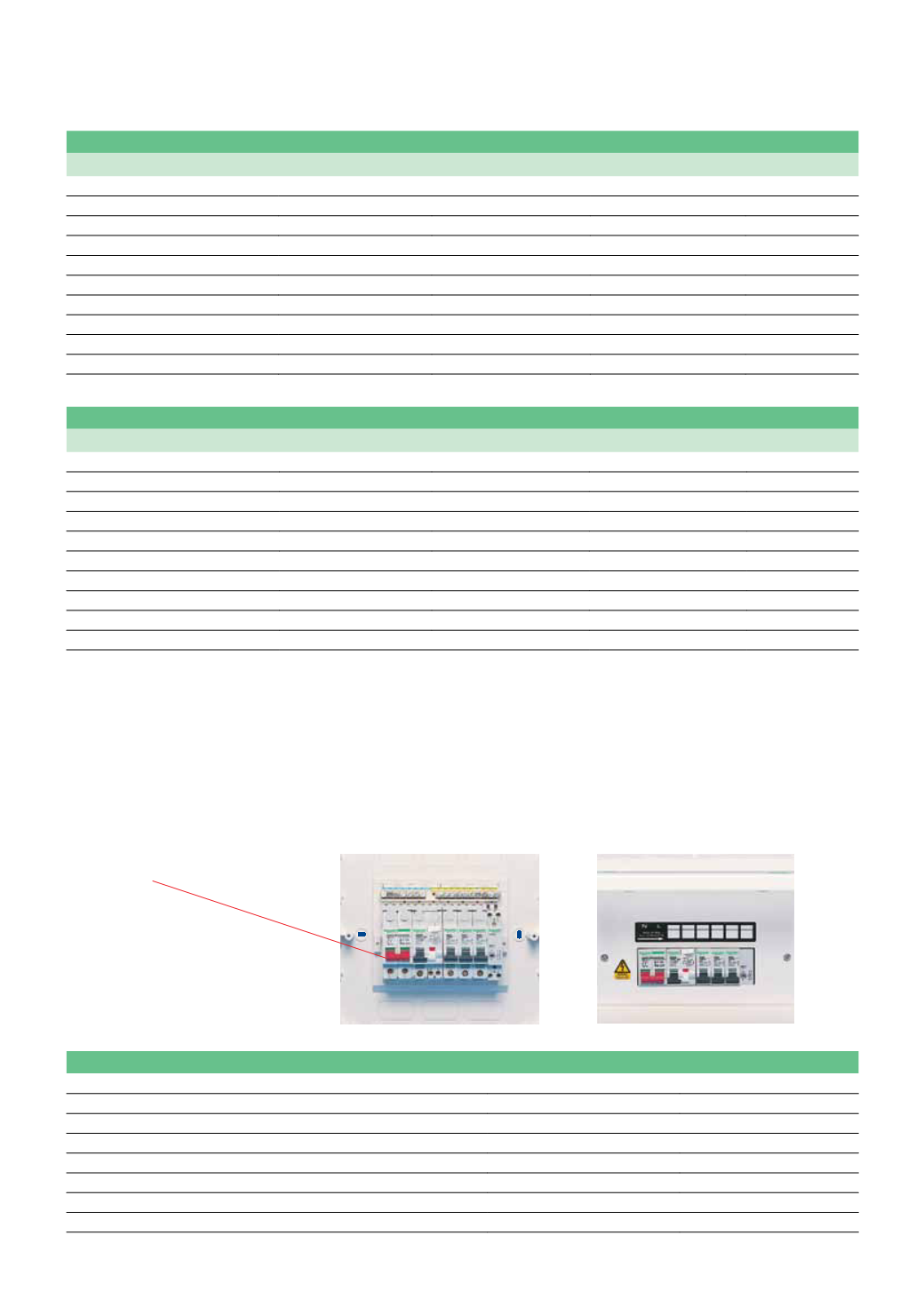

Qwikline ll - standard consumer unit technical data
Insulated units
Reference number
No. of ways
Height (mm)
Width (mm)
Depth (mm)
SQO2
2
240
189
127
SQO4
4
240
224
127
SQO6
6
240
260
127
SQO8
8
240
296
127
SQO12
12
240
368
127
SQO16
16
240
440
127
SQO23
24
480
368
127
SQOSR6R6
12
240
440
127
SQOS2R5R5
12
240
440
127
SQODS2R5R5
12
240
440
127
Metal units
Reference number
No. of ways
Height (mm)
Width (mm)
Depth (mm)
SQOM2
2
247
186
111
SQOM4
4
247
222
111
SQOM6
6
247
258
111
SQOM8
8
247
294
111
SQOM12
12
247
366
111
SQOM16
16
247
438
111
SQOM24
24
247
366
111
SQOMSR6R6
12
247
438
111
SQOMDS2R5R5
12
247
438
111
SQOMS2R5R5
12
247
438
111
Note:
Incoming and outgoing devices must be selected separately from the Qwikline ll devices section.
The following ref’s are supplied with switch disconnector and RCDs fitted:-
SQOSR6R6, SQOS2R5R5, SQODS2R5R5, SQOMSR6R6, SQOMSR5R5, SQOMDSR5R5
Incoming devices available
• Switch disconnector – 100A
• Terminal block
– 100A
• RCCB’s
– 63A/30mA, 63A/100mA, 100A/30mA, 100A/100mA, 100A/300mA,
100A/100mA TD
Technical data
Metal
Insulated
Max. busbar current rating (A)
100
100
Max. operating voltage (V)
240
240
Operating frequency (Hz)
50
50
Max. incoming cable capacity mm
2
(phase and neutral)
50
50
Max. outgoing cable capacity mm
2
25
25
Certification
BS EN 61439-3
BS EN 61439-3
IP rating BS EN 60529 (internal)
2XB
2XB
Incoming
Switch disconnector – 100A
Terminal block
– 100A
RCCB’s
– 63 or 100A/30mA,
100 or 300mA
Outgoing
MCB’s – B or C curve, 3 - 50A, 6kA
RCBO’s – B curve 6 - 45A, 6kA
