Note:
All control devices are
suitable for mounting
in any Qwikline II
consumer unit.

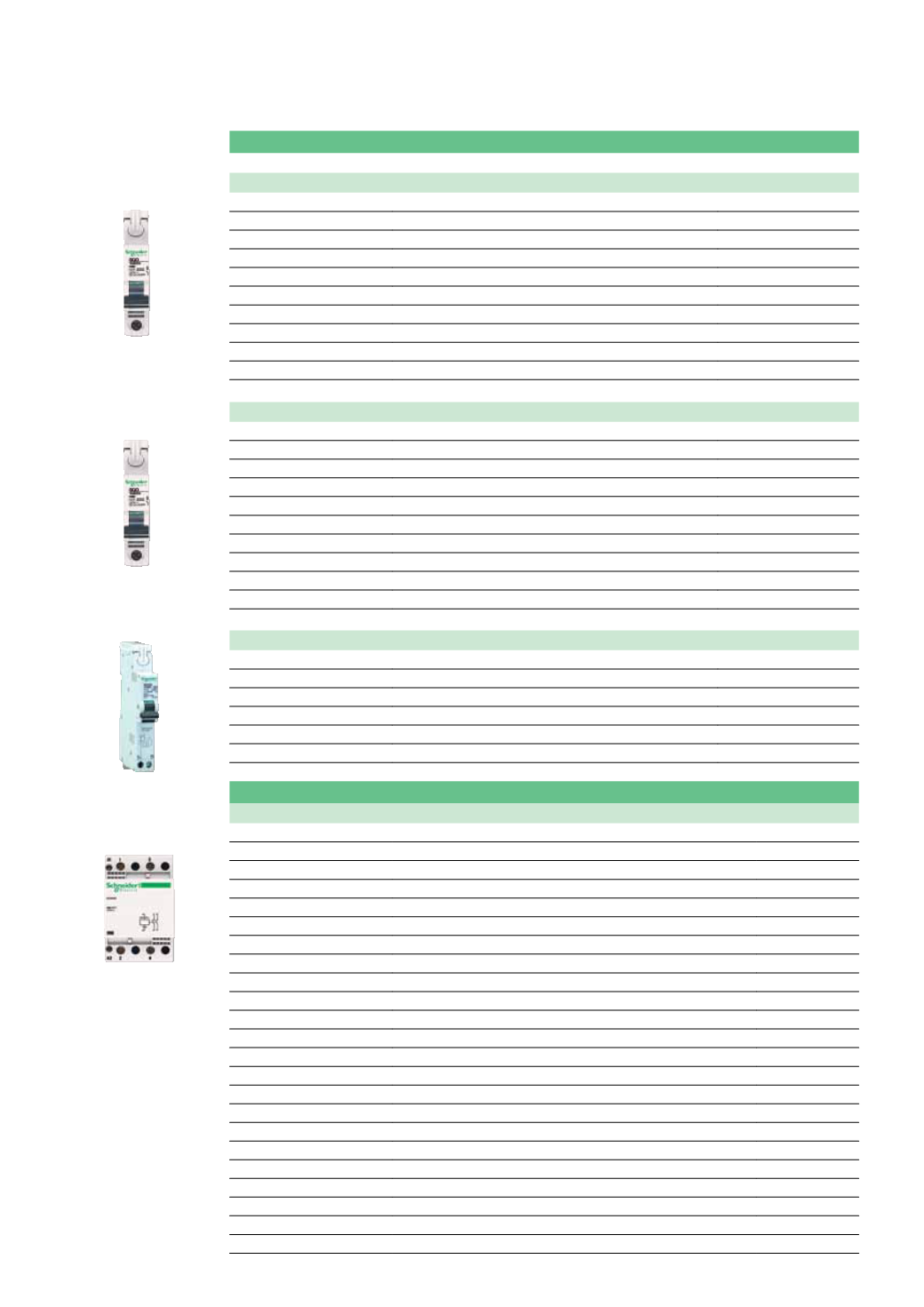

Qwikline ll - quick selector
Select outgoing devices
SP 6kA MCBs (B curve)
Reference number
Description
Current rating
SQO103EB6
MCB (B Curve)
3A
SQO106EB6
MCB (B Curve)
6A
SQO110EB6
MCB (B Curve)
10A
SQO116EB6
MCB (B Curve)
16A
SQO120EB6
MCB (B Curve)
20A
SQO125EB6
MCB (B Curve)
25A
SQO132EB6
MCB (B Curve)
32A
SQO140EB6
MCB (B Curve)
40A
SQO150EB6
MCB (B Curve)
50A
SQO163EB6
MCB (B Curve)
63A
Select control devices and accessories
Reference number
Device
Ways occupied
15959
2P 25A contactor
1
15962
4P 25A contactor
2
15966
2P 40A contactor
2
15967
3P 40A contactor
3
15968
4P 40A contactor
3
15972
3P 63A contactor
3
15510
1P Impulse relay (16A)
1
15520
2P Impulse relay (16A)
1
15535
Changeover relay (10A)
1
15321
Bell (8-12V)
1
15214
Transformer 240-8V (4VA)
2
15323
Buzzer (8-12V)
1
CCT15368
Light sensitive switch
3.5
15336
Single pole time switch 24hr
1
CCT15720
Single channel electrical time switch 7 day
2.5
CCT15722
Dual channel electrical time switch 7 day
2.5
15363
1P Delay off timer
1
SP 6kA MCBs (C curve)
Reference number
Description
Current rating
SQO103EC6
MCB (C Curve)
3A
SQO106EC6
MCB (C Curve)
6A
SQO110EC6
MCB (C Curve)
10A
SQO116EC6
MCB (C Curve)
16A
SQO120EC6
MCB (C Curve)
20A
SQO125EC6
MCB (C Curve)
25A
SQO132EC6
MCB (C Curve)
32A
SQO140EC6
MCB (C Curve)
40A
SQO150EC6
MCB (C Curve)
50A
SQO163EC6
MCB (C Curve)
63A
SP 6kA 1 Module RCBO (B curve)
Reference number
Description
Current rating
SQOR106B03
RCBO (30mA) 1 Module 1P&N
6A, 30mA
SQOR110B03
RCBO (30mA) 1 Module 1P&N
10A, 30mA
SQOR116B03
RCBO (30mA) 1 Module 1P&N
16A, 30mA
SQOR120B03
RCBO (30mA) 1 Module 1P&N
20A, 30mA
SQOR132B03
RCBO (30mA) 1 Module 1P&N
32A, 30mA
SQOR145B03
RCBO (30mA) 1 Module 1P&N
45A, 30mA
Accessories
SQODNBP
DIN blanking plates
5
CPS9
Half mod spacer
0.5
QOEPLA
Padlock device (suitable for use with all Qwikline II devices)
–
QOPL
Padlock
–
DOMLKIT
Door lock kit (metal units only)
–
