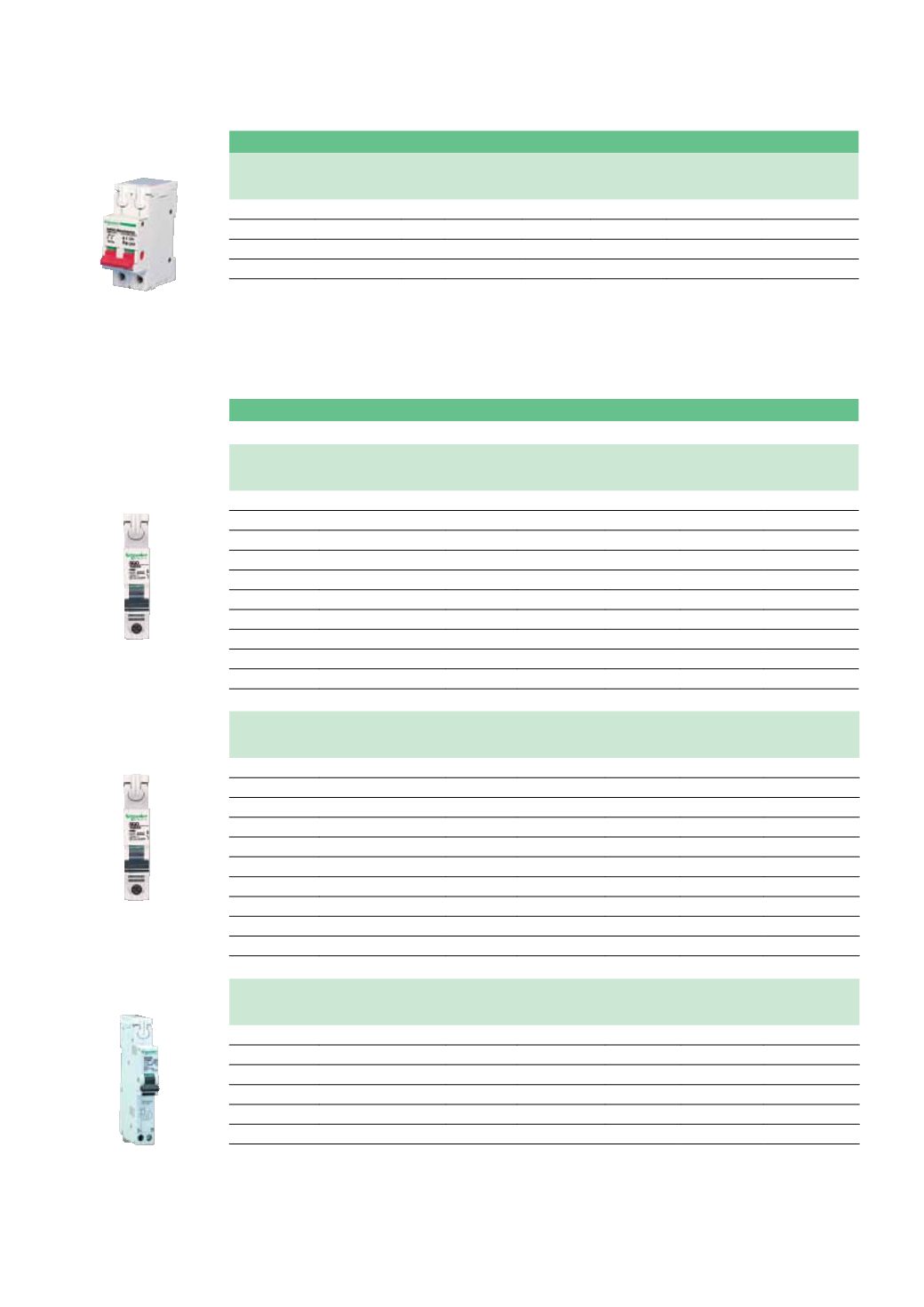

Qwikline ll - devices technical data
Qwikline ll - incoming devices
Reference
number
Description No. of
poles
Current
rating
Operating
voltage (V)
Max. cable
cap. mm
2
Standards
approval
Recommended
tightening
torque
SQO1100M
Switch dis.
2
100A
230/240 50
BS EN 60947-3 3.5 N.m.
SQO1100L
Terminal block 2
100A
230/240 50
–
3.5 N.m.
SQOE063030
RCCB
2
63A, 30mA 230/240 35
BS EN 61008 3.5 N.m.
SQOE063100
RCCB
2
63A, 100mA 230/240 35
BS EN 61008 3.5 N.m.
Note:
All Qwikline II consumer units are supplied without incoming devices. Any incoming device
may be installed at any incoming point, or busbar split in any Qwikline II consumer unit.
Requirements
Standard units – 1 incoming device required.
Split load units – 2 incoming devices required.
Dual incomer units – 2 incoming devices required.
Multi tariff units – 3 incoming devices required.
Qwikline ll - outgoing devices
Miniature circuit breakers (B curve)
Reference
number
Current
rating
Operating
voltage (V)
Breaking cap.
(Icn (kA))
Max. cable
cap. mm
2
Standards
approval
Recommended
tightening
torque
SQO103EB6
3A
230/240 6
25
BS EN 60898 2 N.m.
SQO106EB6
6A
230/240 6
25
BS EN 60898 2 N.m.
SQO110EB6
10A
230/240 6
25
BS EN 60898 2 N.m.
SQO116EB6
16A
230/240 6
25
BS EN 60898 2 N.m.
SQO120EB6
20A
230/240 6
25
BS EN 60898 2 N.m.
SQO125EB6
25A
230/240 6
25
BS EN 60898 2 N.m.
SQO132EB6
32A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO140EB6
40A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO150EB6
50A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO163EB6
63A
230/240 6
35
BS EN 60898 3.5 N.m.
Miniature circuit breakers (C curve)
Reference
number
Current
rating
Operating
voltage (V)
Breaking cap.
(Icn (kA))
Max. cable
cap. mm
2
Standards
approval
Recommended
tightening
torque
SQO103EC6
3A
230/240 6
25
BS EN 60898 2 N.m.
SQO106EC6
6A
230/240 6
25
BS EN 60898 2 N.m.
SQO110EC6
10A
230/240 6
25
BS EN 60898 2 N.m.
SQO116EC6
16A
230/240 6
25
BS EN 60898 2 N.m.
SQO120EC6
20A
230/240 6
25
BS EN 60898 2 N.m.
SQO125EC6
25A
230/240 6
25
BS EN 60898 2 N.m.
SQO132EC6
32A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO140EC6
40A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO150EC6
50A
230/240 6
35
BS EN 60898 3.5 N.m.
SQO163EC6
63A
230/240 6
35
BS EN 60898 3.5 N.m.
RCBO’s (B curve)
Reference
number
Current
rating
Operating
voltage (V)
Breaking cap.
(Icn (kA))
Max. cable
cap. mm
2
Standards
approval
Recommended
tightening
torque
SQOR106B03
6A, 30mA (AC class)
230/240 6
10
BS EN 61009 2 N.m.
SQOR110B03
10A,30mA (AC class)
230/240 6
10
BS EN 61009 2 N.m.
SQOR116B03
16A,30mA (AC class)
230/240 6
10
BS EN 61009 2 N.m.
SQOR120B03
20A,30mA (AC class)
230/240 6
10
BS EN 61009 2 N.m.
SQOR132B03
32A,30mA (AC class)
230/240 6
16
BS EN 61009 2 N.m.
SQOR145B03
45A,30mA (AC class)
230/240 6
16
BS EN 61009 2 N.m.
