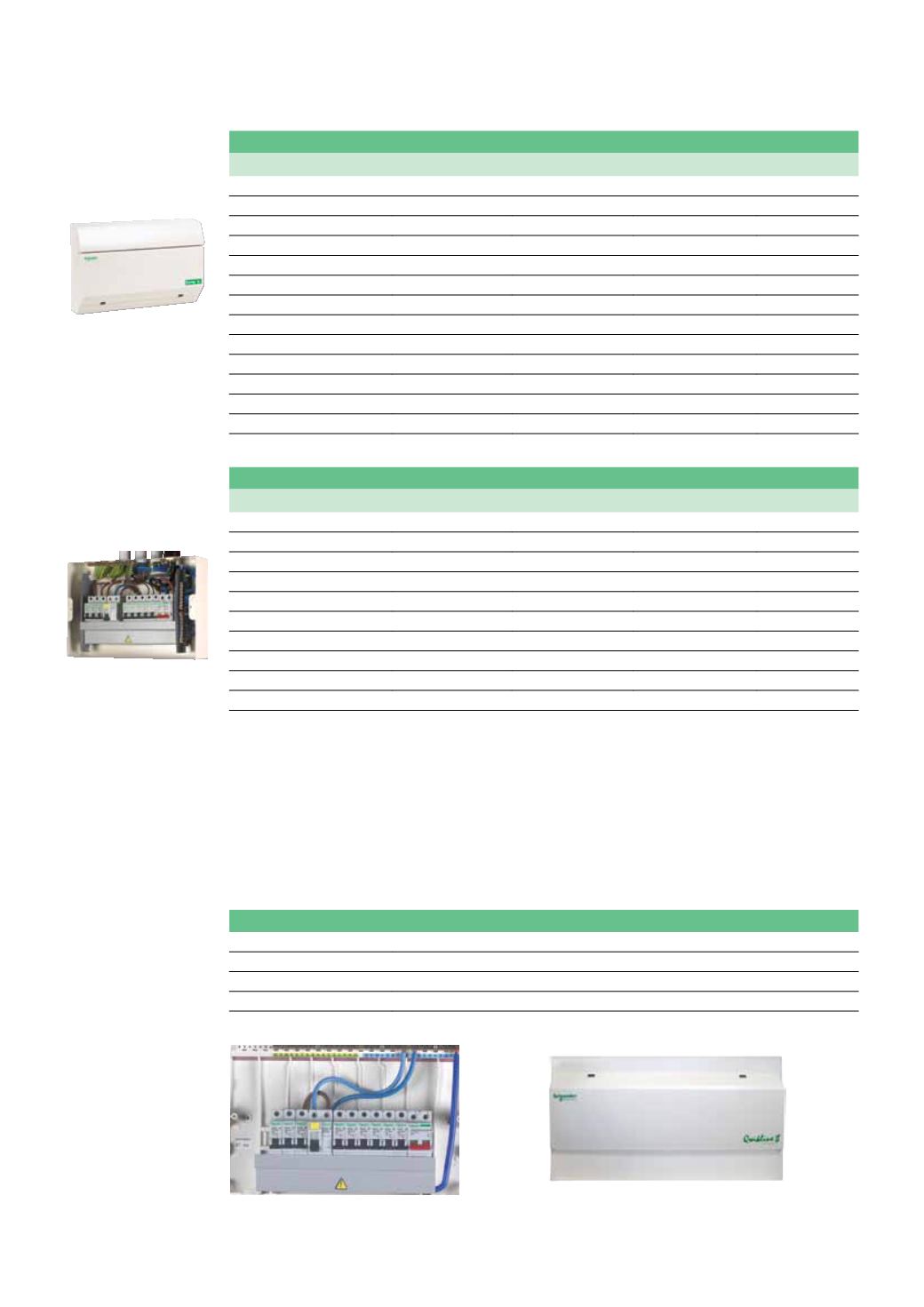

Domae consumer units - dimensions & technical data
Insulated units
Reference number
No. of ways
Height (mm)
Width (mm)
Depth (mm)
DOM2CU
2
240
189
127
DOM4CU
4
240
224
127
DOM6CU
6
240
260
127
DOM8CU
8
240
296
127
DOM12CU
12
240
368
127
DOM16CU
16
240
440
127
DOM20CU
20
240
510
127
DOMR4R4CU
8
240
368
127
DOMR6R6CU
12
240
440
127
DOMR6R6DCU
12
240
440
127
DOMS2R5R5DCU
12
240
440
127
DOMR8R8DCU
16
240
510
127
DOMS2R7R7DCU
16
240
510
127
Metal units
Reference number
No. of ways
Height (mm)
Width (mm)
Depth (mm)
DOM2MCU
2
247
186
111
DOM4MCU
4
247
222
111
DOM6MCU
6
247
258
111
DOM8MCU
8
247
294
111
DOM12MCU
12
247
366
111
DOM16MCU
16
247
438
111
DOMR4R4MCU
8
247
366
111
DOMR6R6MCU
12
247
438
111
DOMR6R6DMCU
12
247
438
111
DOMS2R5R5DMCU
12
247
438
111
Technical data
Max. busbar current (A)
100A
Max. operating voltage
230/240V @ 50Hz
Max. cable capacity
25 mm
2
(earth and neutral bars)
Certification
BS EN 61439-3
Note:
Incoming and outgoing devices must be selected separately from the devices section -
only applies to DOM**CU and DOM**MCU
Incoming devices available
• Switch disconnector
63A & 100A
• RCCB’s
63A/30mA 80A/30mA
Max. busbar splits - for split load
8 way
2+4 to 4+2
12 way
4+6 to 6+4
16 way
6+8 to 8+6
Fully configurable
shrouded busbars
Lockable cover option
on metal units
