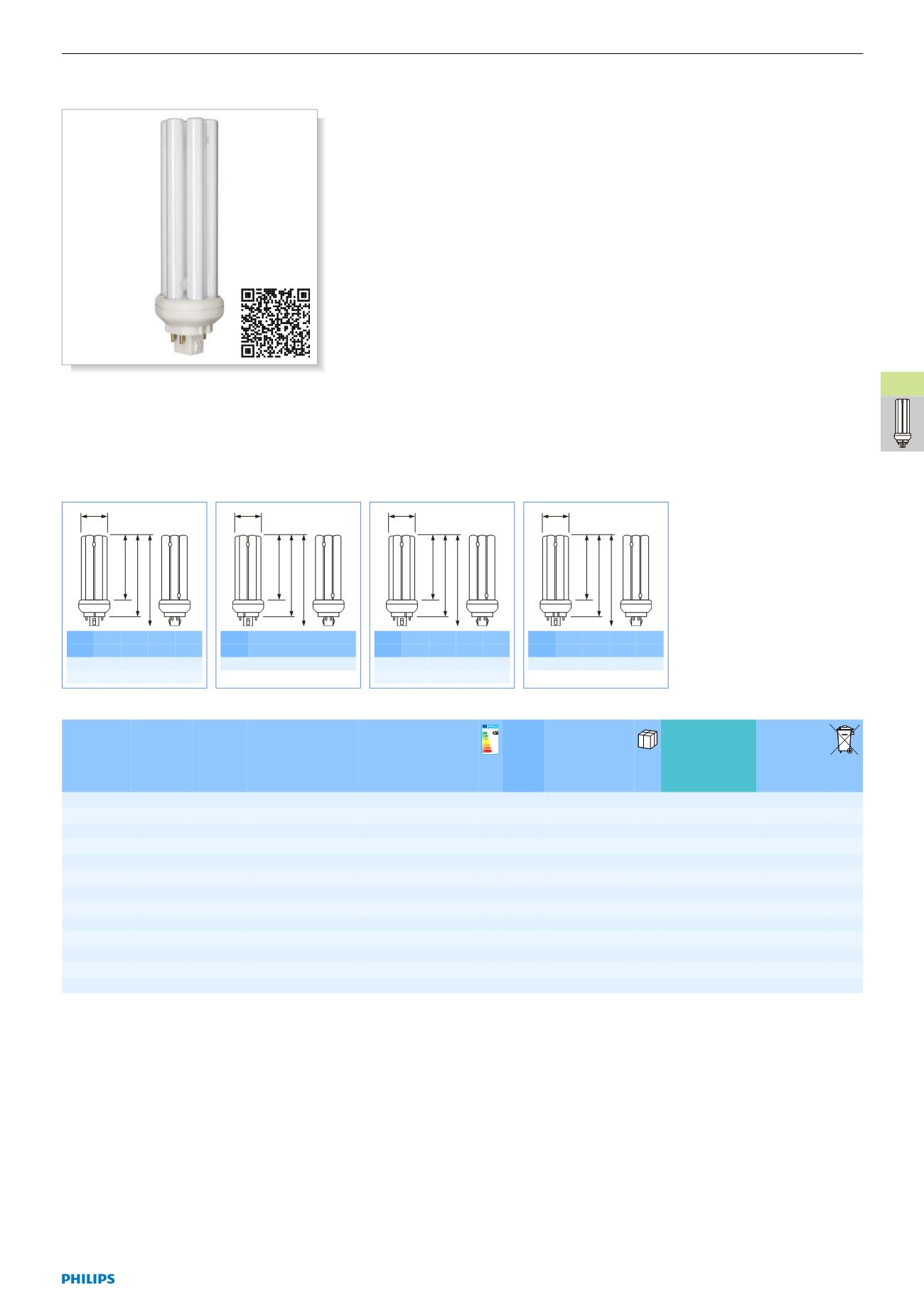

MASTER PL-T 4 Pin
Product Description
•Energy saving compact fluorescent lamp
•Compact long-arc low-pressure mercury
discharge lamp
•Envelope consists of 6 parallel narrow
fluorescent tubes
Product Benefits
•Optimal light performance for short or long
operation per switch on
•More light (about 15% more) per light point
than common
•Long life and sustainable light output
Product Features
•4-pin base without glow switch starter and
capacitor
•Fast light run up under all circumstances
•Philips invented bridge technology applied
•Dimming is possible
Environment
•Good environmental choice because of
high energy e ciency, long life and low light
output depreciation, lowest mercury content
•Compliant with all RoHS and WEEE require-
ments: the lamps have a very low content of
mercury, are lead free and make no use of
radioactive materials and hazardous flame
retardants
Application
•Designed for general or supplementary
lighting in professional and semi-professional
environments
•Ideal for use in recessed or surface mounted
downlighters, wall units, outdoor lighting
•First choice for short switching cycles,
emergency lighting and deep dimming
Warnings and Safety
•Lamp light technical and electrical char-
acteristics are influenced by operating
conditions, i. e. lamp ambient temperature
and operating position as well as applied HF
control gear
•Shorter lamp life when often switching and
not well pre-heated electrodes
A
D
B
C
Dim. A B C D
no. max. max. max. max.
1 66.7 91 106.7 41
2 157.7 182 197.7 41
A
D
B
C
Dim. A B C D
no. max. max. max. max.
3 71.7 96 111.7 41
A
D
B
C
Dim. A B C D
no. max. max. max. max.
4 86.7 111 126.7 41
5 98.7 123 138.7 41
A
D
B
C
Dim. A B C D
no. max. max. max. max.
6 120.7 145 160.7 41
MASTER PL-T /4P
Wattage/
Colour
Code
Cap-Base Colour
Rende-
ring
Index
Luminous
Flux EL
25°C,
Rated
Dim-
mable
Life to
10% fail
Preheat
EL,3h
Life to
50% fail
Preheat
EL,3h
Dim.
no.
Packing type/
Packing
configuration
National Order
Code
Ordering
number
8711500...
(Ra ) (lm) (h) (h)
13W/840 GX24q-1 82 850 yes 8,000 13,000 A 1 1CT / 5X10CC 50 13PLT8404PINCS 61047870 yes
18W/830 GX24q-2 82 1,200 yes 8,000 13,000 A 3 1CT / 5X10CC 50 18PLT8304PINCS 61076870 yes
18W/840 GX24q-2 82 1,200 yes 8,000 13,000 A 3 1CT / 5X10CC 50 18PLT8404PINCS 61099770 yes
26W/827 GX24q-3 82 1,725 yes 8,000 13,000 A 4 1CT / 5X10CC 50 26PLT8274PINCS 55993770 yes
26W/830 GX24q-3 83 1,725 yes 8,000 13,000 A 4 1CT / 5X10CC 50 26PLT8304PINCS 61120870 yes
26W/840 GX24q-3 82 1,725 yes 8,000 13,000 A 4 1CT / 5X10CC 50 26PLT8404PINCS 61125370 yes
32W/827 GX24q-3 82 2,400 yes 8,000 13,000 A 5 1CT / 5X10CC 50 32PLT8274PINCS 55996870 yes
32W/830 GX24q-3 82 2,400 yes 8,000 13,000 A 5 1CT / 5X10CC 50 32PLT8304PINCS 61128470 yes
32W/840 GX24q-3 82 2,400 yes 8,000 13,000 A 5 1CT / 5X10CC 50 32PLT8404PINCS 61131470 yes
42W/830 GX24q-4 82 3,050 yes 8,000 13,000 A 6 1CT / 5X10CC 50 42PLT8304PINCS 61134570 yes
42W/840 GX24q-4 82 3,050 yes 8,000 13,000 A 6 1CT / 5X10CC 50 42PLT8404PINCS 61137670 yes
57W/830 GX24q-5 82 4,200 yes 8,000 13,000 A 2 1CT / 5X10CC 50 57PLT8304PINCS 61140670 yes
57W/840 GX24q-5 82 4,200 yes 8,000 13,000 A 2 1CT / 5X10CC 50 57PLT8404PINCS 61145170 yes
