The Big Unitrunk Product Guide V4

Service Outlet

Assemblies

Ref. CFSO 43x3 (Shown)

Ref. CFSO 43x4

SERVICE Ref. CT/S 43 (Shown)

INSPECTION Ref. CT/I 43

SERVICE OUTLET PANELS

(See page 124)

THE UNITRUNK

SERIES

cavity floor service box is manufactured for use with a

wide variety of service outlet panels. The cavity floor box can also be used as an inscreed option with conduit

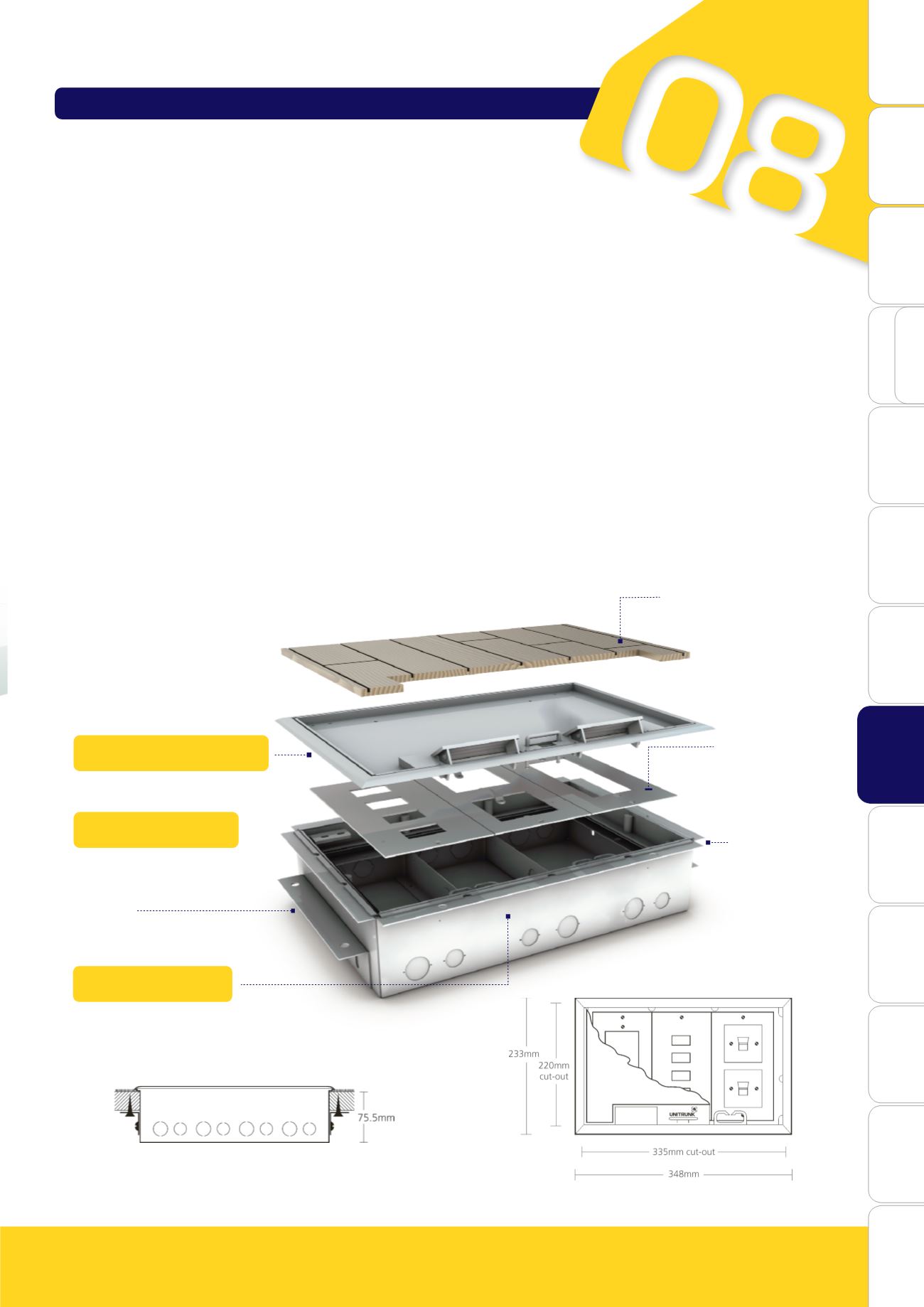

THE BASE BOX

is manufactured from galvanised steel and available in

1,2, 3

compartments (same external

dimension). Each compartment has

mm and

mm knockouts in each long side to accept flexible conduits. These

entries can be replaced with rubber grommets to allow cable access. Dividing fillets are provided to separate services.

The base box comes complete with a wide range of interchangeable accessory panels that can be supplied with or

without respective accessories. The base box is suitable for mounting in a

335

mm x

220

mm hole cut into any access

floor panel with two fixing holes in each long side or side fixing plates on short sides of box can be screw fixed to

bottom of floor tile.

RECESSED LID/TRIM ASSEMBLY

The hinged recessed lid is manufactured from

2.5

mm galvanised steel, and finished

grey epoxy coated to match the polyproplene carpet trim. The lid is fitted with a polyproplene insert which houses

cable outlets and a lifting handle. The lid pivots to an angle of

˚. The carpet trim is manufactured from polyproplene

and finished grey in colour and supported with a galvanised steel frame. The recessed lid assembly is fixed to the base

box by two

mm screws which are located at each side of the frame. All parts of the lid assembly are replaceable.

TECHNICAL INFORMATION

Floor finish recess in lid: 7mm

Assembled box depth: 75.5mm

Space under outlet panels: 40mm

Variations of Cavity Floor Box Depth can be supplied to order.

Service Outlet Panels

Corner cut-outs

15.5mm sq

Overall depth 75.5mm

Under Tile

Adjustable Support Bracket

Floor Finish (tile or carpet)

121
