Ref. EWUF3

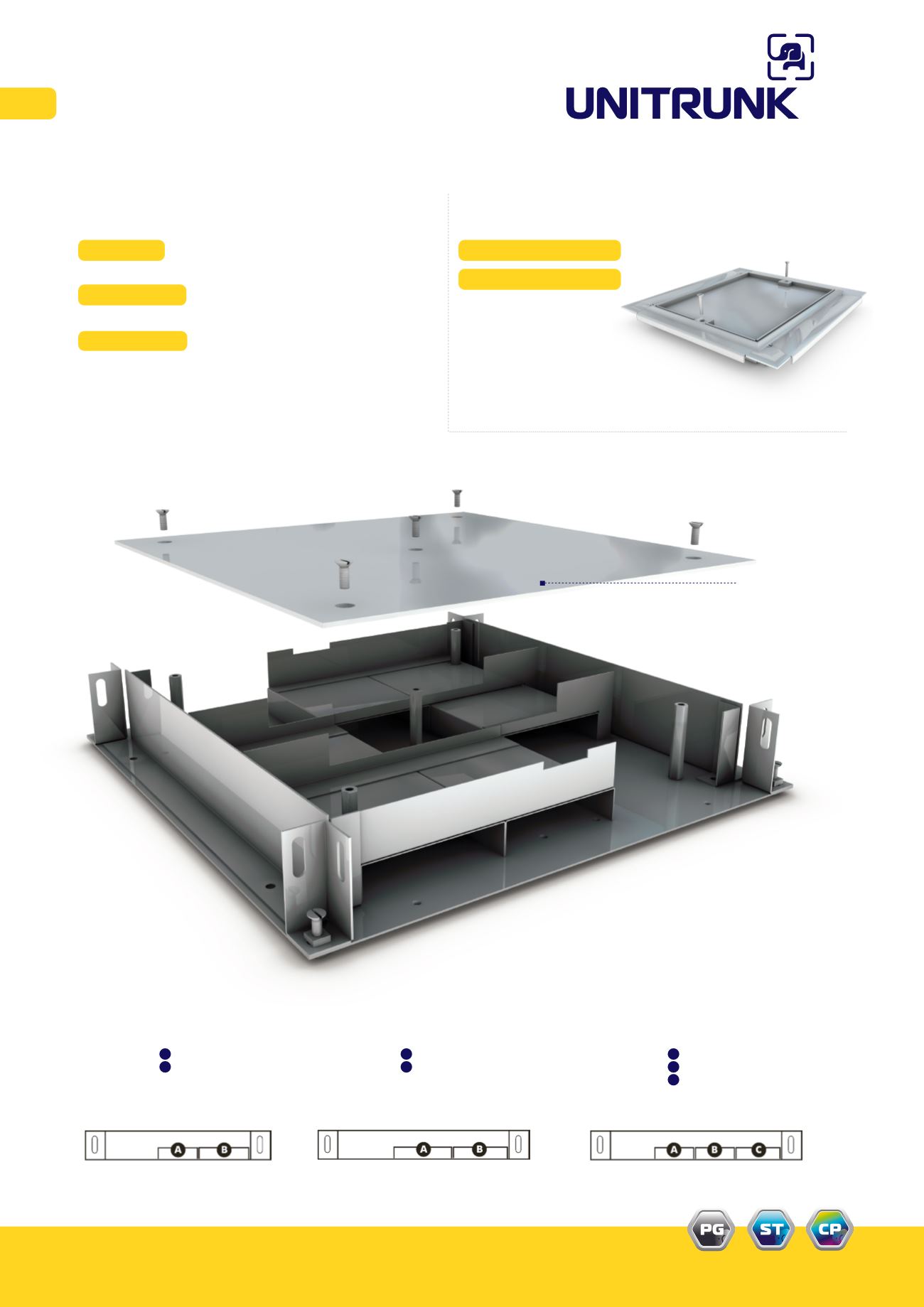

Universal Fitting
Tee/Bend/Intersection
(3 Compartment) 393mm sq x 65mm sq
(3 Compartment) 449mm sq x 65mm sq
Note: Not to be used as outlet box when used as tee/bend or intersection.
Ref. EWUF43x4
EWUF 3 (3 compartment)
Underpasses:
75 x 25mm
93 x 25mm
Overall width: 393mm sq. x 65
EWUF 43 (3 compartment)
Underpasses:
98 x 25mm
109 x 25mm
Overall width: 449mm sq. x 65
EWUF 43 (4 compartment)
Underpasses:
75.5 x 25mm
75.5 x 25mm
82 x 25mm
Overall width: 449mm sq. x 65
1 Replace plate with CT/I3, 43 &
EWUF***INSFRAME when the
universal fitting is to have an inspection point.
2 Corner screws allow fine adjustment to
compensate for irregularities in screed levels.
(4 Compartment) 449mm sq x 65mm sq
Ref. EWUF43x3
Plate
C
B
A
B
A
B
A
Ref. EWUF310INSFRAME
Ref. EWUF366INSFRAME
To add an lnspection lid to
the universal fitting
Order: EWUF310INSFRAME - CTI3 LID.
Or
IEWUF366INSFRAME - CT143 LID
(CTS3 shown as illustration only)
