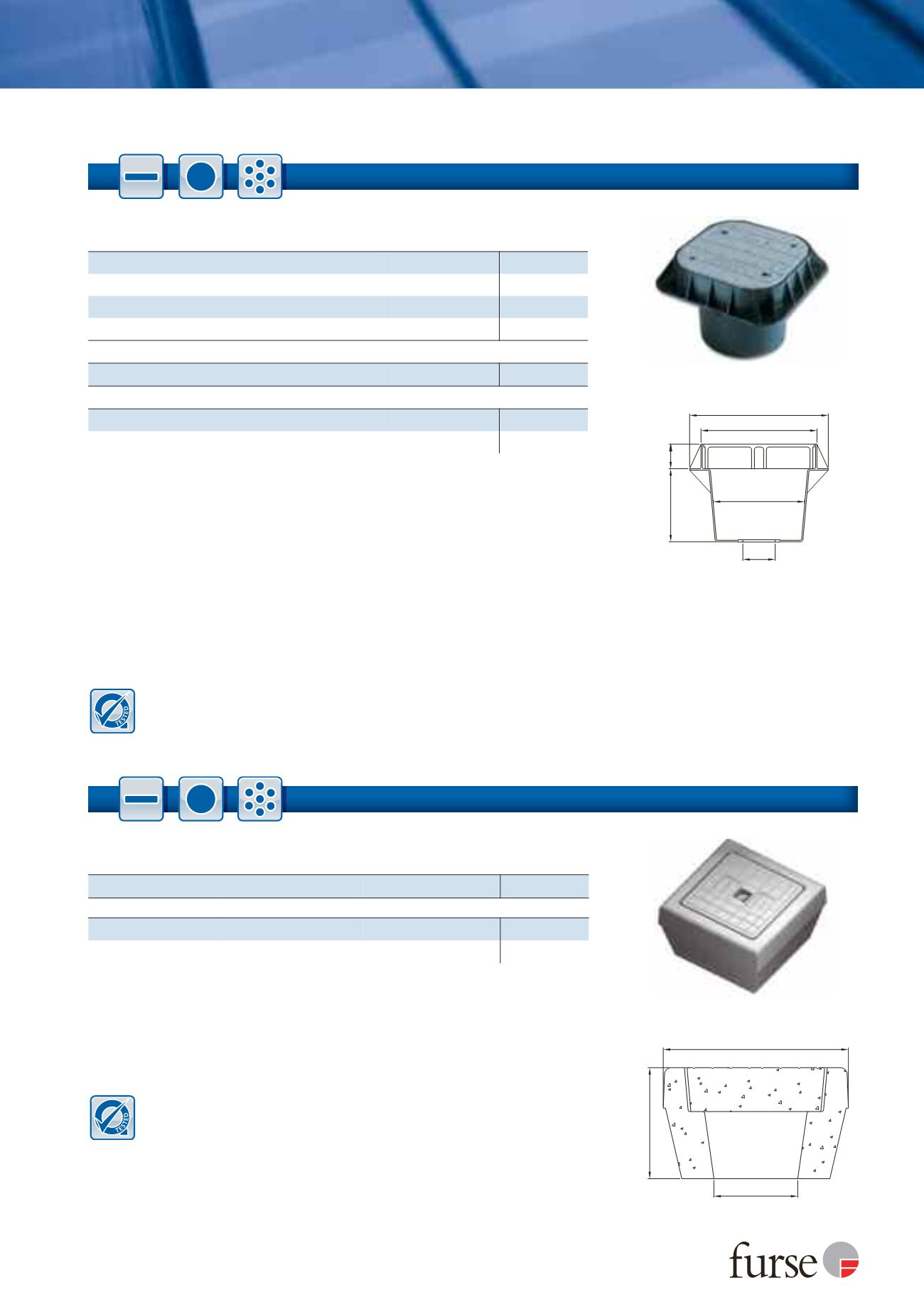

Earth electrodes
Lightweight inspection pit
Description
Weight
Part
each
No.
Lightweight inspection pit with grey polymer lid
1.80 kg
PT205
Lightweight inspection pit with black (unbranded) polymer lid
1.80 kg
PT309-FU
Lightweight inspection pit with concrete lid
7.50 kg
PT110*
5 hole earth bar
0.40 kg
PT004
Accessories for polymer lid
6 mm Allen key
0.03 kg
AK005
Accessories for concrete lid
M8 x 100 mm lg mild steel ‘J’ bolt lifting hook
0.04 kg
JH100
M8 x 60 stainless steel Allen caphead screw (2 per lid)
0.03 kg
AS100
* Not illustrated (drawing available on request).
192 mm
146 mm
320 mm
54 mm
300 mm
ø 200 mm Nominal
ø
70 mm
256 mm
158 mm
Concrete inspection pit
Description
Weight
Part
each
No.
Concrete inspection pit
30 kg
PT005
Accessories
5 hole earth bar
0.40 kg
PT006
7 hole earth bar
0.58 kg
PT007
The concrete inspection pit is load rated to 3,500 kg and is suitable for most
types of earthing and lightning protection installations.
It is not suitable for use in areas where high load, small wheel vehicles are
used. The lightweight inspection pit (
PT205
) is recommended for this type
of application.
