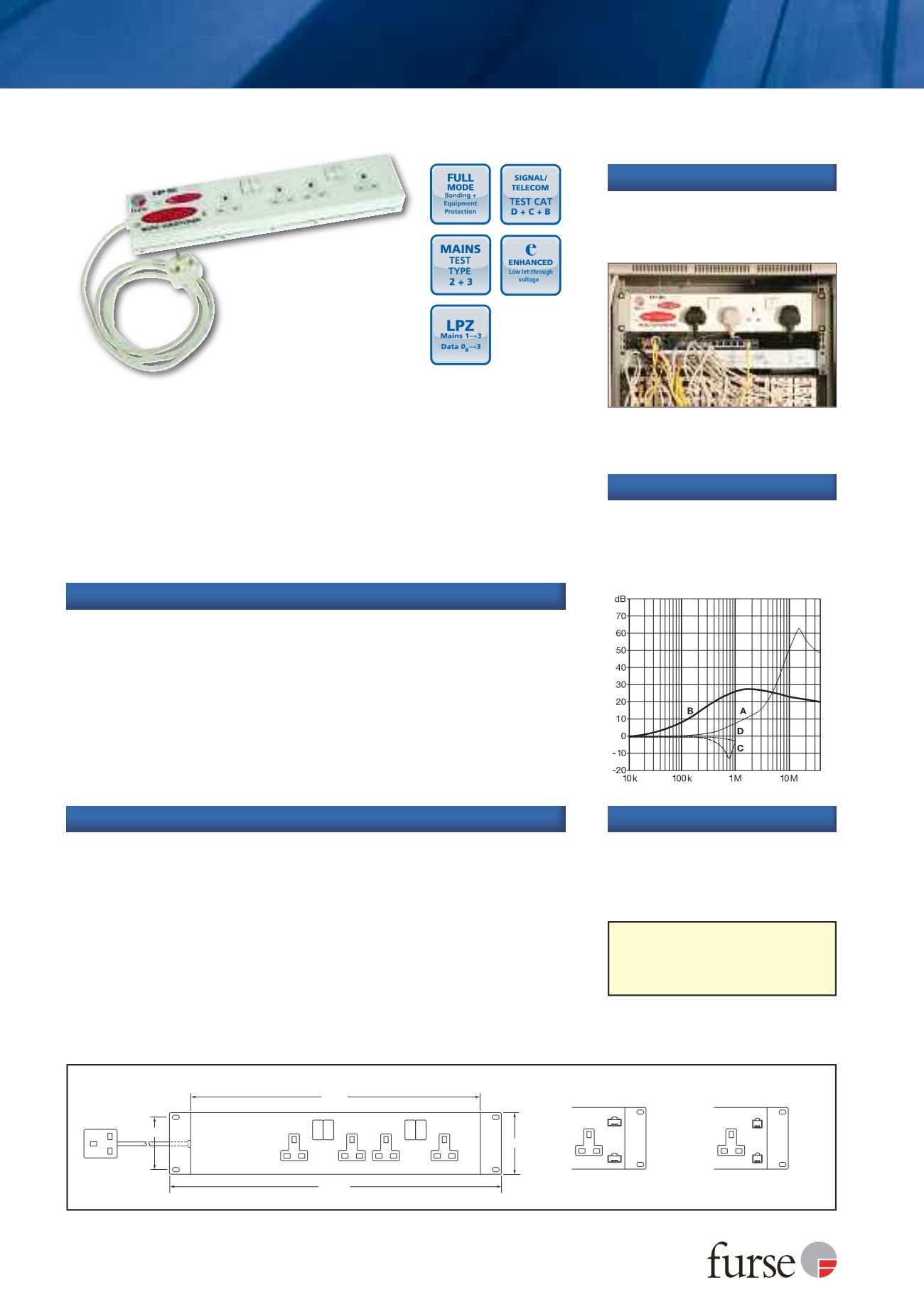

ESP MC Series
TSC-0912 - 09.10.12
Low let-through voltage between all sets of conductors
Three way visual indication of protection status
Protects against radio frequency interference
TN and Cat-5e versions can conveniently protect both mains and
telecom/data lines in one unit
Rugged, heavy duty construction
Bracket kit ESP MC/19BK available for rear or 19” rack mounting
Maintenance free
Features and benefits
Combined Type 2 and 3 tested protector (to BS EN 61643) with
telecom or network protection options. Suitable for use on
220/230/240 Volts supplies. Available with British style (three
square pin) plugs and sockets with double-pole action. For use
at boundaries LPZ 1 through to LPZ 3 to protect sensitive
electronic equipment.
ESP MC/19BK bracket kit can be
used for rear mounting, or
reversed for use in 19” cabinets.
All fixings supplied.
Accessories
Simply plug the ESP MC series into
the mains and your equipment
into the ESP MC.
Installation
Per CISPR 17:
A = 50 Ω/50 Ω sym, B = 50 Ω/50 Ω
asym, C = 0.1 Ω/100 Ω sym,
D = 100 Ω/0.1 Ω sym
RFI performance
ESP MC series can be used to protect all sorts of plug-in equipment,
including hospital laboratory equipment, modems, fax machines and PCs.
Application
For wire-in applications up to 16 amps,
the ESP 16A/BX Series may be more
suitable. For all other supplies, consider
the ESP M1 Series.
ESP MC installed within a network rack,
protecting the externally-fed
network switch
422mm
(asafreestandingunit)
482.6mm
(19inch,whenfittedwithESPMC/19BKbrackets)
76.2mm
LeadLength1.35m
Depth42mm 88mm(2U)
T
EthernetRJ45 connections
7
Telephone RJ11 connections
Dimensions
