IR2 Testing Solutions
Optional Self-Test operation
Self-Test is an option, which is pre-set in the
factory and can be programmed from the
bi-directional IR2-TESTWARE™ handset
If a test is not performed in 12 months an
automatic duration Self-Test will take place. The
‘Self-Test’ interval can be programmed between
2 and 365 days (factory pre-set to 12 months)
Self-Test can be inhibited
Internal timing in the luminaire is synchronised
with the mains frequency for accurate control
LED indicators on the emergency luminaire identify
faults locally. A Self-Test status report can be
downloaded to the bi-directional handset
Comprehensive product range
A full range of exit signs and
luminaires are available with IR2.
Look for the IR2 symbol on individual
product pages.
LED indication
Each luminaire
has a transmitter/
receiver module
fitted with green
and amber LED
indicators. The
LED lit colours
give the
luminaire status.
Normal operation - OK
24 hour recharge needed
Mains failure mode
Fault: battery not charging
Battery not charging & in
24 hr charge period after
mains re-connection
Charging OK, but other
fault present [emergency lamp
or battery capacity / voltage]
Luminaire in test
Key:
Flashing LED

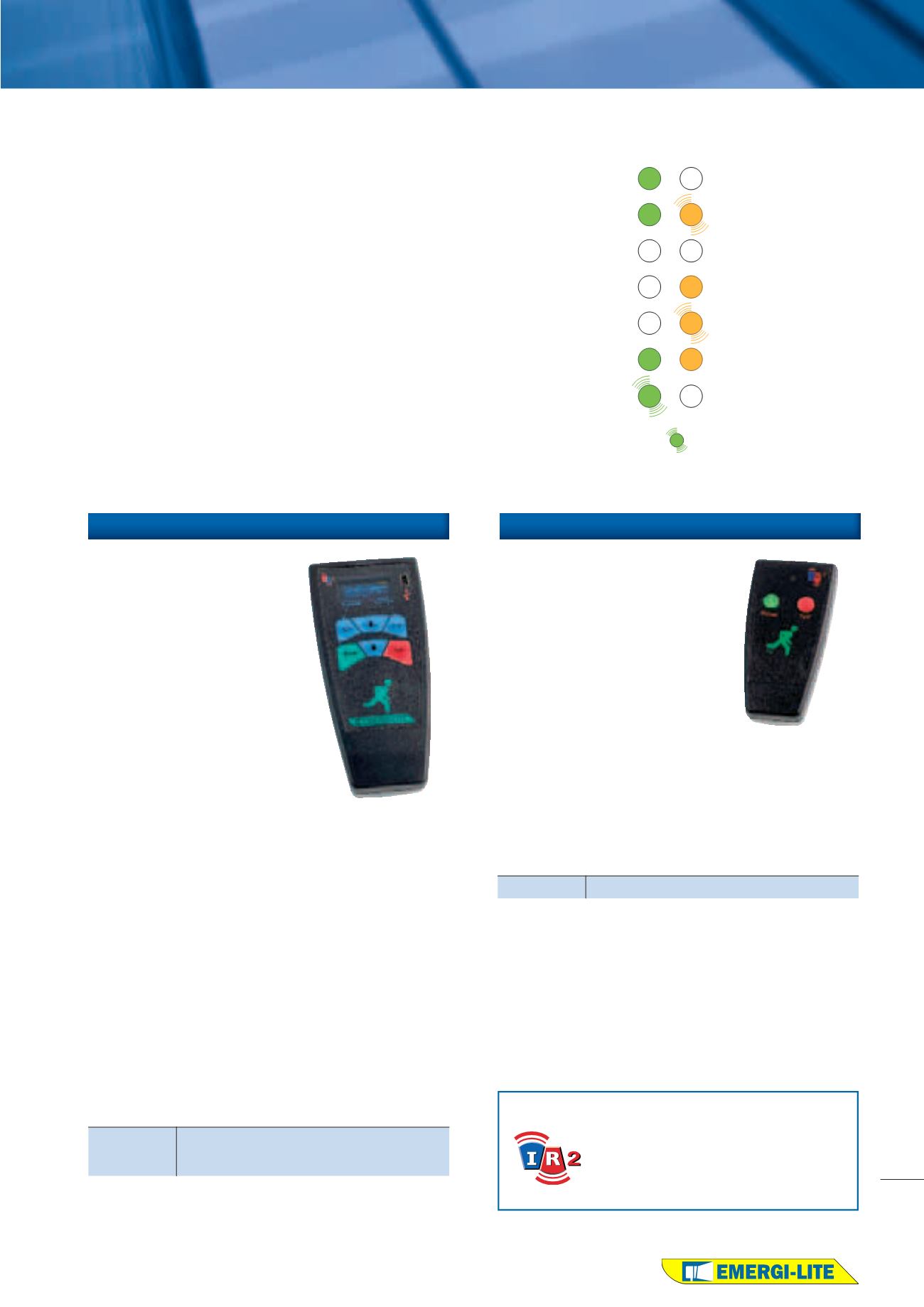

IR2-TESTWARE™ IR2-TX
Bi-directional handset
comprising handset,
PCLINK software and
USB interconnect cable.
For testing, interrogating
and reporting the condition
of IR2 fitted luminaires
OLED (organic LED) screen
4 button menu system with
large control buttons
Backwards compatible with Flashpoint IR
(IR1) systems
Optional password entry protection
The unit gives instant status report of all
emergency luminaires in detail
Onboard memory with storage capacity for
2000 records
Download information into a spreadsheet format
for automated record keeping and assessment
USB socket, USB interconnect cable provided for
PC link
Allows maintained to non-maintained switching
Order Code Description
IR2-TESTWARE™ Intelligent control package; hand-held luminaire
interrogator/tester, PC-LINK software, USB cable
and instructions
Initiates test sequence
(tests for a 3 hour
duration and automatically
resets back to the
normal condition).
Status notified by green
and yellow LED indicators
on the luminaire
Reset the luminaire to normal operation (to test
for brief operation)
Backwards compatible to Flashpoint IR (IR1)
Order Code Description
IR2-TX IR2 test transmitter
