Adaptaflex Product Catalogue |
LIT211GB 0715
2
Non-metallic conduit systems

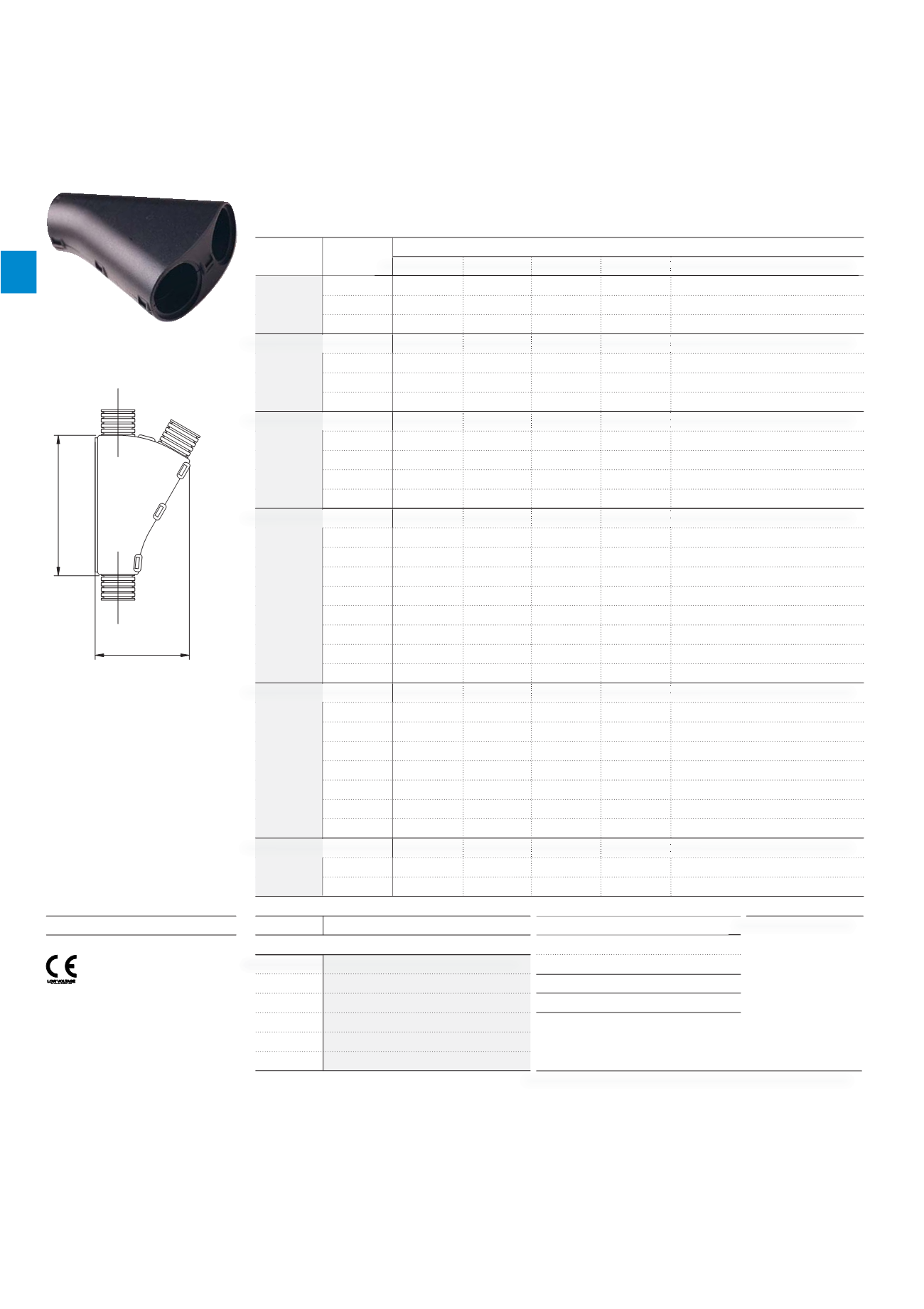

Accessories - Type Y, Hinged ‘Y’ Piece
Type Y
Hinged ‘Y’ Piece
/
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL) Only
Nominal Dimensions / Conduit Size
Part No.
A
B
C
D
E
Y101010/BL 54.6mm
37.1mm
10mm
10mm
10mm
Y101013/BL 54.6mm
37.1mm
10mm
10mm
13mm
Y101210/BL 54.6mm
37.1mm
10mm
12mm
10mm
Y131010/BL 54.6mm
37.1mm
13mm
10mm
10mm
Y131011/BL 54.6mm
37.1mm
13mm
10mm
11mm
Y131310/BL 54.6mm
37.1mm
13mm
13mm
10mm
Y131313/BL 54.6mm
37.1mm
13mm
13mm
13mm
Y161013/BL 54.9mm
39.8mm
16mm
10mm
13mm
Y161310/BL 54.9mm
39.8mm
16mm
13mm
10mm
Y161313/BL 54.9mm
39.8mm
16mm
13mm
13mm
Y161610/BL 54.9mm
39.8mm
16mm
16mm
10mm
Y161613/BL 54.9mm
39.8mm
16mm
16mm
13mm
Y211010/BL 42.8mm
41.0mm
21mm
10mm
10mm
Y211310/BL 42.8mm
41.0mm
21mm
13mm
10mm
Y211313/BL 42.8mm
41.0mm
21mm
13mm
13mm
Y211610/BL 48.2mm
39.8mm
21mm
16mm
10mm
Y211613/BL 48.2mm
39.6mm
21mm
16mm
13mm
Y211616/BL 63.6mm
47.5mm
21mm
16mm
16mm
Y212110/BL 57.9mm
44.9mm
21mm
21mm
10mm
Y212113/BL 57.9mm
44.9mm
21mm
21mm
13mm
Y212116/BL 63.6mm
47.5mm
21mm
21mm
16mm
Y282113/BL 54.0mm
48.8mm
28mm
21mm
13mm
Y282116/BL 54.0mm
48.8mm
28mm
21mm
16mm
Y282121/BL 76.5mm
60.0mm
28mm
21mm
21mm
Y282810/BL 67.3mm
55.9mm
28mm
28mm
10mm
Y282813/BL 67.3mm
55.9mm
28mm
28mm
13mm
Y282816/BL 67.3mm
55.9mm
28mm
28mm
16mm
Y282821/BL 76.5mm
60.0mm
28mm
28mm
21mm
Y282828/BL 90.7mm
67.0mm
28mm
28mm
28mm
Y343416/BL 100.6mm
75.0mm
34mm
34mm
16mm
Y343421/BL 100.6mm
76.0mm
34mm
34mm
21mm
Y343434/BL 100.6mm
82.1mm
34mm
34mm
34mm
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Fitting Characterstics
Snap Fit
Approvals
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / PR / PF
IP40
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Type Y
Hinged ‘Y’ Piece
B
C
A
D
E
10Y
13Y
16Y
21Y
28Y
34Y
