Adaptaflex Product Catalogue |
LIT211GB 0715
3
Metallic conduit systems
Liquid resistant, high strength Type SPLHCB & A - Adaptasteel
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Flexibility & Fatigue Life
Very High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
Approvals
IP Rating
Appropriate Fitting
For use with:
Type SPLB
IP40
N/A
IP65
N/A
IP66
Type SPLB - Type A & B
IP67
Type SPLB - Type A & B
IP68
Type SPLB - Type A & B
IP69K
N/A

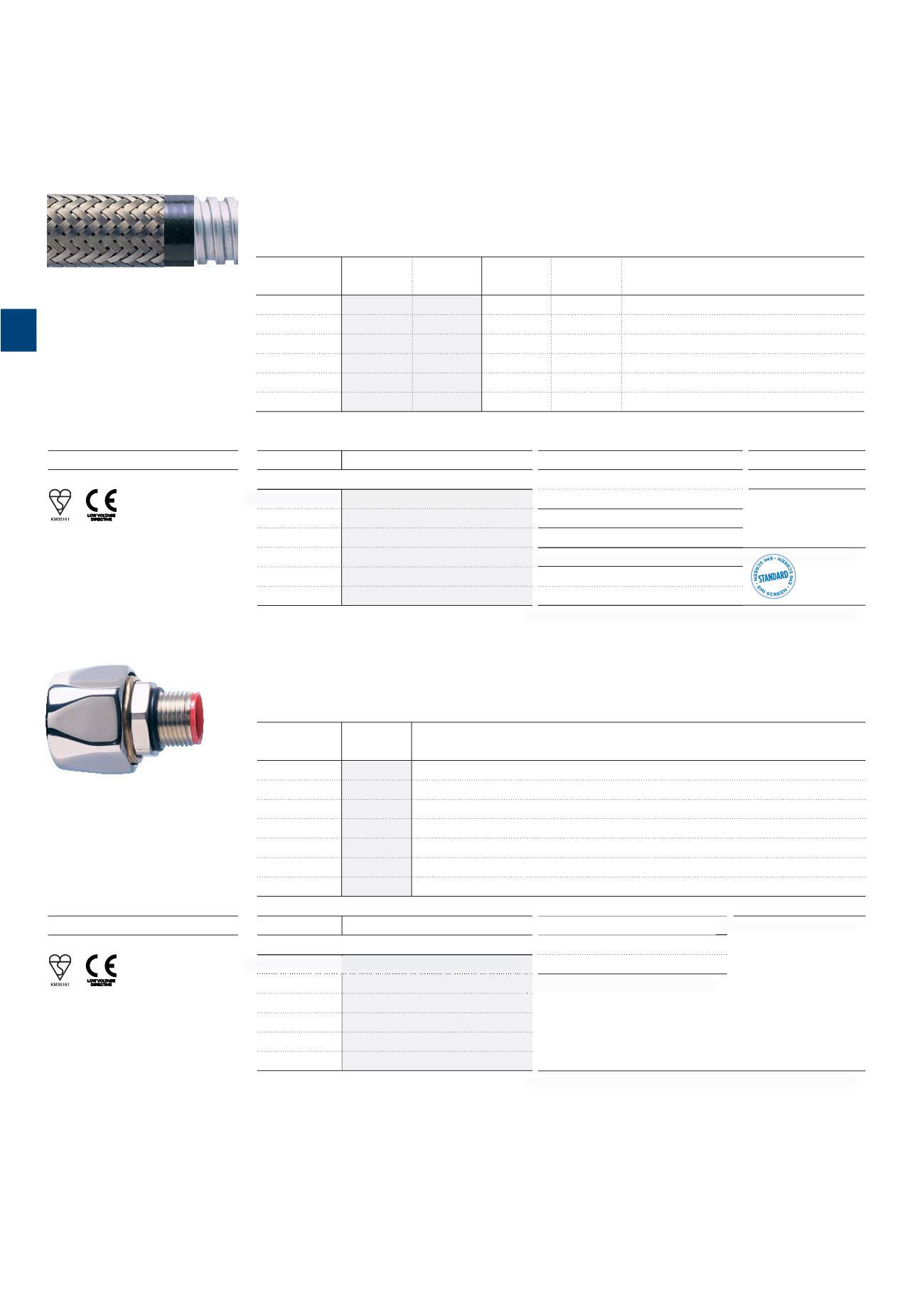

Type SPLHCB - Adaptasteel
Extreme Temperature, Abuse Resistant, Overbraided, Standard EMI Screening, Flexible Conduit
Materials:
Galvanised Steel Conduit, Smooth Thermoplastic Rubber Covering, Stainless Steel 316 Overbraid
Nominal
Outside
Inside
Min. Bend
Reel
Part No.
Conduit Size Diameter
Diameter
Radius
Length
SPLHCB16
16mm
19.8mm
12.5mm
80mm
25m
SPLHCB20
20mm
23.1mm
15.9mm
95mm
25m
SPLHCB25
25mm
28.4mm
21.0mm
115mm
25m
SPLHCB32
32mm
35.1mm
26.7mm
145mm
10m
SPLHCB40
40mm
44.0mm
35.4mm
180mm
10m
SPLHCB50
50mm
56.0mm
40.4mm
240mm
10m
To order quote part number & reel length, e.g. SPLHCB16/25M
Type SPLHCB
Extreme Temperature,
Abuse Resistant, Overbraided,
Standard EMI Screening,
Flexible Conduit
IP Rating
Appropriate Conduit
For use with:
Type SPLHCB
IP40
N/A
IP65
N/A
IP66
Yes
IP67
Yes
IP68
Yes (10 bar 30mins)
IP69K
N/A
Temperature Range
Static Applications: -65ºC to +135ºC
Moving Applications: -45ºC to +150ºC
Approvals
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
Metric
Part No.
Conduit Size Thread
SPLB16/M16/A 16mm
M16
SPLB16/M20/A 16mm
M20
SPLB20/M20/A 20mm
M20
SPLB25/M25/A 25mm
M25
SPLB32/M32/A 32mm
M32
SPLB40/M40/A 40mm
M40
SPLB50/M50/A 50mm
M50
