Zone Controllers

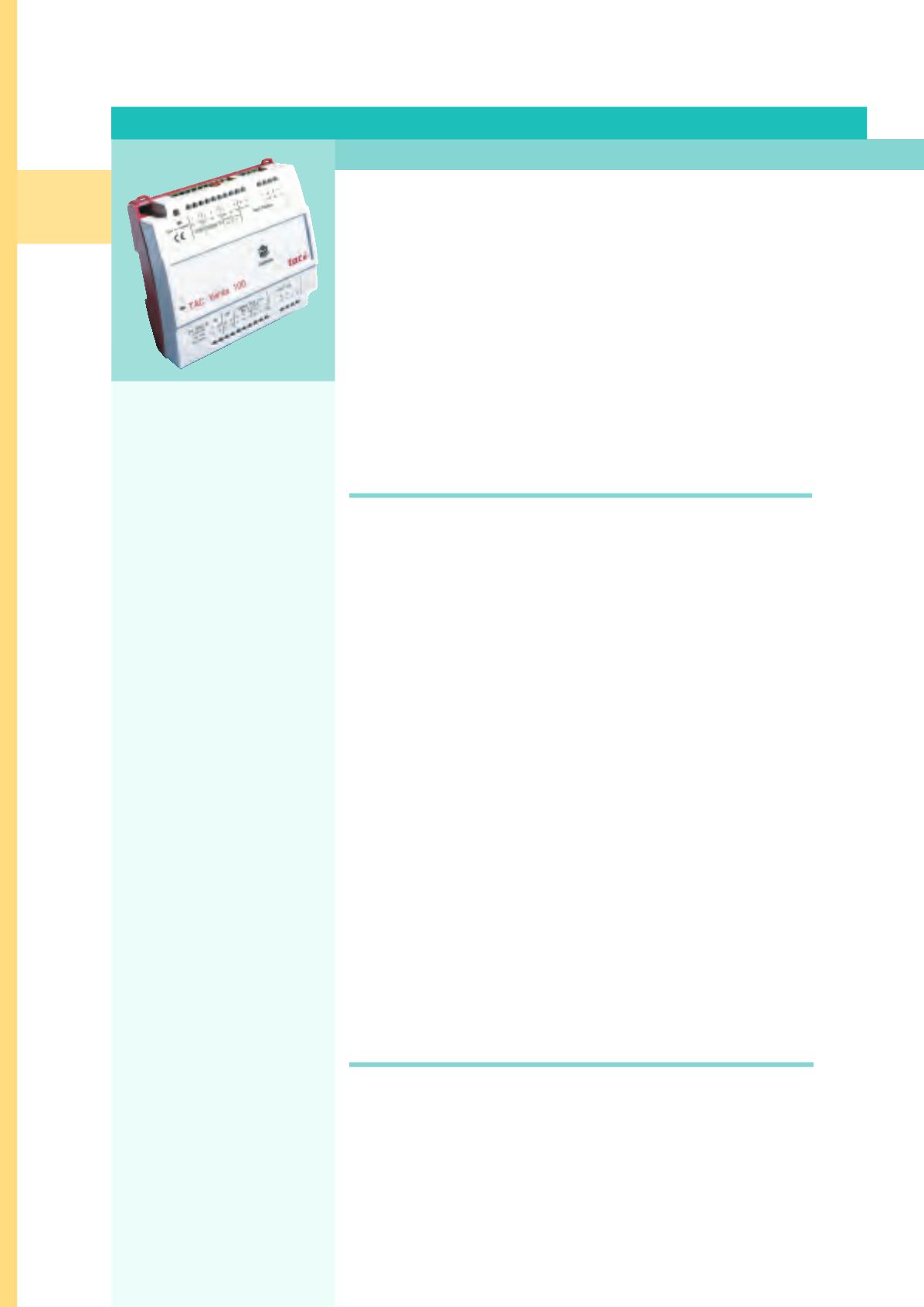

TAC Xenta 110-D
Dual Zone Controller
L
ON
M
ARK
®
certified individual room controllers for cost-effective individual
room solutions of climate control, lighting control, dimming and window
control. Seven L
ON
M
ARK
®
profiles are available for various applications.
Configuring these as master or slave controllers means that zone/group
requirements can be generated, and that they can interact with additional
controllers in the TAC Xenta 100 family. The controller can be operated on
a stand-alone basis or within a L
ON
W
ORKS
®
network. Can be monitored and
parameters can be set centrally via the central system or remotely with the
TAC Xenta Operator Panel.
FUNCTIONAL FEATURES
•
Various applications:
Single-step control with cooling
or heating.
•
Two-step control with cooling
and heating in sequence, two-
point control of the heating and
cooling valves.
•
Light control on/off, dimming
and brightness control with lux
sensor.
•
Window control opening/
closing and window contact,
interlock of the window
contacts with blind stop.
•
Occupancy detection via digital
input or L
ON
W
ORKS
®
network
variable (SNVT).
•
Possibility of combining with
TAC Xenta 101, TAC Xenta
102, TAC Xenta 103 and TAC
Xenta 104 for a wide range of
individual room applications.
•
Operation options via direct
inputs for conventionally
connected switches and
setpoint adjuster or via
L
ON
W
ORKS
®
network variables
from a room control panel or
via the virtual control panel,
TAC Vista ScreenMate, on the
Intranet.
SPECIFICATIONS
Operating voltage . . . . . . . . . . . . 24 V or 230V AC ±20%
Power consumption . . . . . . . . . . . 4 – 80 VA ±10%
Dimensions . . . . . . . . . . . . . . . . . 126 x 122 x 50mm (5” x 4.8” x 2”)
Ambient temperature
Operation . . . . . . . . . . . . . . . . . . . 0°C to +50°C (32°F to 122°F)
Storage . . . . . . . . . . . . . . . . . . . . . –20°C to +50°C (–4°F to 122°F)
Humidity. . . . . . . . . . . . . . . . . . . . max. 90% RH non-condensing
Enclosure rating . . . . . . . . . . . . . . IP 30
Inputs
Setpoint adjuster. . . . . . . . . . . . . . 2 x 10 kohm potentiometer
Zone temperature . . . . . . . . . . . . 2 x thermistor NTC, 1800 ohms at 25ºC
(77ºF)
Bypass, light, occupancy . . . . . . . 3 x digital
Outputs
Dimming . . . . . . . . . . . . . . . . . . . 1 x 0 – 10 V, max 2 mA
Light control . . . . . . . . . . . . . . . . 4 x relay, 250 V 3 A (resistive), 250W
(HF Lamps)
Heating/cooling valve . . . . . . . . . 4 x triac for thermal actuators,
110-D/24 max 0.8 A
110-D/230 max 0.5 A
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0601-0 TAC Xenta 110-D/24 Dual Zone Controller
0-073-0603-0 TAC Xenta 110-D/230 Dual Zone Controller
