Zone Controllers

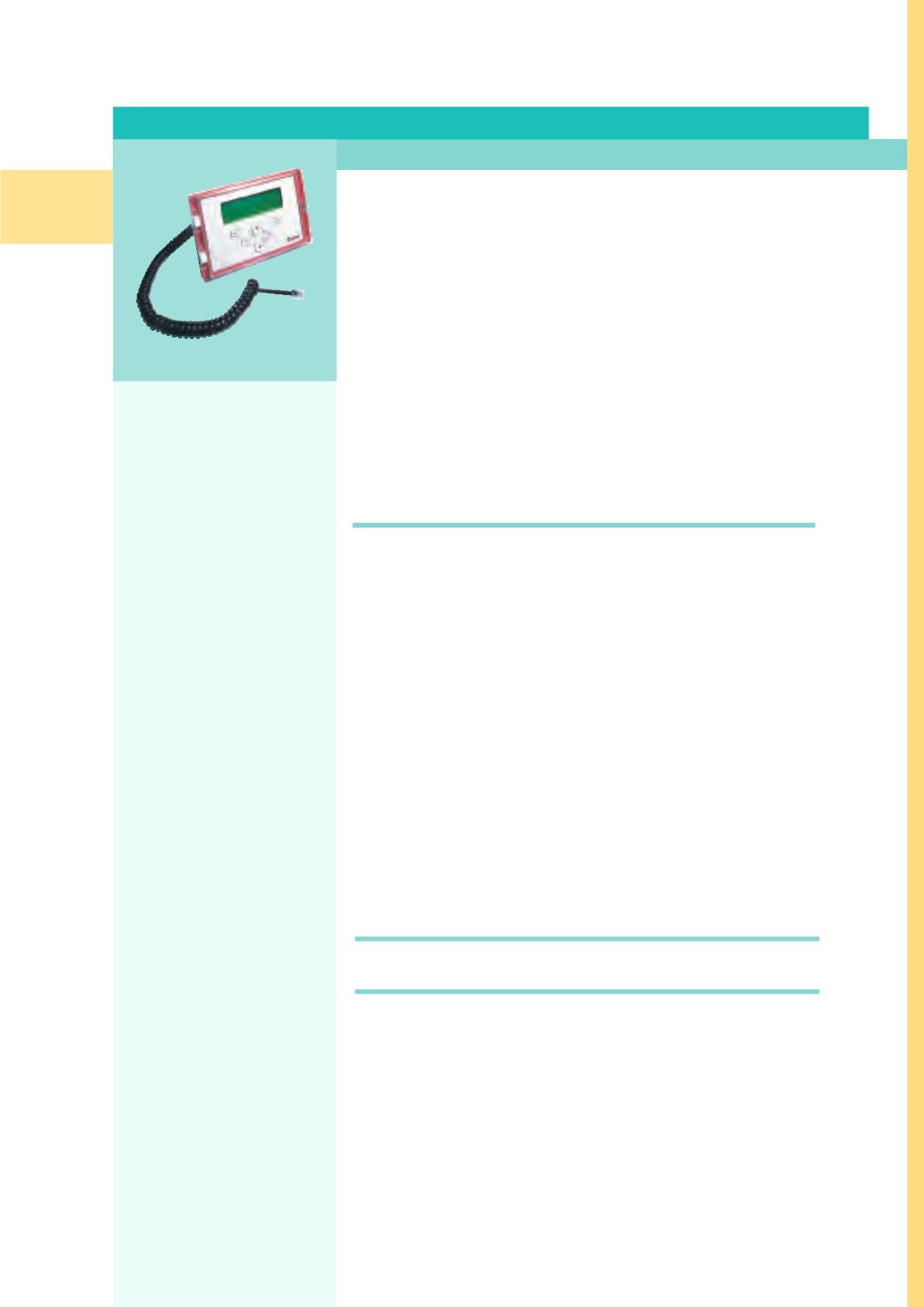

TAC Xenta OP
L
ON
W
ORKS
®
Operator Panel
For convenient local operation of TAC Xenta controllers and individual room
controllers. Input is via 6 control keys. Information is shown on a clear LCD
display. The background lighting of the LCD can be switched off by changing
the relevant parameter. The Operator Panel is connected to the individual
room controller via a wall module and supplied with power via a connecting
cable. Alternatively, a direct connection to the L
ON
W
ORKS
®
network is also
possible. The user has access to all TAC Xenta units connected to the net-
work via one TAC Xenta OP. The Operator Panel allows the current operat-
ing status to be checked and changes to be made to setpoints, limit values,
parameters etc., without connecting to a central system. The modern and
functional design supports a variety of mounting options allowing
mobile deployment.
SPECIFICATIONS
Operating voltage . . . . . . . . . . . 24 V AC/DC from the TAC Xenta or
external
Power consumption . . . . . . . . . . max. 0.5 W
Dimensions. . . . . . . . . . . . . . . . . 144 x 96 x 34mm (4.5” x 3.8” x 1.3”)
Ambient Temperature
Storage. . . . . . . . . . . . . . . . . . . . –20 °C to +50 °C (–4 °F to +122 °F)
Operation . . . . . . . . . . . . . . . . . 0 °C to +50 °C (32 °F to +122 °F)
Humidity . . . . . . . . . . . . . . . . . . max. 90% RH non-condensing
Display . . . . . . . . . . . . . . . . . . . . 4 X 20 characters alpha-numerical,
backlit
Enclosure rating . . . . . . . . . . . . . IP 20 / IP 43
Network communication . . . . . . FTT-10, L
ON
W
ORKS
®
Transmission rate . . . . . . . . . . . . 78 kbit/s
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0907-2 TAC Xenta OP Operator Panel
ACCESSORIES
0-073-0904-0 TAC Xenta OP mounting kit panel
FUNCTIONAL FEATURES
•
Accesses the TAC Xenta net-
work for values, parameters,
alarms and time schedules
•
Supports local characters
•
Access Xenta 100/120 via STR
module
•
Any L
ON
W
ORKS
device can be
connected
•
Silicone buttons
