Zone Controllers

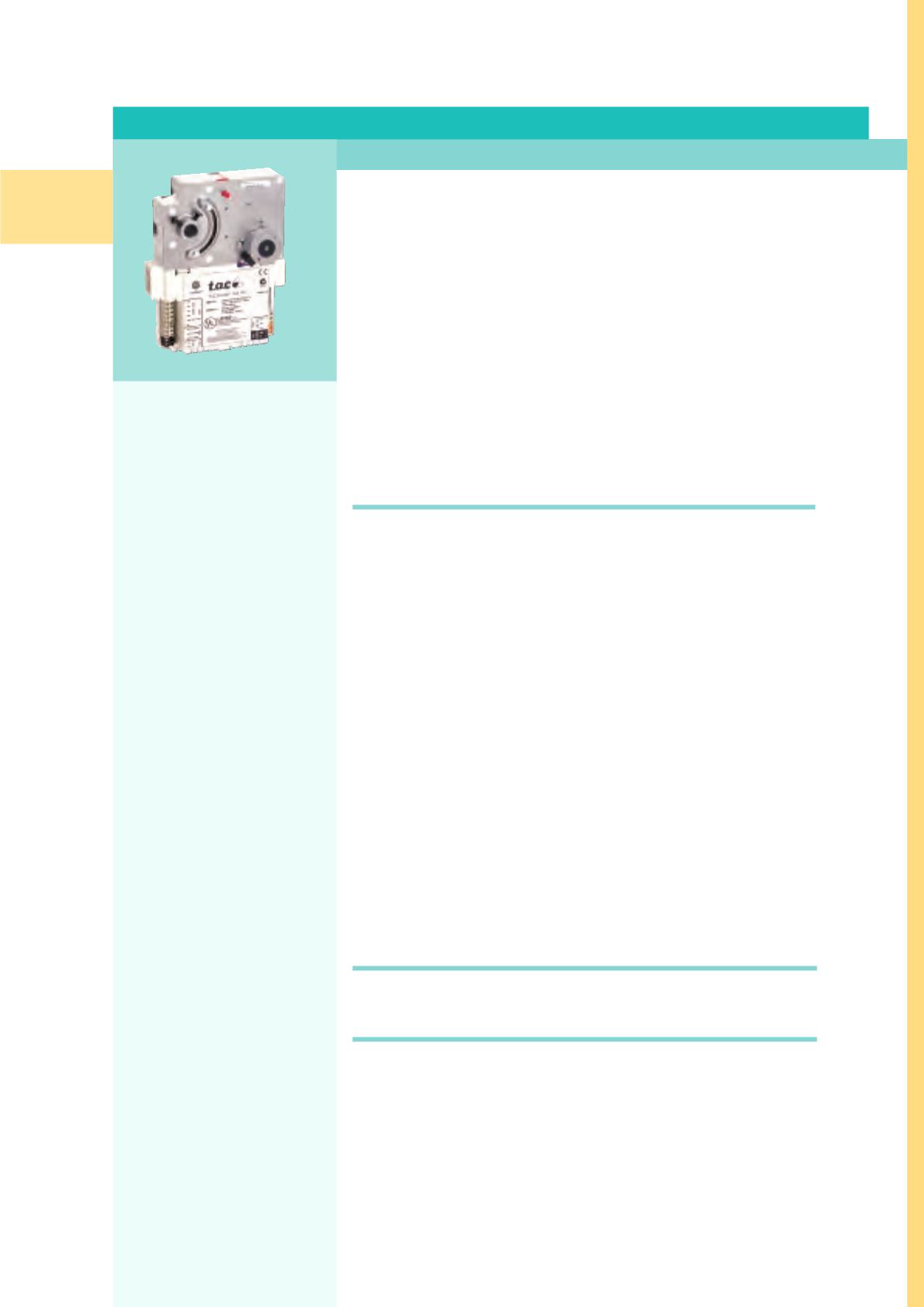

TAC Xenta 102-AX
VAV Controller
with Onboard Actuator and Air Flow Transducer
TAC Xenta 102-AX is a L
ON
M
ARK
®
compliant individual room controller
intended for VAV heating and cooling applications with one or two stages
of reheating. The controller keeps a constant temperature in the zone by
controlling the air flow and heating stages. By using a carbon dioxide sensor,
the air quality can be controlled in the zone. TAC Xenta 102-AX is equipped
with an integrated, static air velocity transducer and a motorized bidirectional
actuator in a single package. The differential pressure air velocity transducer
requires a minimum of maintenance. Thus it is also well suited to be placed
in the zone return air duct.
FUNCTIONAL FEATURES
•
Various applications:
Single-step VAV controller via
internal air flow sensor and
heating in sequence up to 3
stages.
•
Setpoint adjustment via STR
200, 202 or 250 wall modules
or via a L
ON
W
ORKS
®
network
variable.
•
Seven modes of operation:
occupied, standby, bypass,
unoccupied, morning
warm up, purge mode and
emergency pressurization/
depressurization.
•
Air quality based adjustments.
•
Fan control can be enabled/
disabled either in parallel or
serial mode.
•
Alarm monitoring high or
low room temperature, open
window, temperature sensor
error, etc.
•
Occupancy sensor, CO
2
measurement input.
SPECIFICATIONS
Operating voltage . . . . . . . . 24 V AC ±20%
Power consumption . . . . . . . 8 VA
Dimensions. . . . . . . . . . . . . . 197 x 159 x 63mm (7.7” x 6.3” x 2.5”)
Ambient temperature
Operation . . . . . . . . . . . . . . 0°C to +50°C (32°F to 122°F)
Storage. . . . . . . . . . . . . . . . . –20°C to +50°C (–4°F to 122°F)
Humidity . . . . . . . . . . . . . . . max. 90% RH non-condensing
Enclosure rating . . . . . . . . . . IP 30
Inputs and outputs
Occupancy sensor . . . . . . . . Digital input
Reheater. . . . . . . . . . . . . . . . Triac 24 V AC, voltage sourcing, max. 0.75 A
Torque . . . . . . . . . . . . . . . . . 6 Nm
Stroke. . . . . . . . . . . . . . . . . . 0 – 90 degrees
Timing . . . . . . . . . . . . . . . . . 2.4 sec/degree rotation (50 Hz)
Temperature. . . . . . . . . . . . . Thermistor input 10k ohm NTC
Wall module. . . . . . . . . . . . . As selected
For further specifications, see technical data sheet.
DESCRIPTION
0-073-0540-1 TAC Xenta 102-AX VAV Controller with Actuator and
Air Flow Transducer
ACCESSORIES
0-046-300-0 STR200 Wall Module
0-046-301-0 STR200-W Wall Module (White)
0-046-320-0 STR202 Wall Module
0-046-330-0 STR250 Wall Module
