Schneider Electric Modicon Premium Automation Platform, May 2012

374 / 413

8/24

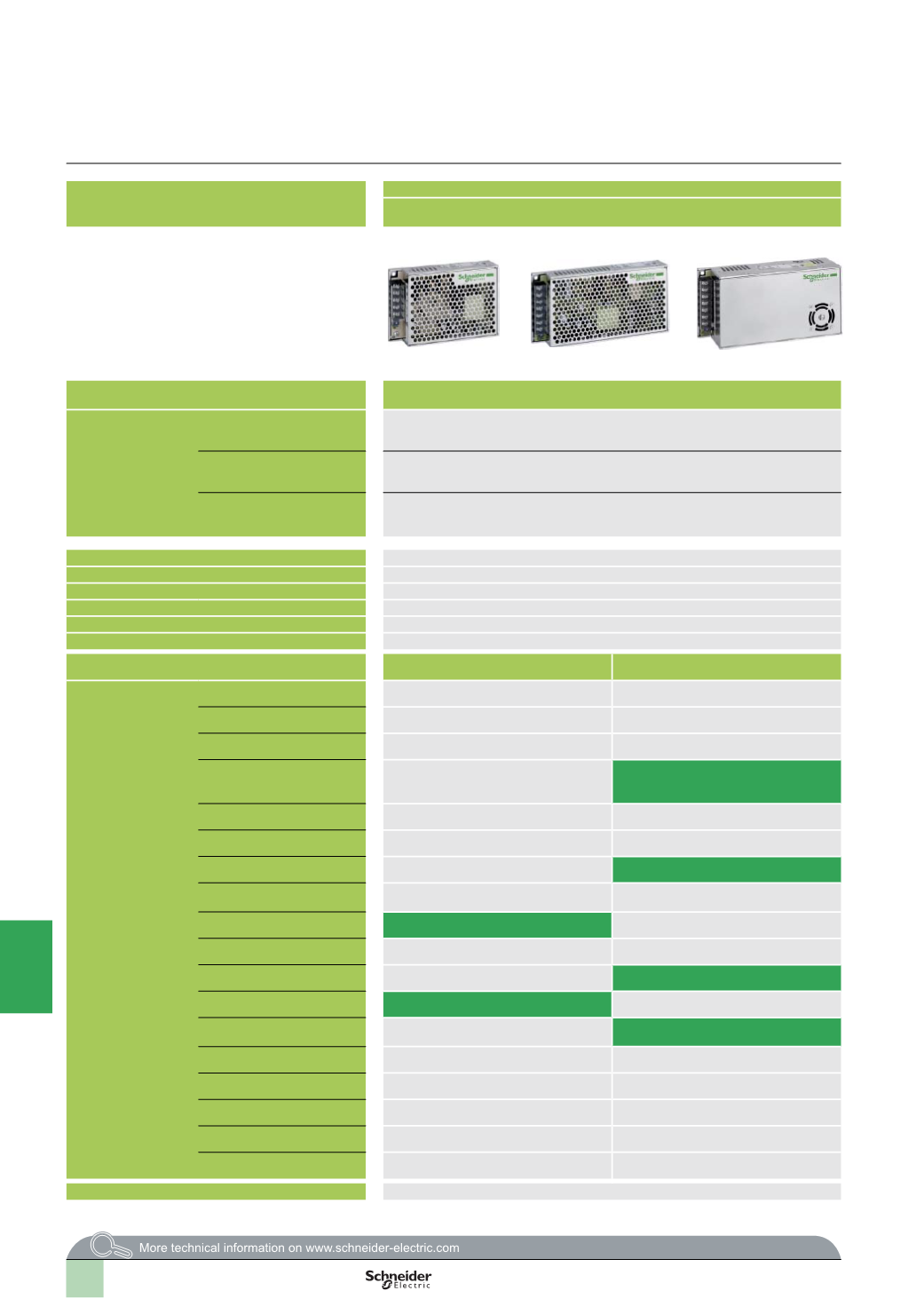

Power supplies Regulated switch mode
ABL 1REM/1RPM: 60 to 240 W - Mounting on panel
Input voltage 100...240 V a
120...370 V c
Connection to
world-wide line supplies
United States
- 120 V (in phase-to-neutral)
- 240 V (in phase-to-phase)
Single-phase (N-L1) or 2-phase (L1-L2) connection
Europe
- 230 V (in phase-to-neutral)
- 400 V (in phase-to-phase)
Single-phase (N-L1)
–
United States
- 277 V (in phase-to-neutral)
- 480 V (in phase-to-phase)
Single-phase (N-L1)
–
IEC/EN 61000-3-2 conformity Yes for ABL 1RP, not applicable for ABL1REM24025/12050
Protection against undervoltage –
Protection against overloads and short-circuits Yes, voltage detection. Automatic restart on elimination on the fault
Diagnostic relay –
Compatibility with function modules –
Power reserve (Boost) No
Output voltage 12 V c 24 V c
Output current 0.5 A
1 A
2 A
2.5 A ABL 1REM24025
3 A
4 A
4.2 A ABL 1R pM24042
4.8 A
5 A ABL 1REM12050
6 A
6.2 A ABL 1R pM24062
8.3 A ABL 1RPM12083
10 A ABL 1R pM24100
15 A
20 A
30 A
40 A
60 A
Pages Please consult our website
Power supplies and transformers
Phaseo
Regulated switch mode power supplies
Rectified power supplies
Selection guide
