Connection interfaces
Modicon Telefast ABE 7 pre-wired system
Cordsets for Modicon Premium platform

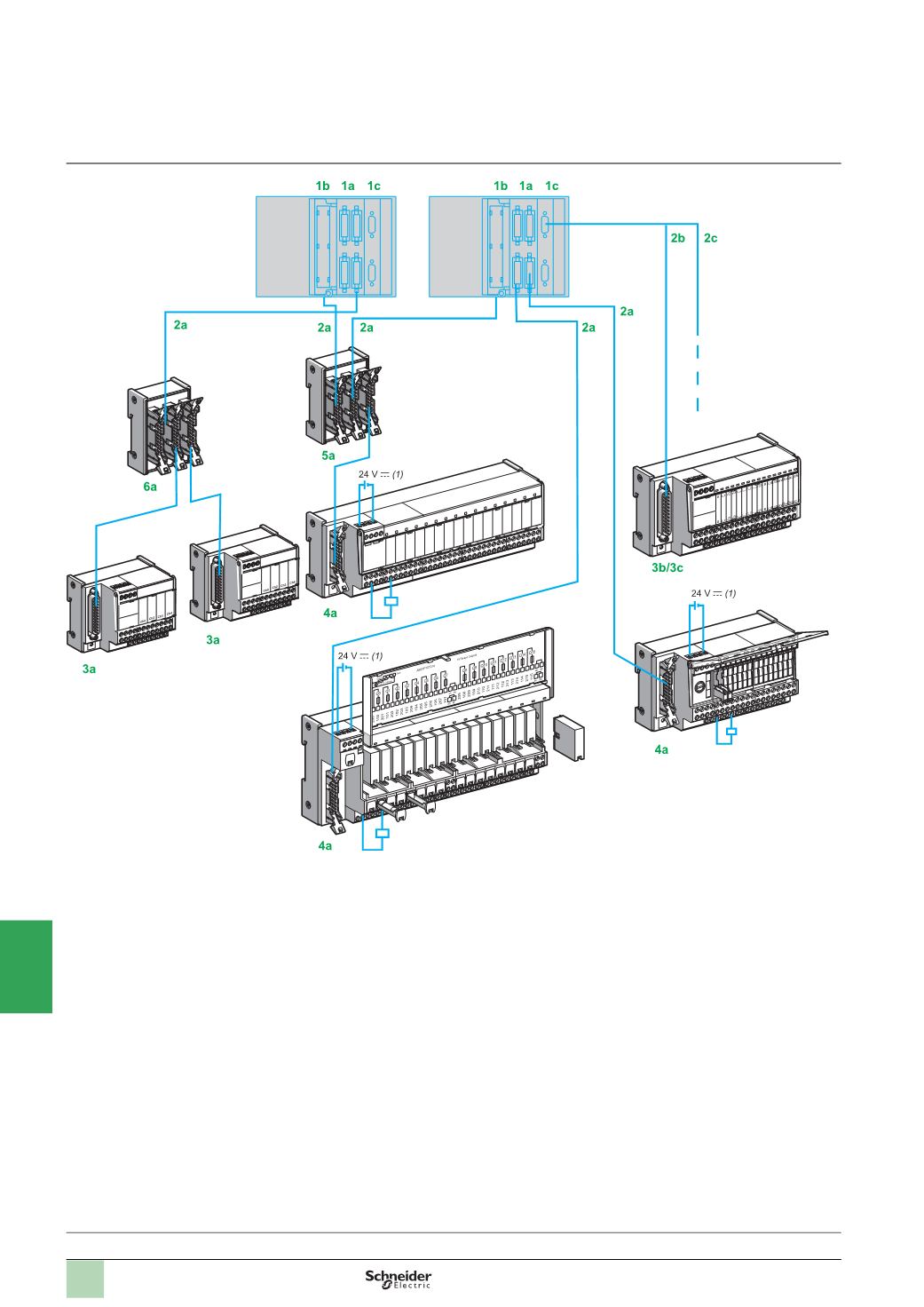

Presentation
1
a
Discrete I/O modules with HE 10 connectors.
1
b
Analog I/O modules with 25-way SUB-D connectors.
1
c
Application-specific modules with screw terminals.
2
a
A single type of cable with 20-way HE 10 connectors, for 8, 12 or 16-channel modularity. The HE 10 connectors can be moulded,
TSX CDP
ppp
(
AWG 22) or insulation piercing,
ABF H20H
ppp
(
AWG 28).
These cordsets are available in 0.5, 1, 2, 3 and 5 m lengths. AWG 28 (0.08 mm
2
)
allows input and output sub-bases rated 100 mA to be
connected directly, as well as sub-bases with relays.
Adaptor
ABE 7ACC02
allows connection of sub-bases with 8-channel modularity.
2
b
All analog signals are connected with a pre-wired cable
TSX CAP030
/
100
with 25-way SUB-D connectors, guaranteeing shielding continuity.
2
c
Cable
TSX CPP
p
02
3
a
8-
channel Modicon Telefast ABE 7 sub-bases.
3
b
Sub-bases dedicated to counter and analog channels:
-
ABE 7CPA02
for connecting current, voltage or PT100 inputs on a screw terminal block
-
ABE 7CPA03
with 4-20 mA sensor loop power supply and with 25 mA/channel limiter
-
ABE 7CPA21
for connecting output modules with 4 analog channels on a screw terminal block
-
ABE 7CPA31
with the 4-20 mA sensor loop isolated power supply for 8 input channels isolated from one another
-
ABE 7CPA11
for connecting an absolute encoder with parallel outputs
-
ABE 7CPA12
for connecting 16 thermocouple probes
3
c
Sub-base
ABE 7CPA13
dedicated to the safety channels.
4
a
12
or 16-channel Modicon Telefast ABE 7 sub-bases.
5
a
Splitter sub-bases for connecting discrete I/O in parallel from a Modicon Telefast ABE 7 sub-base on 2 different PLCs:
-
ABE 7ACC10
for output redundancy
-
ABE 7ACC11
for input redundancy
6
a
Sub-base
ABE 7CPA01
dedicated to connecting axis control and counter inputs on a terminal block.
(1)
Connection of the 24 V
c
power supply is only possible using Telefast sub-bases. The 0 V
c
connections must be equipotential.
