Framework, W = 800, D = 400
08407
See page C-12
Front plate for vertical NS630b/
1600
03690
See pageA-14
Framework, W = 300, D = 400
08403
See page C-12
Connection for fixed NS630b/
1250, 4P
04486
See pageA-14
Side panel, D = 400
08750
See page C-15
Connection for horizontal
NS250
04424
See pageA-22
Rear panel, W = 800
08738
See page C-15
Connection transfer assembly
for NS250
04426
See pageA-22
Rear panel, W = 300
08733
See page C-15
Polypact for 4P fixed NS250
devices with toggles
04404
See pageA-23
Roof, W = 800, D = 400
08438
See page C-15
Powerclip busbars, 250 A, 4P,
L = 1000
04122
See page B-41
Roof, W = 300, D = 400
08433
See page C-15
200 AMulticlip, 4P
04014
See page B-51
IP30 gland plate, W = 800,
D = 400
08497
See page C-18
80 AMulticlip, 4P
04004
See page B-50
IP30 gland plate, W = 300,
D = 400
08493
See page C-18
12 horizontal cable straps
04239
See page B-69
Hinged front plate support
frame
08566
See page C-12
4 covers for horizontal cable
straps
04243
See page B-67
Transparent door, W = 800
08538
See page C-14
4 horizontal trunking sections,
60 x 30
04257
See page B-68
Plain door, W = 300
08513
See page C-14
1000 A Linergy busbars
04504
See page B-10
Mounting plate for vertical fixed
NS630b/1600
03482
See pageA-14
Linergy busbar supports
04651
See page B-11
PD391303
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
26

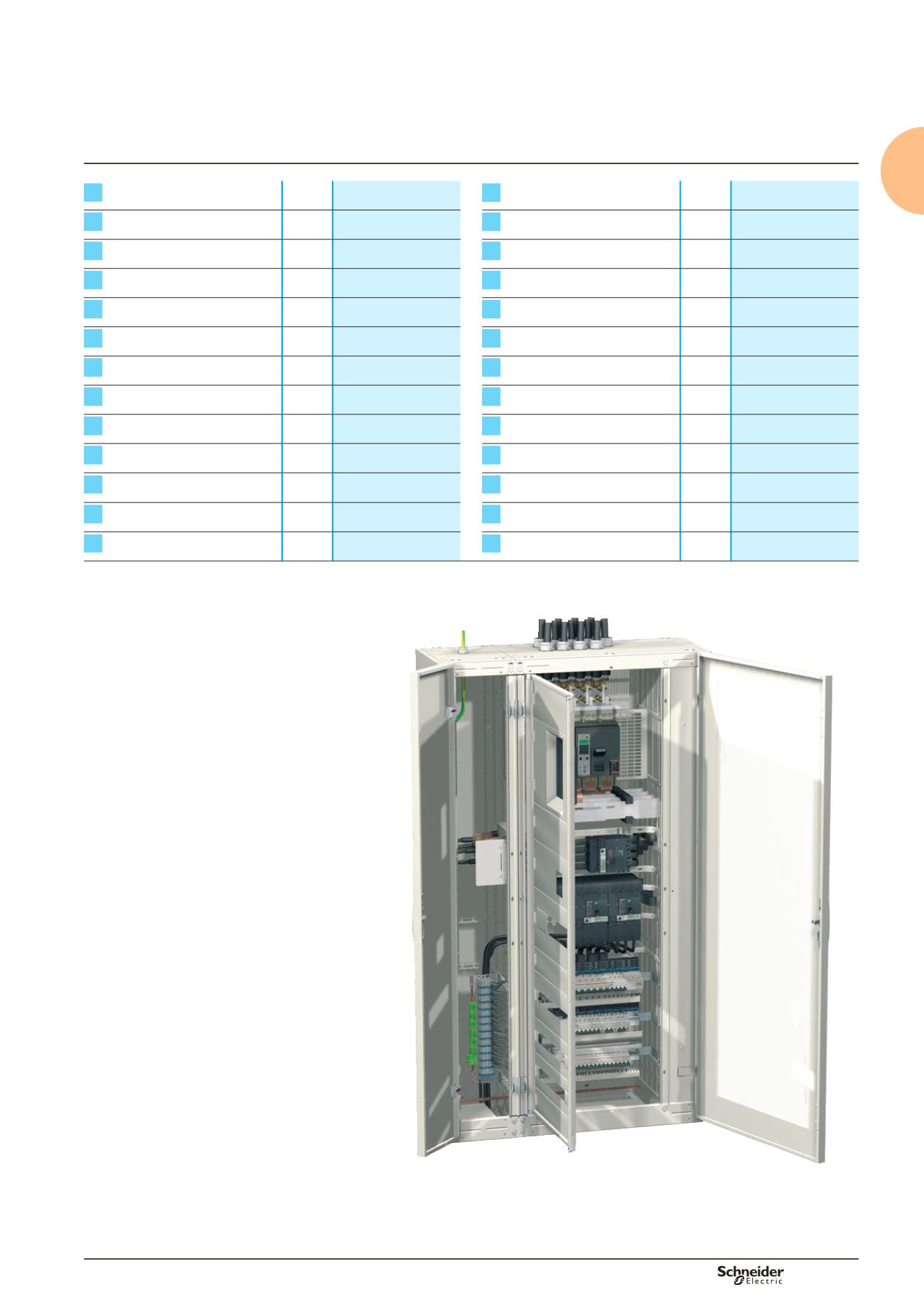

Typical configuration with
catalogue numbers
Determining cat. no. and
configuration assistance
