Presentation
IP30/31/55 cubicles
Applications:
indoor cubicles for main or subdistribution low-voltage switchboards for
commercial and industrial applications
supplied in kit form, can be combined side-by-side and back-to-back
rated operational current: 3200 A
degree of protection:
IP30: with IP30 cover panels including a door or a cover frame
IP31: with IP30 cover panels including a door + gasket
IP55: with IP55 cover panels
degree of protection against mechanical impacts:
IK
07 with cover frame
IK
08 (with IP30 door)
IK10 with IP55 door
framework dimensions:
four widths:
W = 300:cable compartment
W = 400:cable compartment or device compartment
W = 650:device compartment or cable compartment
W = 800:device compartment with busbar compartment
or cable compartment
two depths: 400, 600 mm
height: 2000 mm.
b
v
v
b
b
v
v
v
b
v
v
v
b
v
-
-
-
-
v
v

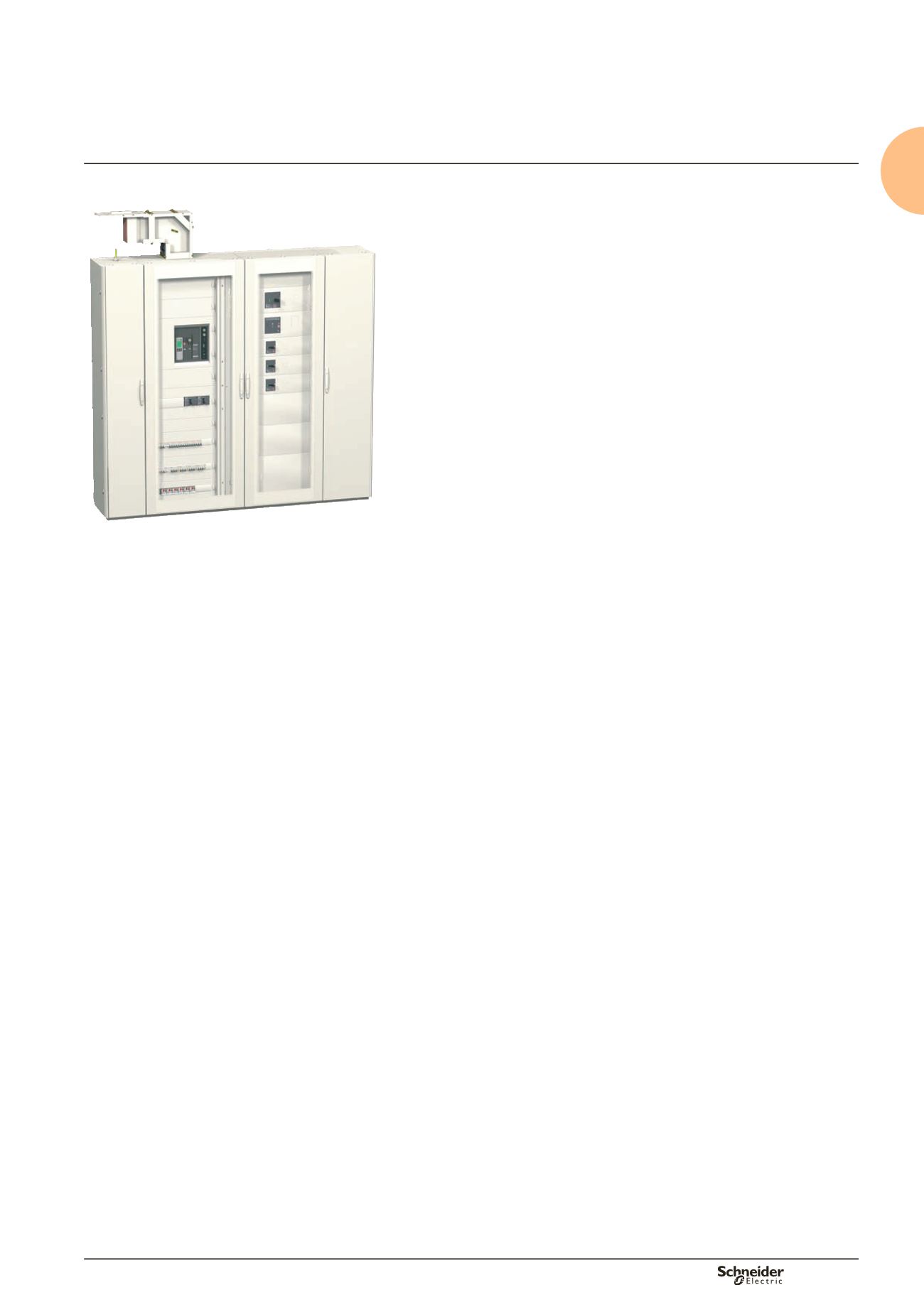

PD390180
Prisma Plus
electrical switchboards
