Distribution
Vertical PE conductor
Linergy L = 1670
The conductor is generally installed in the cable compartment.
A Linergy bar is secured to the framework using three supports.
Selection
DD381183
Icw
(kA rms / 1 s)
Permissible current
(A)
Cat. no.
for bars
y
40
630
04502
> 40
800
04503
Support selection
Set of three supports for a vertical PE (supplied with PE marking)
04657
Linergy connection hardware
Composition of set:
Set including 20 M8 bolts (L = 25 mm) + 20 nuts + 20 contact washers for connection
to cable lugs or flexible bars.
Cat. no. selection

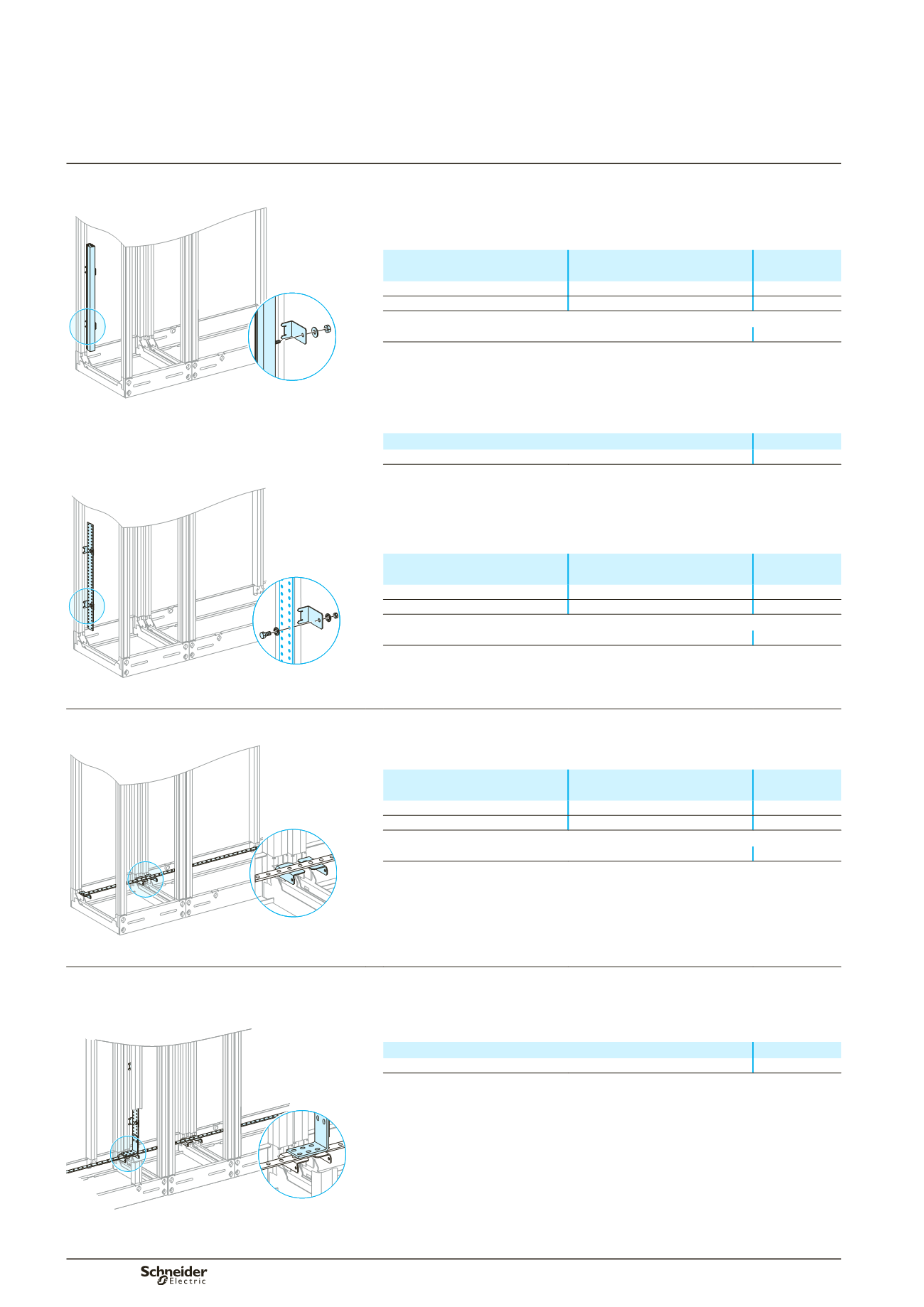

Mounting of a vertical PE (Linergy).
Designation
Cat. no.
20 bolts for lug connec ion to Linergy busbars
04766
DD381182
Flat bar L = 1675
The conductor is generally installed in the cable compartment.
A flat bar is secured to the framework using three supports.
Selection
Icw
(kA rms / 1 s)
Selection
(mm)
Cat. no.
for bars
y
40
25 x 5
04512
> 40
50 x 5
04515
Support selection
Set of three supports for a vertical PE (supplied with PE marking)
04657
Mounting of a vertical PE (flat bar).
Horizontal PE conductor
A flat bar is mounted at the top or bottom of a switchboard (contrary to horizontal
busbars) using supports.
Selection
DD381184
Icw
(kA rms / 1 s)
Selection
(mm)
Cat. no.
for bars
y
40
25 x 5
04512
> 40
50 x 5
04515
Support selection
Set of two supports for a horizontal PE
04667
Mounting of a horizontal PE (flat bar).
Connection between PE
conductors
A copper connection plate can be used to connect:
a vertical PE bar to a horizontal PE bar
two horizontal PE bars.
Cat. no. selection
b
b
DD381158
Designation
Cat. no.
Set of two connection plates for horizontal/vertical PE bars
04672
Connection between horizontal PE bars or horizontal/vertical
PE bars.
PE conductor
Secondary distribution
