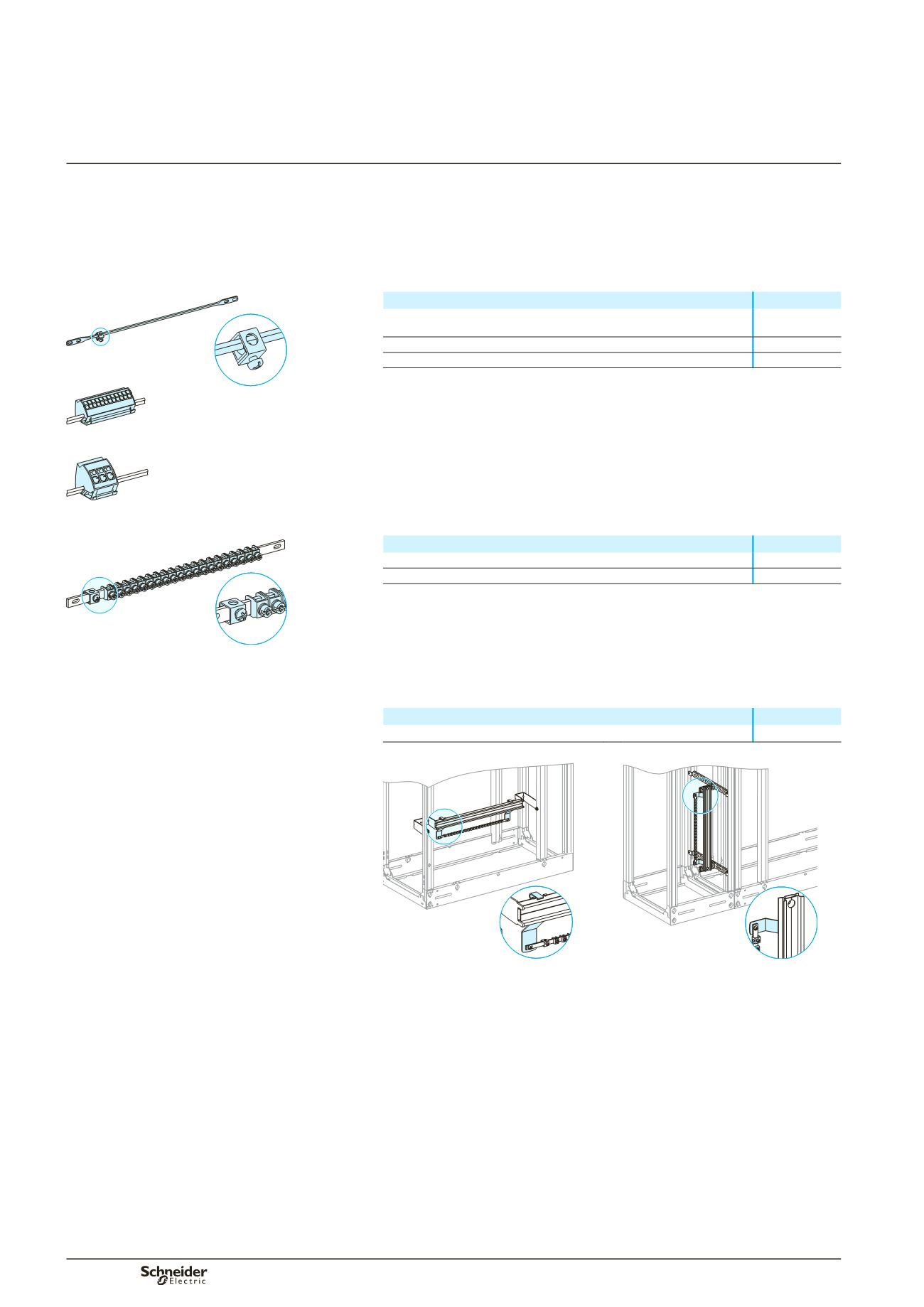

Earth bar
Presentation
The earth bar can be:
a bare earth bar, 12 x 3 mm with 330 mm of connection space, equipped with a
35 mm² terminal and on which earth blocks with spring terminals can be clipped
an earth bar (200 or 450 mm long), equipped with a 35 mm² terminal and clamps
with captive screws.
Earth bar with spring terminals
b
b
DD381560
Designation
Cat. no.
Bare earth bar, 12 x 3 mm with 330 mm of connection space, equipped with
a 35 mm² tunnel terminal (for earth blocks with spring terminals)
04201
4 earth blocks with 12 x 4 mm² spring terminals (L = 75 mm)
04214
4 earth blocks with 3 x 16 mm² spring terminals (L = 37 mm)
04215
04215.
Earth bar with clamps
DD381516
Designation
Cat. no.
Ear h bar with 40 clamps + one 35 mm² terminal (L = 450 mm)
04200
2 earth bars with 20 clamps + one 35 mm² terminal (L = 200 mm)
04202
04200.
Installation
The earth bar is mounted on two supports that clip onto the rear of a modular rail
installed horizontally in the device compartment or vertically in the cable
compartment.
Designation
Cat. no.
2 supports for earth bar on modular rail
04205
DD381517
DD381518
Earth bar mounted on rear of modular rail using supports (04205).
04214.
04201.
