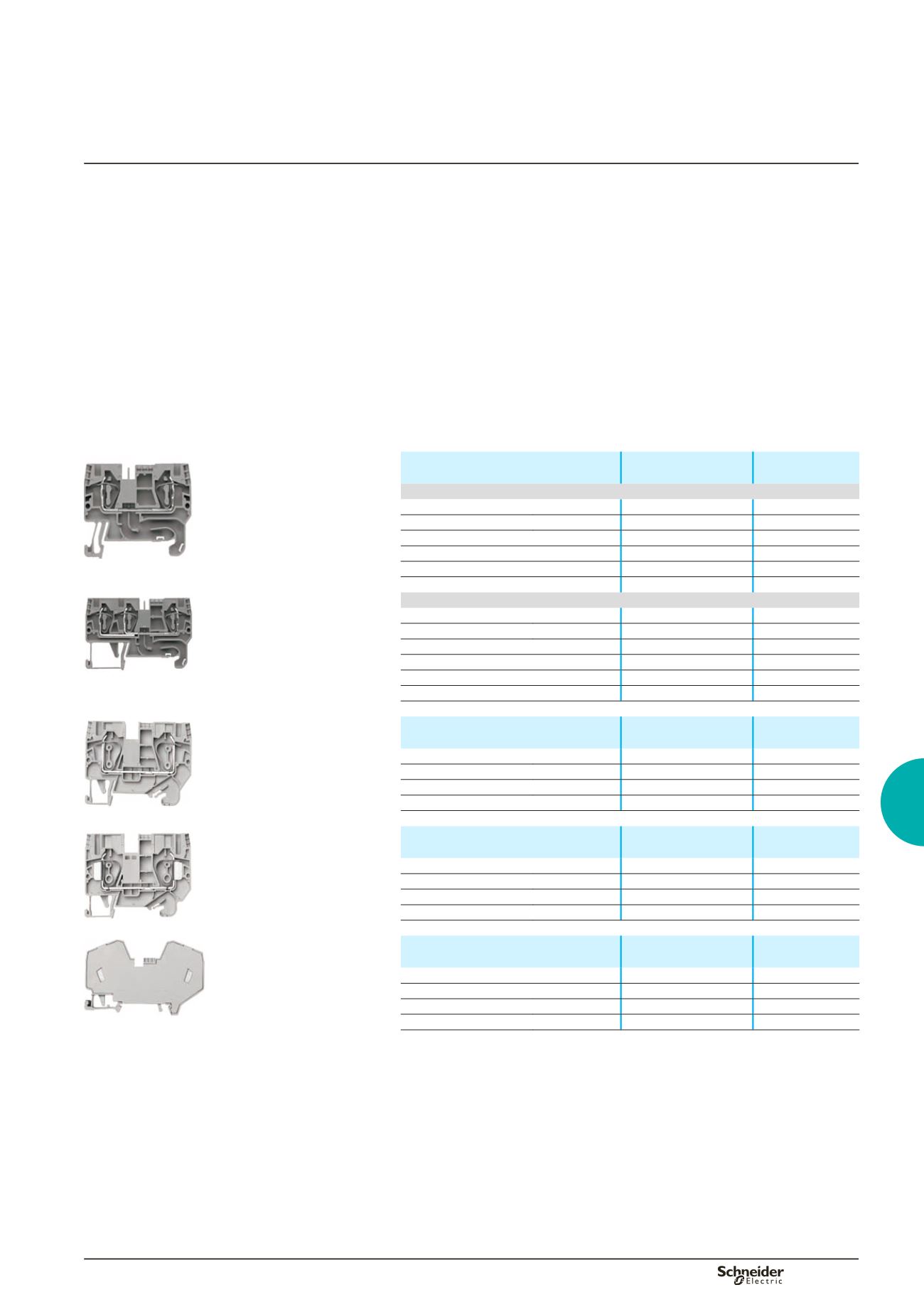

197 / 356
B-59
Distribution
Terminal blocks
Terminal blocks for 4 to 16
v
cables, flex ble or rigid, without a metal ferrule.
connection to spring terminals, no screws
contact pressure automatically adapts to the size of the conductor
only one cable can be inserted in a spring terminal
two versions:
4 - 6 - 10 - 16
v
: one incomer and one outgoer for cables
4
v
: one incomer and two outgoers for cables
three colours: grey for phases, blue for neutral and green/yellow for earth
mounting by clipping onto a modular rail
rated insulation level Ui = 800 V
rated impulse withstand voltage Uimp = 8 kV.
Advantages
the quality of the connection does not depend on the operator and remains stable
over time without maintenance
contacts are insensitive to vibrations and thermal variations
less expensive to apply
permits a frontal connection.
b
b
b
b
v
v
b
b
b
b
b
b
b
b
DD383818
Terminal blocks for 4
v
cables
6 mm wide
Number per set
Cat. no.
1 incomer, 1 outgoer
Grey block
2 x 4
v
100
AB1 RRN435U2GR
Blue block
2 x 4
v
100
AB1 RRN435U2BL
Green/yellow block
2 x 4
v
100
AB1 RRNTP435U2
Partition
10
AB1 RRNTPAC442
Grey end plate
10
AB1 RRNAC443GR
Blue end plate
10
AB1 RRNAC443BL
DD383819
1 incomer, 2 outgoers
Grey block
3 x 4
v
100
AB1 RRN435U3GR
Blue block
3 x 4
v
100
AB1 RRN435U3BL
Partition
10
AB1 RRNTPAC443
Commoning link
2 pole
10
AB1 RRAL42
Grey end plate
10
AB1 RRNAC443GR
Blue end plate
10
AB1 RRNAC443BL
DD383820
Terminal blocks for 6
v
cables
8 mm wide
Number per set
Cat. no.
Grey block
2 x 6
v
100
AB1 RRN635U2GR
Blue block
2 x 6
v
100
AB1 RRN635U2BL
Green/yellow block
2 x 6
v
100
AB1 RRNTP635U2
Commoning link
10
AB1 RRNAL62
DD383821
Terminal blocks for 10
v
cables
10 mm wide
Number per set
Cat. no.
Grey block
2 x 10
v
50
AB1 RRN1035U2GR
Blue block
2 x 10
v
50
AB1 RRN1035U2BL
Green/yellow block
2 x 10
v
50
AB1 RRNTP1035U2
Commoning link
10
AB1 RRAL102
DD383822
Terminal blocks for 16
v
cables
12 mm wide
Number per set
Cat. no.
Grey block
2 x 16
v
50
AB1 RRN1635U2GR
Blue block
2 x 16
v
50
AB1 RRN1635U2BL
Green/yellow block
2 x 16
v
50
AB1 RRNTP1635U2
Commoning link
50
AB1 RRAL162
Terminal blocks
Spring technology
Secondary distribution
