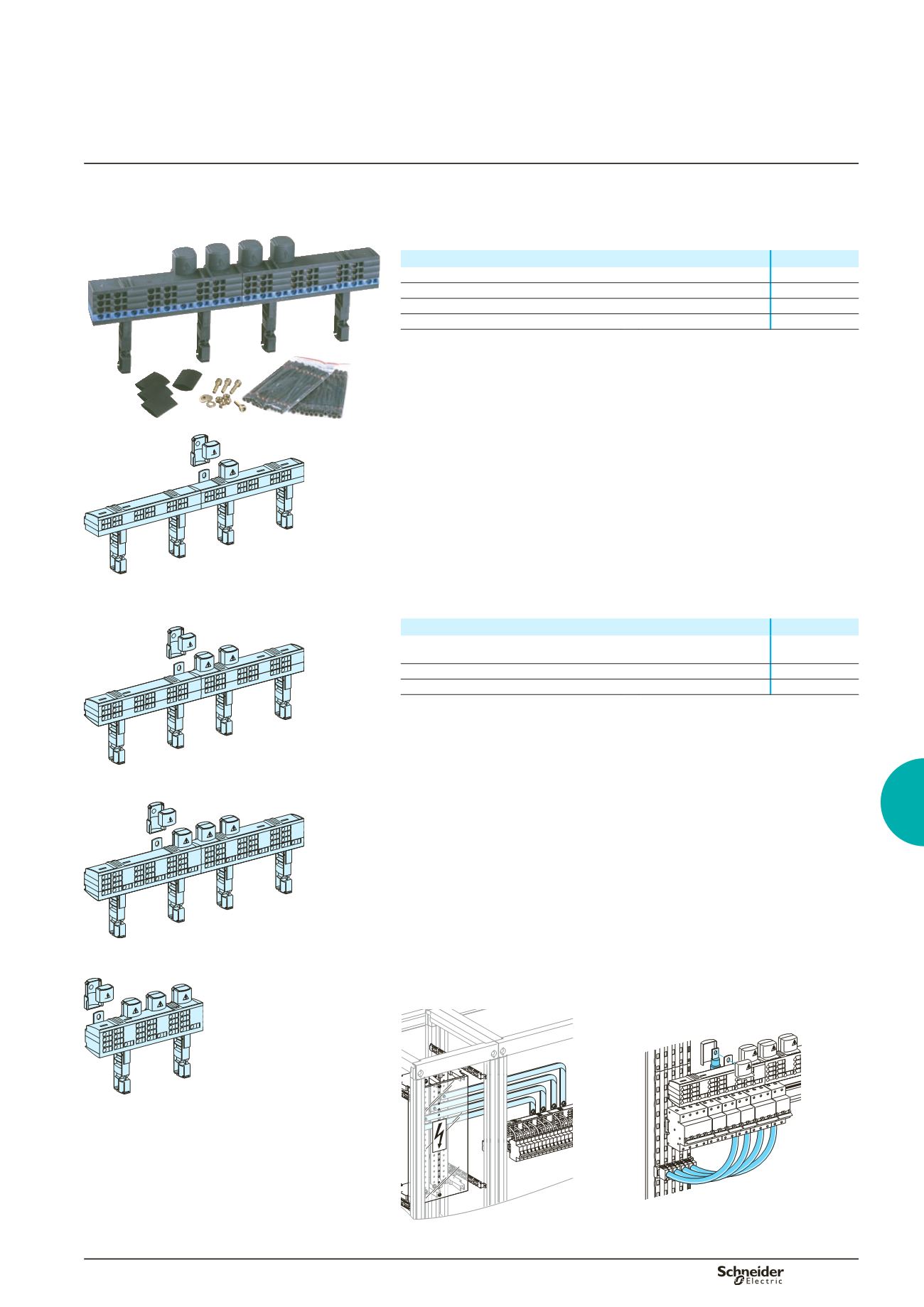

Distribution
160/200 AMulticlip distribution
blocks
Application
Distribution over full rows of modular devices.
The distr bution block is generally supplied by busbars in enclosures and cubicles.
Cat. no. selection
PD390661
Designation
Cat. no.
200 AMulticlip, 2P
04012
200 AMulticlip, 3P
04013
200 AMulticlip, 4P
04014
160 AMulticlip, 4P, 1/2 row
04018
Electrical characteristics
rated insulation level Ui = 750 V
impulse withstand voltage Uimp = 8 kV
short-circuit withstand current: the reinforced breaking capacity due to cascading
in circuit-breaker combinations is maintained. The worst-case situations have been.
160/200 AMulticlip distribution blocks:
10 mm² cable outgoer: Imax = 50 A
two 10 mm² cables: Imax = 63 A.
Supply
direct to terminals:
50 mm² cables with crimped lugs
20 x 3 mm flex ble bars
from Powerclip insulated busbars in a wall-mount or floor-standing enclosure
(04021)
from lateral, channelled busbars in a cubicle (connection must be made)
from busbars in the duct of a wall-mount or floor-standing enclosure (04024)
from busbars in the rear of a wall-mount or floor-standing enclosure (04029).
Busbar connection
b
b
b
b
v
v
b
v
v
b
b
b
b
DD381672
04012.
DD381670
Designation
Cat. no.
Connection between 200 AMulticlip and Powerclip insulated busbars
(enclosure)
04021
Connection between 200 AMulticlip and busbars in a duct (enclosure)
04024
Connection between 200 AMulticlip and rear busbars (enclosure)
04029
Distribution
200 AMulticlip, 2P (04012):
12 connection points for phase and neutral
200 AMulticlip, 3P and 4P (04013 and 04014):
12 connection points for each phase
18 connection points for the neutral
160 AMulticlip, 4P, 1/2 row (04018):
6 connection points for each phase
9 connection points for the neutral
Each connection point can receive a single 10 mm² cable, either flex ble or rigid.
Installation
clipped onto the rear of modular rail
screwed to plain or slotted backplate.
Supplied with:
100 mm long, bared 10 mm² copper connections
200 AMulticlip, 2P, 3P and 4P (04012, 04013 et 04014): 2 sets of 12 connections
160 AMulticlip, 1/2 row (04018): 1 set of 12 connections
protection covers for the supply terminals (IPxxB)
the hardware required for the supply terminals.
b
v
b
v
v
b
v
v
b
b
b
v
v
b
b
04013.
DD381671
04014.
DD381673
DD383655
DD383656
04018.
Supply from busbars in the duct of a wall-mount or
floor-standing enclosure (connection 04024).
Multiclip distribution block
Secondary distribution
