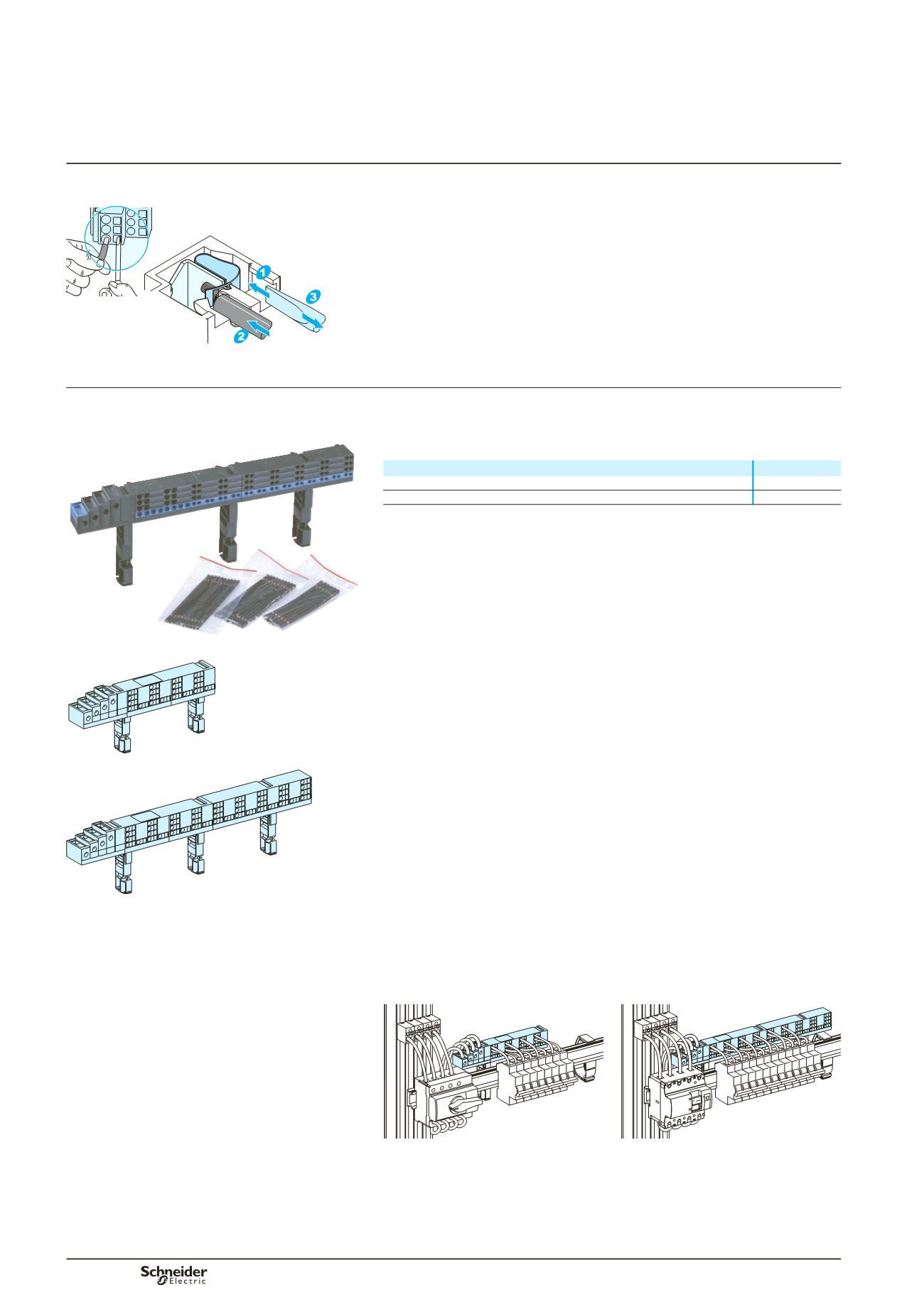

Distribution
General
For connections, the distribution block uses a proven technique, i.e. spring terminals.
Downstream circuits are connected from the front, without screws, to spring
terminals. Contact pressure does not depend on the operator. It automatically adapts
to the size of the conductor (minimum size = 1mm²). Contacts are insensitive to
v brations and thermal variations.
Only one cable (flexible or rigid, without a metal ferrule) can be inserted in a spring
terminal.
Degree of protection: IPxxB.
Advantages
a reliable electrical connection, no maintenance required (tightness guaranteed
over time)
the fast connections make phase balancing very easy.
rewiring is very easy if the switchboard is expanded or modified.
b
b
b
DD381399
Cable connection.
63/80 AMulticlip distribution
blocks
Application
Distribution over half or full rows of modular devices. It is generally supplied by a
device at the head of a group of outgoers (NG125, INS, C60, etc.).
Cat. no. selection
PD390660
Designation
Cat. no.
80 AMulticlip distribution block, 4P
04004
63 AMulticlip distribution block, 4P, 1/2 row
04008
Electrical characteristics
rated insulation level Ui = 500 V
impulse withstand voltage Uimp = 6 kV
short-circuit withstand current: the reinforced breaking capacity due to cascading
in circuit-breaker combinations is maintained. The worst-case situations have been
tested.
63/80 AMulticlip distribution blocks:
4 mm² cable outgoer: Imax = 32 A
6 mm² cable outgoer: Imax = 40 A
two 6 mm² cables: Imax = 63 A.
Supply
Via tunnel terminals up to 25 mm², generally from a device supplying a group of
outgoers.
The tunnel terminals are positioned to facilitate cable entry and screw tightening.
They are designed for cables arriving from the top or bottom.
Distribution
for the full-row Multiclip, 4P (04004), each phase offers:
2 connection points for 6 mm² max. cable
7 connection points for 4 mm² max. cable
the neutral offers:
4 connection points for 6 mm² max. cable
13 connection points for 4mm² max. cable
for the half-row Multiclip, 4P (04008),
each phase offers:
2 connection points for 6 mm² max. cable
2 connection points for 4 mm² max. cable
the neutral offers:
4 connection points for 6 mm² max. cable
4 connection points for 4 mm² max. cable
Each connection point can receive a single cable, either flexible or rigid.
Installation
clipped onto the rear of modular rail
screwed to plain or slotted backplate
b
b
b
b
v
v
v
b
v
v
v
v
b
v
v
v
v
b
b
DD381661
04004.
DD381665
DD381664
Half-row Multiclip distribution block supplied
by an INS switch-disconnector.
Multiclip distribution block supplied by a Vigi
NG125 circuit breaker.
Supplied with 100 mm long bared copper connections
for full-row Multiclip (04004):
2 sets of ten 4 mm² connections + 1 set of six 6 mm² connections
for half-row Multiclip (04008):
1 set of ten 4 mm² connections + 1 set of six 6 mm² connections.
b
v
b
v
04008.
Multiclip distribution block
Secondary distribution
