12 Moulded Case Breakers 0115
ABB Low Voltage
Power breakers
Automatic network generator transfer solutions
G
CB1
CB2
TR1
normal
line
CB1
CB2
GS1
stand by
line
ATS
G
non-priority
load (NPL)
priority
load (PL)
CB3
0 SACE Tm x Mould d-case circuit-breakers
| ABB
2
2
2
2
A single family of moulded-case circuit-breakers up to 3200 A
Automatic network-generator transfer solutions
1
1
ATS022

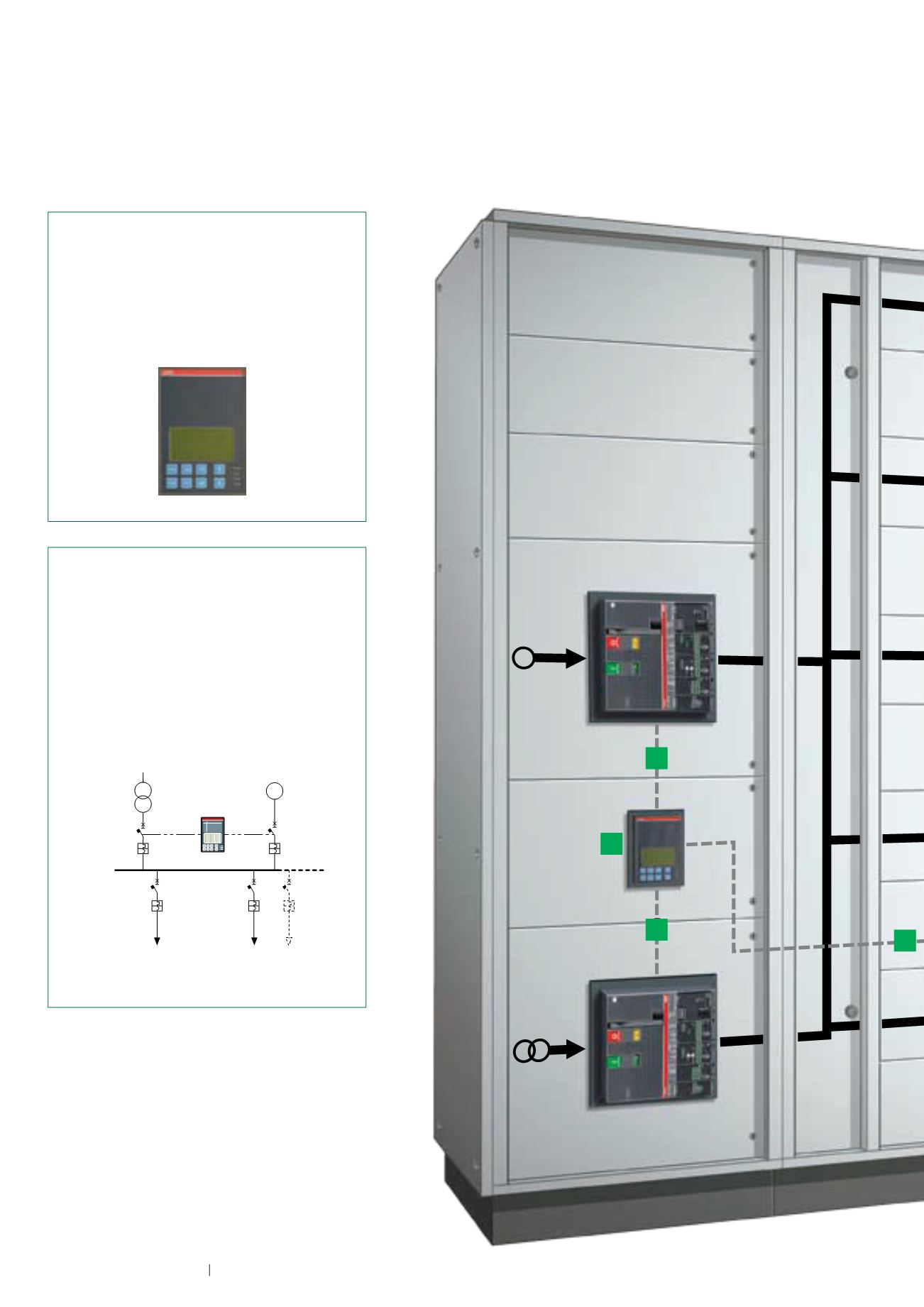

The ATS022 device monitors both the supply lines and ana-
lyzes phase, frequency imbalance and phase loss. In addiction
to the standard control functions, ATS022 allows you to: select
the priority line, control a third circuit-breaker, integrate the
device into a supervision system with Modbus communication,
read and enter the parameters, display measurements and
alarms using a graphic display.
T7 M (CB1) and T7 M (CB2) Interlocked
XT4 (CB3) for disconnection
Non-priority loads (NPL)
To achieve a correct configuration, each circuit-breaker con-
nected to the ATS must be
accessorized with:
• mechanical interlock;
• motor operator for opening and closing;
• key lock against sole manual operation for MOE motor
operators;
• state (open/closed) and tripped contact signalling contact;
• connected contact (for the withdrawable circuit-breaker
version).
