AREA 3 – MT32 PRE-WIRED AND RECONFIGURABLE
INTERCONNECTING SYSTEMS
Using MT32 Slave Unit (SU)
Radial or daisy chain options for Standard and CE Systems
32Amp rating
AREA 4 – A COMBINATION OF POWERTRACk AND MT32
Using 63Amp Standard or CE Powertrack with the
MT32 32Amp Underfloor Distribution system.
A combination that permits greater floor coverage
32Amp rating

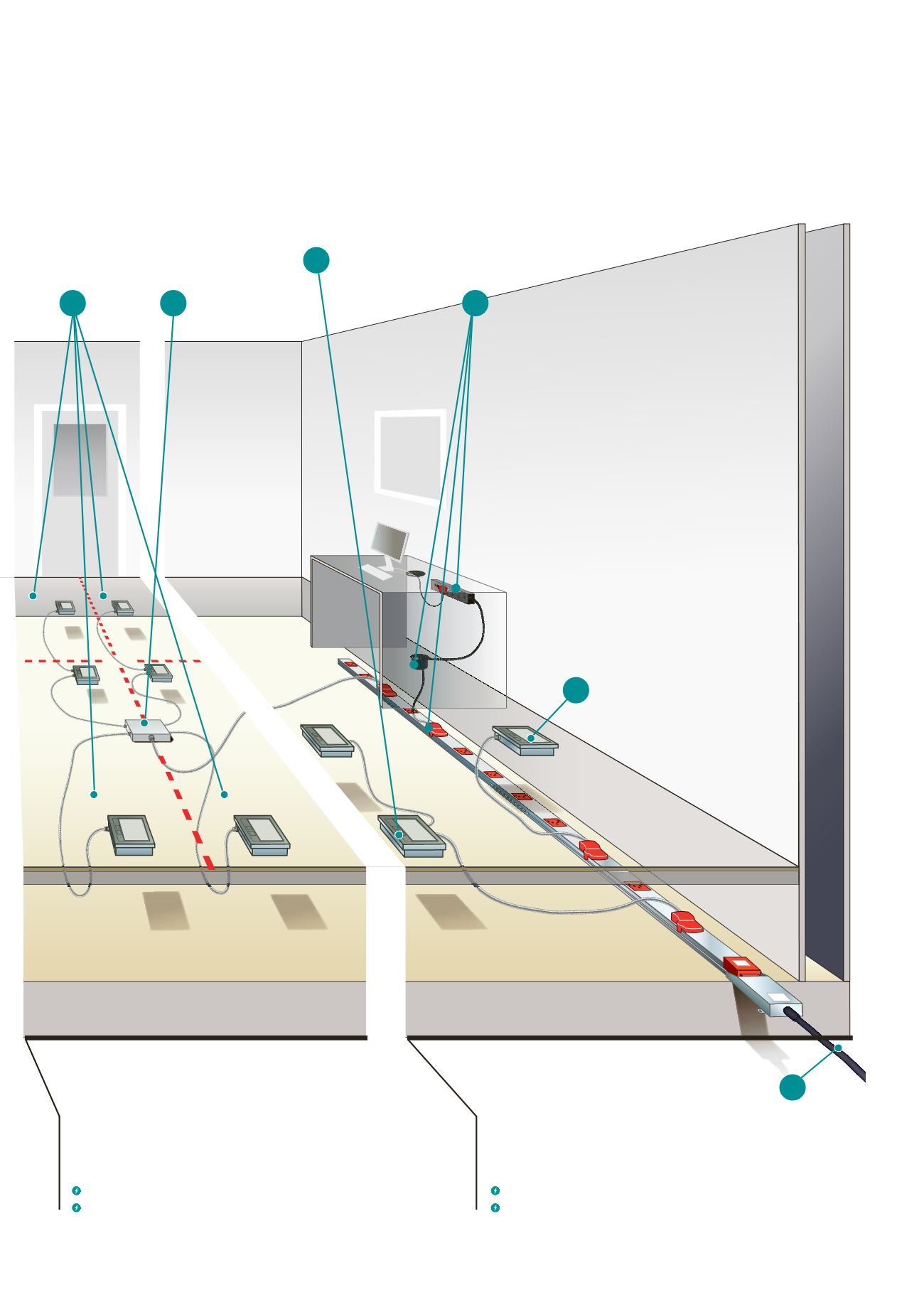

MT32 Slave Unit (SU) -
a 4-way underfloor
distribution unit fed
from powertrack.
MT32
Through box.
Tap-off from powertrack
gives direct feed via MT32
connection to desk module
through a floor grommet.
MT32 Through
and terminal
boxes servicing
independent
zones.
MT32
Terminal Box
SWA
Zone 3
Zone 4
Zone 1
Zone 2
