AREA 1
Using traditional powertrack and hard-wired floor boxes
Standard and Clean Earth (CE) Powertrack
63Amp rating
AREA 2 – MT32 PRE-WIRED AND RECONFIGURABLE
INTERCONNECTING SYSTEMS
Using MT32 Slave Unit (SU)
Radial or daisy chain options for Standard and CE Systems
32Amp rating
MT32 Dry lining
socket can be fed
from floor system
or from MT32
system when
glass partitions
prevents wiring
access from
above.
Steel Wire
Armoured
cable
(SWA)
Standard
or CE supply
to 3 and 4
compartment
floor box.
Power to desk
unit fed by tap-
off from floor
system through
floor grommet.
Tap-off from
floor system to
powerpost/pole.
MT32 Slave Unit (SU) – a 4-way
underfloor distribution unit fed from an
MT32 Slave Unit (SU) and providing
power to MT32 floor boxes. (Can also be
fed from powertrack.)

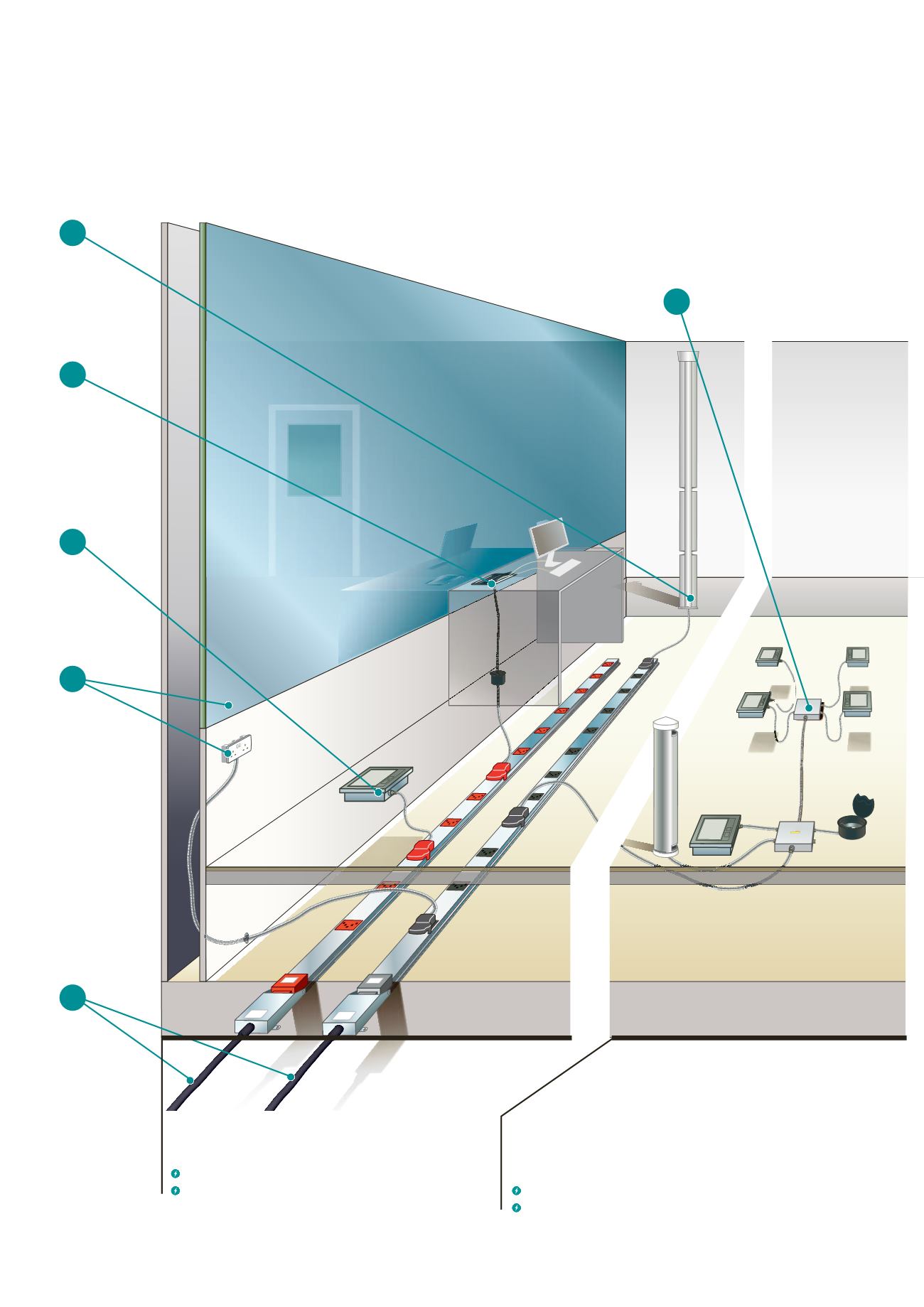

A selection of design layouts incorporating MT32 pre-wired
technology and powertrack.
Underfloor to desk layout
