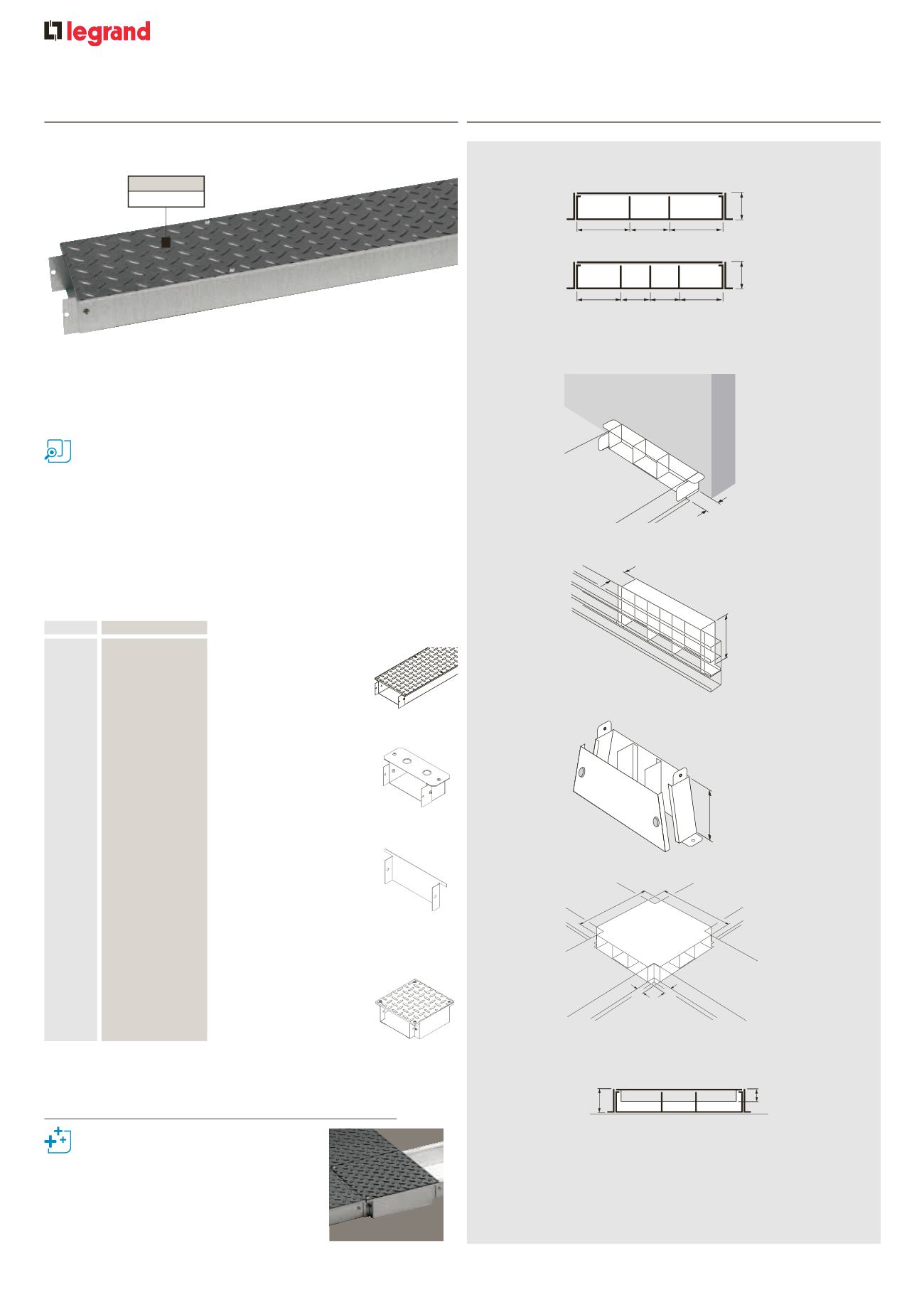

industrial floor trunking systems
chequer plate floor trunking
Trunking length
FTP63
Body manufactured from pre-galvanised sheet steel to BS EN 10142 and 3
Lid manufactured from mild steel, powder coated grey 18B25
Other colours available to special order
Standard lengths : body 2
.
0 m, lid 1
.
0 m
Standard lid thickness : 6
.
5 mm
Chequer plate floor trunking is available in single compartment as
standard complete with lid, all necessary connectors and screws
Internal dividers are fitted on all trunking lengths 225 mm and above to
provide lid support
S
ervice outlet boxes are not available for this range
Pack
Cat. Nos.
Chequer plate floor trunking
Trunking length – 2 m
1
FTP42
100 x 50 mm
1
FTP63
150 x 75 mm
1
FTP124
300 x 100 mm
90° riser bend
Supplied with screeding cover
Provides conduit entry with
20 mm knockouts
1
FTPRB42
100 x 50 mm
1
FTPRB63
150 x 75 mm
1
FTPRB124
300 x 100 mm
End stop
1
FTPEB42
100 x 50 mm
1
FTPEB63
150 x 75 mm
1
FTPEB124
300 x 100 mm
Junction box
Supplied with connectors and plates
To be configured as a fourway, tee, bend
or straight through connector box
1
FTPI42
100 x 50 mm
1
FTPI63
150 x 75 mm
1
FTPI124
300 x 100 mm
commercial floor trunking systems
dimensions and technical information
n
Flush floor trunking
Back entry skirting adaptor
90° riser bends
107
107
76
76
FFO342
FFO332
133
133
100
65
overall
65
overall
150
or
200
50
Cable trunking adaptors
200
50
Service outlet boxes
65
37
Junction box
37
443
443
37
Reduced cabling area when fitting
service outlet box
Chequer plate floor trunking can be
supplied in other widths, depths and
compartment configurations to
special order
Contact us on +44 (0) 870 608 9020
