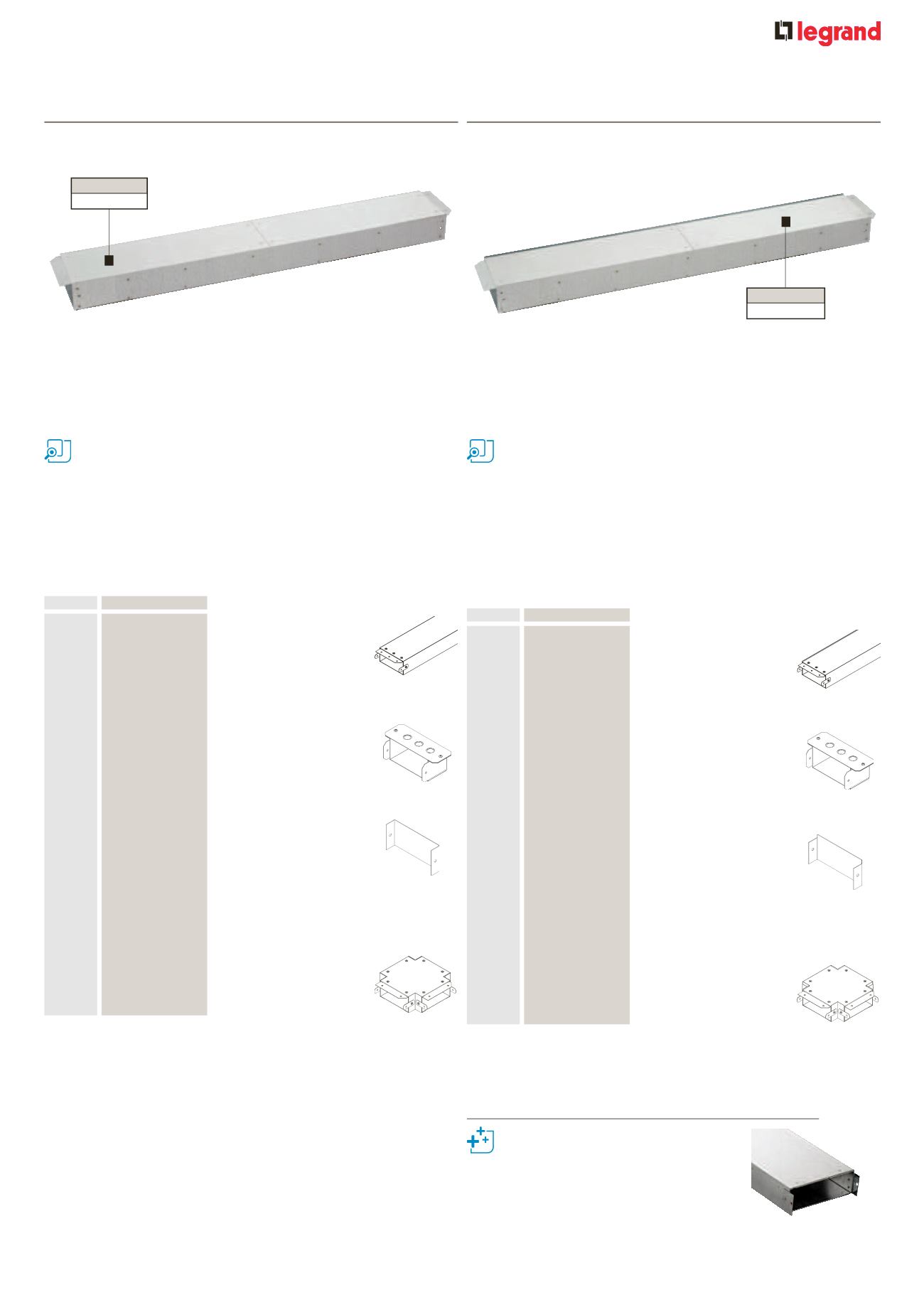

Body and lid manufactured from pre-galvanised sheet steel to
BS EN 10142 and 3
Standard length : 2·0 m body / 500 mm lid
Standard lid thickness : 2·5 mm
Supplied complete with all necessary connectors and screws
Internal dividers are fitted on all trunking lengths 225 mm and above
to provide lid support
S ervice outlet boxes are not available for this range
Pack Cat. Nos. Flush lid floor trunking
Trunking length – 2 m
1 FF42 100 x 50 mm
1 FF63 150 x 75 mm
1 FF124 300 x 100 mm
90° riser bend
Supplied with screeding cover
Provides conduit entry with
20 mm knockouts
1 FFRB42 100 x 50 mm
1 FFRB63 150 x 75 mm
1 FFRB124 300 x 100 mm
End stop
1 FFEB42 100 x 50 mm
1 FFEB63 150 x 75 mm
1 FFEB124 300 x 100 mm
Junction box
Supplied with connectors and plates
To be configured as a fourway, tee, bend or
straight through connector box
1 FFI42 100 x 50 mm
1 FFI63 150 x 75 mm
1 FFI124 300 x 100 mm
commercial floor trunking systems
flush lid floor trunking
commercial floor trunking systems
recessed lid floor trunking
Body and lid manufactured from pre-galvanised sheet steel to
BS EN 10142 and 3
Standard length : 2·0 m body / 500 mm lid
Standard lid thickness : 2·5 mm
Lid recess : 3·5 mm
Supplied complete with all necessary connectors and screws
Internal dividers are fitted on all trunking lengths 225 mm and above
to provide lid support
S ervice outlet boxes are not available for this range
Pack Cat. Nos. Recessed lid floor trunking
Trunking length – 2 m
1 FRL42 100 x 50 mm
1 FRL63 150 x 75 mm
1 FRL124 300 x 100 mm
90° riser bend
Supplied with screeding cover
Provides conduit entry with
20 mm knockouts
1 FRLRB42 100 x 50 mm
1 FRLRB63 150 x 75 mm
1 FRLRB124 300 x 100 mm
End stop
1 FRLEB42 100 x 50 mm
1 FRLEB63 150 x 75 mm
1 FRLEB124 300 x 100 mm
Junction box
Supplied with connectors and plates
To be configured as a fourway, tee, bend or
straight through connector box
1 FRLI42 100 x 50 mm
1 FRLI63 150 x 75 mm
1 FRLI124 300 x 100 mm
Trunking length
FF63
Trunking length
FRFI63
Dimensions and technical information p. 68
Installation details p. 69
Dimensions and technical information p. 68
Installation details p. 69
Flush lid and recessed lid floor trunking
can be supplied in other widths, depths
and compartment configurations to
special order
