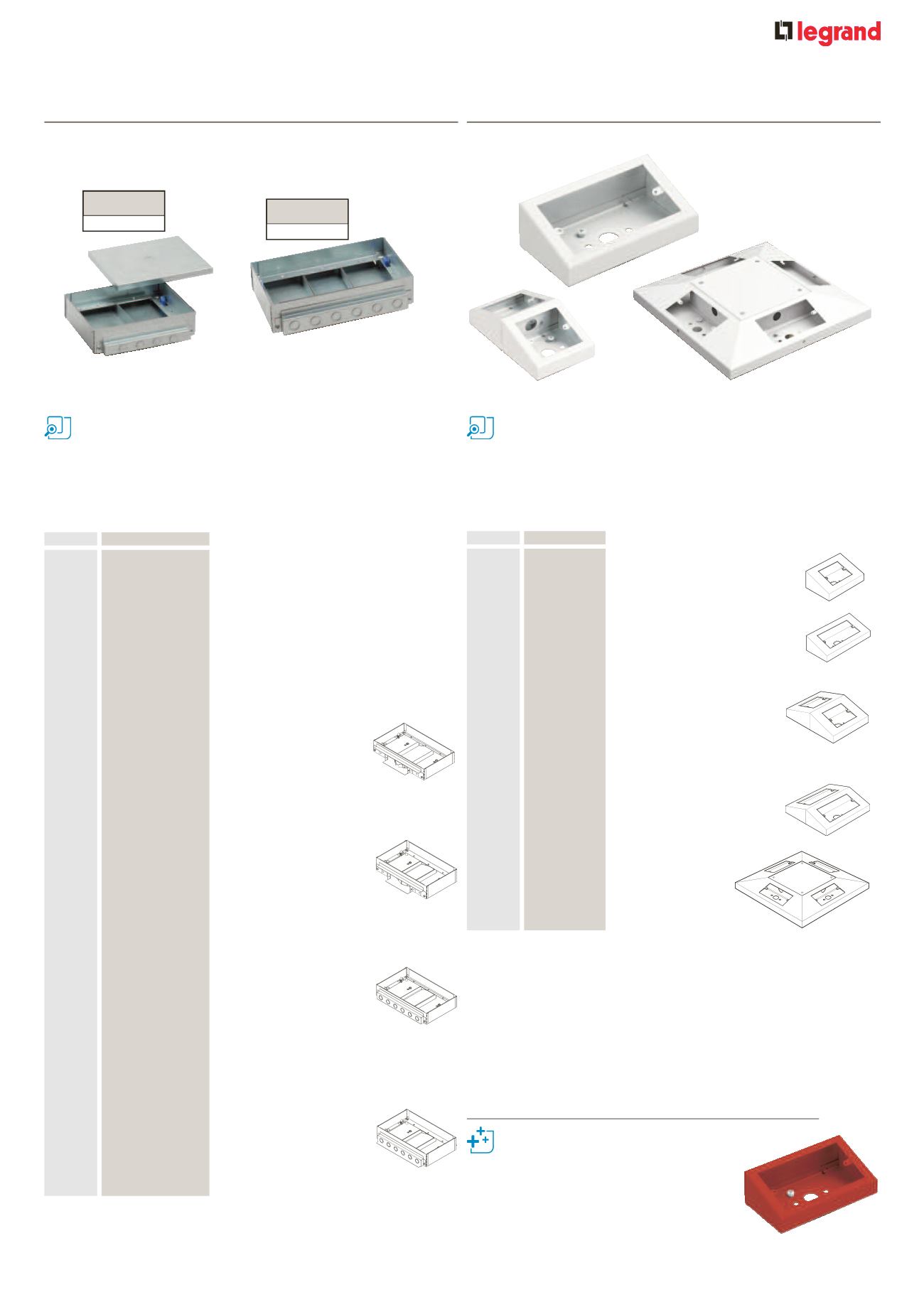

63
Pack
Cat. Nos.
In-screed service outlet base boxes
Service outlet base boxes are supplied
empty
To complete the system, the outlet base
box requires outlet plates, lid and trim
Outlet plates, lids and trims ordered
separately, (see p. 64)
Use a 2 or 4 compartment service outlet
box with 2 compartment duct
2 compartment box can only be used with
150 and 225 mm wide ducting
To fit 25 mm deep ducting
To suit screed 65 mm to 80 mm deep
1
AFU2BB78
2 compartment to suit
25 mm shallow ducting
1
AFU3BB78
3 compartment to suit
25 mm shallow ducting
1
AFU4BB78
4 compartment to suit
25 mm shallow ducting
To fit 38 mm deep ducting
To suit screed 75 mm to 90 mm deep
1
AFU2BB90
2 compartment box to suit
38 mm deep ducting
1
AFU3BB90
3 compartment box to suit
38 mm deep ducting
1
AFU4BB90
4 compartment box to suit
38 mm deep ducting
20 mm conduit fed
To suit screed 65 mm to 80 mm deep
1
AFU1CON78
1 compartment box to suit
20 mm conduit
1
AFU2CON78
2 compartment box to suit
20 mm conduit
1
AFU3CON78
3 compartment box to suit
20 mm conduit
1
AFU4CON78
4 compartment box to suit
20 mm conduit
25 mm conduit fed
To suit screed 75 mm to 90 mm deep
1
AFU1CON90
1 compartment box to suit
25 mm conduit
1
AFU2CON90
2 compartment box to suit
25 mm conduit
1
AFU3CON90
3 compartment box to suit
25 mm conduit
1
AFU4CON90
4 compartment box to suit
25 mm conduit
commercial floor trunking systems
underfloor duct (continued)
Body and lid manufactured from pre-galvanised sheet steel to
BS EN 10142 and 3
Standard length : 2·0 m. Standard lid thickness : 1·0 mm
Each 2 m length is supplied with 2 saddle clamps and screws
Duct to floor fixings are not supplied
Service outlet box
3 compartment
AFU3CON78
Service outlet box
2 compartment
AFU2CON78
pedestal units
PED8WHI
PED3WHI
PED2WHI
Material : zinc coated mild steel to BS EN 10152
Colour : white epoxy powder coated, RAL 9003. For other colours,
please specify RAL number
Zintec finish is available on request (Zintec pedestal units are to be
painted on site)
Pack
Cat. Nos.
Pedestal units
1
PED1WHI
Single socket
1
PED2WHI
Twin socket
1
PED3WHI
Back-to-back single sockets
1
PED4WHI
Back-to-back twin sockets
1
PED8WHI
Pyramid box
Screed loor outlet boxes selection chart
p. 58-59
Dimensions and technical information
p. 67
Installation details
p. 69
Dimensions and technical information
p. 70
Pedestal units are available in other dimensions and
finishes to special order
Contact us on +44 (0) 870 608 9020
