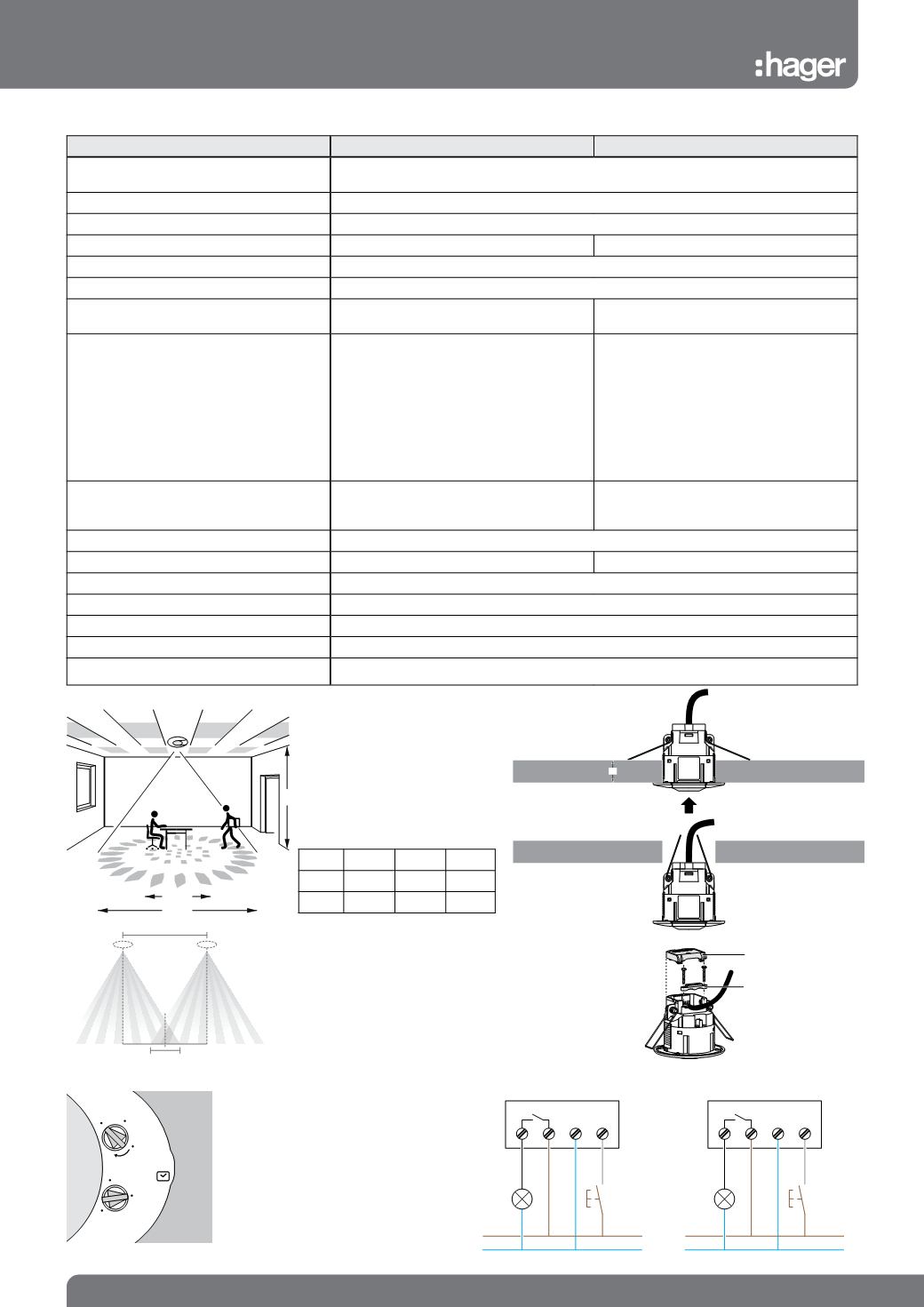

Technical Characteristics
EEK513P / EEK515P
EEK523P / EEK525P
Detection range
motion area: diameter 7m (product installed at 2½m height)
presence area: diameter 5m (product installed at 2½m height)
Supply voltage
230 V AC + 10% -15%
Frequency
50/60 Hz
Local lux threshold setting
5 to 1000 lux
3 modes available
Local time setting
1 min to 1hr
Commissioning via installer remote control
EEK001 for power up, absence / presence mode, timer active / passive cell
Control with IR user remote control
EEK002 for ON / OFF override
EEK002 for ON / OFF override and dimming
up / down
Output
16A AC1 relay output (cut live):
- 2300W incandescent or 230V halogen:
> 26000 cycles
- 1500W VLV halogen lamps with
ferromagnetic or electronic transformer:
> 35000 cycles
- 1000W / 130 μF parallel compensated fluo
tube: > 50000 cycles
-23 x 23W fluo-compact with electronic
ballast: > 20000 cycles
14V / 50mA (for a DALI bus with 24 ballasts)
- No isolation between the mains and the
DALI bus
Push button input
phase input for absence / presence detection
(semi-automatic / automatic mode)
same phase as power supply.
to dim up / down and absence / presence
detection (semi-automatic / automatic mode)
same phase as power supply.
Terminals
for 1.5mm
2
rigid / flexible wires
Power dissipation
300mW
60mW
Isolation class
II
Protection
IP41 / IK03
Operating temperature
-10ºC to +45ºC
Storage temperature
-20ºC to +60ºC
Standards
IEC 60669-1, IEC 60669-2-1
h
x
y
D
S
5m
1m
2.5m
2.5m
auto
test
1min
1h
20min
1
on
2
lux
t
N
L
1
L N PB
Push
button
L
230 V
M
N
L
1
L N PB
Push
button
L
230 V
M
h
2.5m 3m 3.5m
x
5m 5m 5m
y
7m 8m 9m
Detection areas
Settings EEK513P/EEK515P
EEK523P/EEK525P
Mounting
ceiling
protective cover
cable clamp
Wiring diagram
EEK510B (no cable supplied)
EEK513W (Cable supplied
connected to OS)
10 < t < 28mm
Occupancy Sensors
