klik.system
Occupancy Sensors
Occupancy Sensors
Description Cat ref.
Standard Relay Sensor complete with 3m Lead and Plug LS0H EEK513P
Standard Relay Sensor complete with 5m Lead and Plug LS0H EEK515P
Digital Sensor complete with 3m Lead and Plug LS0H EEK523P
Digital Sensor complete with 5m Lead and Plug LS0H EEK525P
Programming Tool EEK001
Remote Control EEK002
KNX Occupancy Sensors
KNX allows the linking of sensors to create notional areas and corridors. Also allowing outputs of sensors
to be linked utilising ETS software and associated KNX products.
Description Cat ref.
KNX Relay Sensor complete with 3m Lead and Plug LS0H TKK513P
KNX Relay Sensor complete with 5m Lead and Plug LS0H TKK515P
KNX Digital Sensor complete with 3m Lead and Plug LS0H TKK523P
KNX Digital Sensor complete with 5m Lead and Plug LS0H TKK525P
KNX Occupncy Sensor (without cable) TCC510S
Programming Tool EEK001
Remote Control EEK002
• All sensors are pluggable
directly into the marshalling
box giving a significant time
saving on installation.
• Presence detection mode:
Allows lighting to be controlled
ensuring that lighting is only
energised when people are in
the detection area.
• Absence detection mode:
Requires lighting to be
activated by a wall switch or
remote control to switch
lighting on. Lighting then
remains on during presence
and switches off after time out
period from last presence
detection. Offers potentially
the best energy savings.
• Wall switch override allows
lighting state to be changed
between states or dimmed up
and down on digital fittings.
• High sensitivity detection
will react to small movements,
such as somebody working at
a desk up to 5m diameter
• Motion detection will react
to larger movements, such as
walking up to 7m diameter.
• Integral photocell 5 - 1000 lux.
Lux setting can be increased
and decreased in increments
of 100 lux.
• EEK001 programming tool is
easy to use with 2 memory
settings to enable
repeatability.
• EEK002 remote control comes
with a wall mounting bracket
for storage and allows room
occupant to have control of
lighting output.
• Time out adjustment:
2 - 57 mins with remote
programmer.
1 min - 1 hour with
potentiometer.
• Switching capability - relay
Incandescent Halogen -
2300W.
Halogen ELV via ferromagnetic
or electronic transformer -
1500W.
Compact Fluorescent -
23 x 23W.
Parallel compensated
fluorescent tubes - 1000W
Fluorescent via electronic
ballast - 1000W.
• Digital switching capability.
Up to 24 DSI or DALI ballasts.
• Walk test mode.
• Factory presets:
Lux = 400
Time = 20 min
Test mode for 2 min.
• 3m 1.5mm2 Low Smoke Zero
Halogen for Relay model.
3m 0.75mm2 Low Smoke Zero
Halogen for Digital model.
• Can be flush mounted through
a 60mm hole, utilises spring
clips to ensure a fast and
secure mounting method.
• All parts factory connected
and tested.
• Time and photocell can be set
by controller EEK001 or
potentiometer.

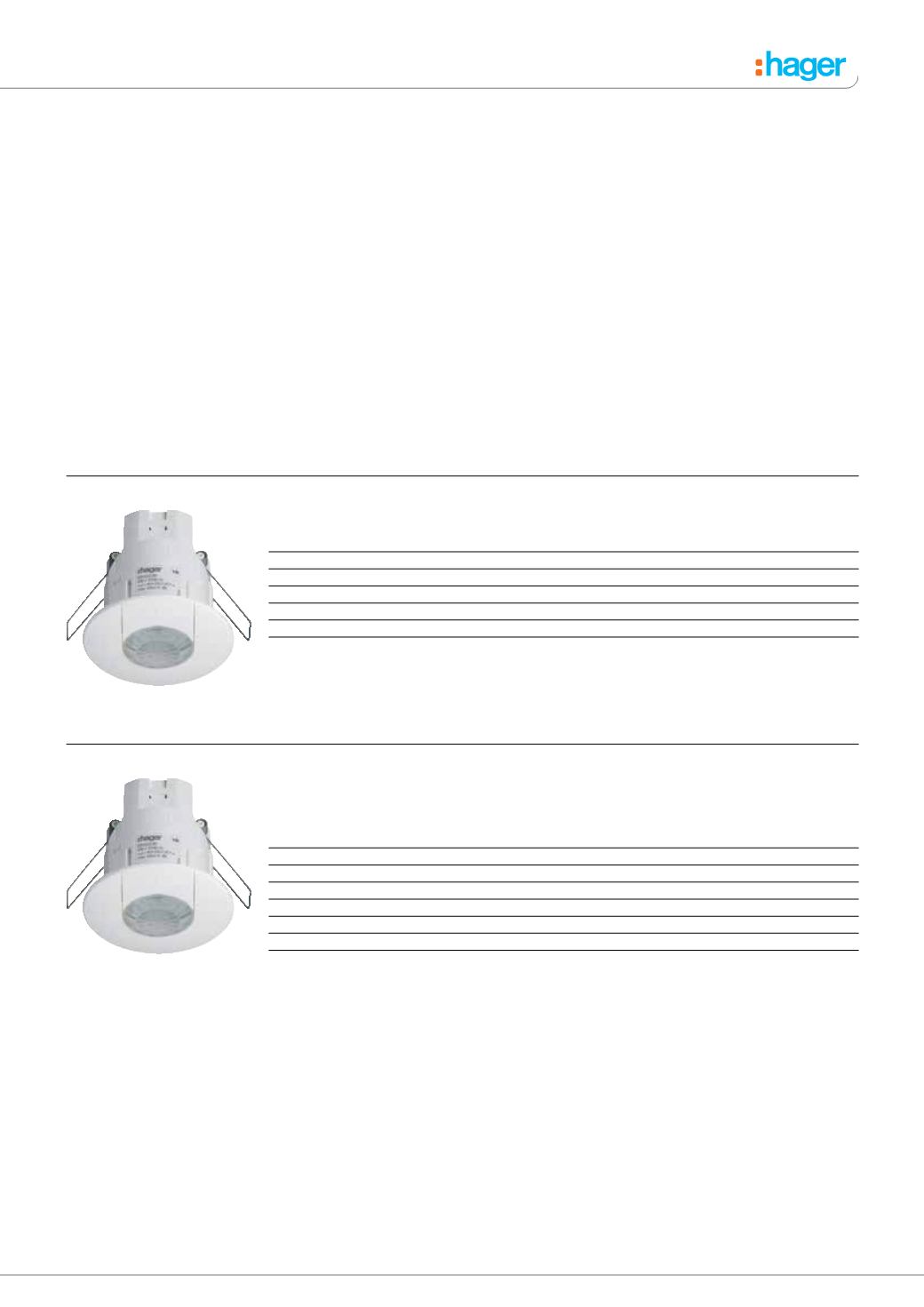

EEK513P
TKK513P
