CIRCUIT PROTECTION
603
TECHNICAL SPECIFICATION
ELECTROMECHANICAL
5707S
5724S
5833S
5807S
5824S
Supply voltage
220-240V a.c. 50Hz
220-240V a.c. 50Hz
220-240V a.c. 50Hz
220-240V a.c. 50-60Hz
220-240V a.c. 50-60Hz
Maximum power consumption
1VA
1VA
1VA
1VA
1VA
Switching capacity per channel
16A
4A (Cos.Ø 0.6)
1350W
16A
4A (Cos.Ø 0.6)
1350W
16A
4A (Cos.Ø 0.6)
1350W
16A
4A (Cos.Ø 0.6)
1350W
16A
4A (Cos.Ø 0.6)
1350W
– Resistive
– Inductive
– Fluorescent
Switching arrangement
1 x c/o
1 x c/o
1 x n/o
1 x c/o
1 x c/o
No. of switching commands
56
48
48
56
48
Minimum programme time
3hrs
30mins
30mins
3hrs
30mins
Operating temperature range
–25°C to +55°C
–25°C to +55°C
–25°C to +55°C
–20°C to +55°C
–20°C to +55°C
Running reserve
–
–
–
*150hrs
*150hrs
Width of unit
54mm (3 mods)
54mm (3 mods)
18mm (1 mod)
54mm (3 mods)
54mm (3 mods)
Terminal capacity
2 x 2.5mm
2
2 x 2.5mm
2
2 x 4mm
2
2 x 2.5mm
2
2 x 2.5mm
2
DIGITAL AND TIME DELAY
5731S
5732S
5733S
Supply voltage
220-240V a.c. 50-60Hz
220-240V a.c. 50-60Hz
220-240V a.c. 50-60Hz
Maximum power consumption
5VA
5VA
5VA
Switching capacity per channel
16A
8A (Cos.Ø 0.6)
1000W
16A
8A (Cos.Ø 0.6)
1000W
16A
8A (Cos.Ø 0.6)
1000W
– Resistive
– Inductive
– Fluorescent
Switching arrangement
1 x c/o
2 x c/o
1 x c/o
No. of switching commands
50
50
50
Programme options
–
–
R/H
Minimum programme time
1min
1min
1min
Operating temperature range
-25°C to +55°C
-25°C to +55°C
-25°C to +55°C
Operating accuracy @ 20°C
2.5sec/day
2.5sec/day
2.5sec/day
Running reserve
3 years from factory
3 years from factory
3 years from factory
Width of unit
36mm (2 mods)
36mm (2 mods)
18mm (1 mod)
Terminal capacity
2 x 2.5mm
2
2 x 2.5mm
2
2 x 4mm
2
Summer/winter changeover
Yes
Yes
Yes
Neon indicator lamp load
–
–
–
R/H = Random/holiday C/O = Changeover switch N/O = Normally open contact * = after 140hr charging time
Sentry Technical
5707s/5724s/5807s/5824s
5833s

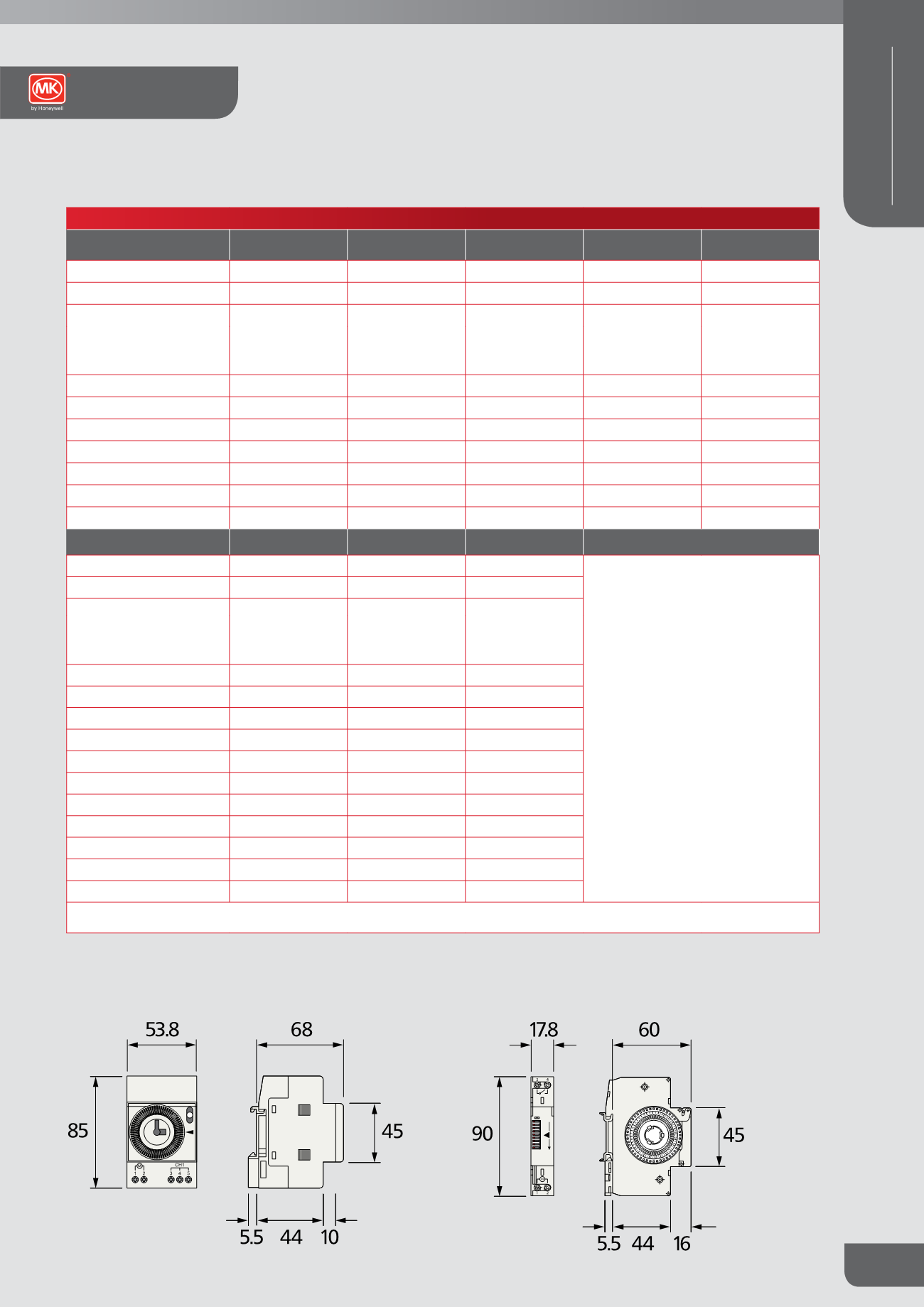

Dimensions (mm)
