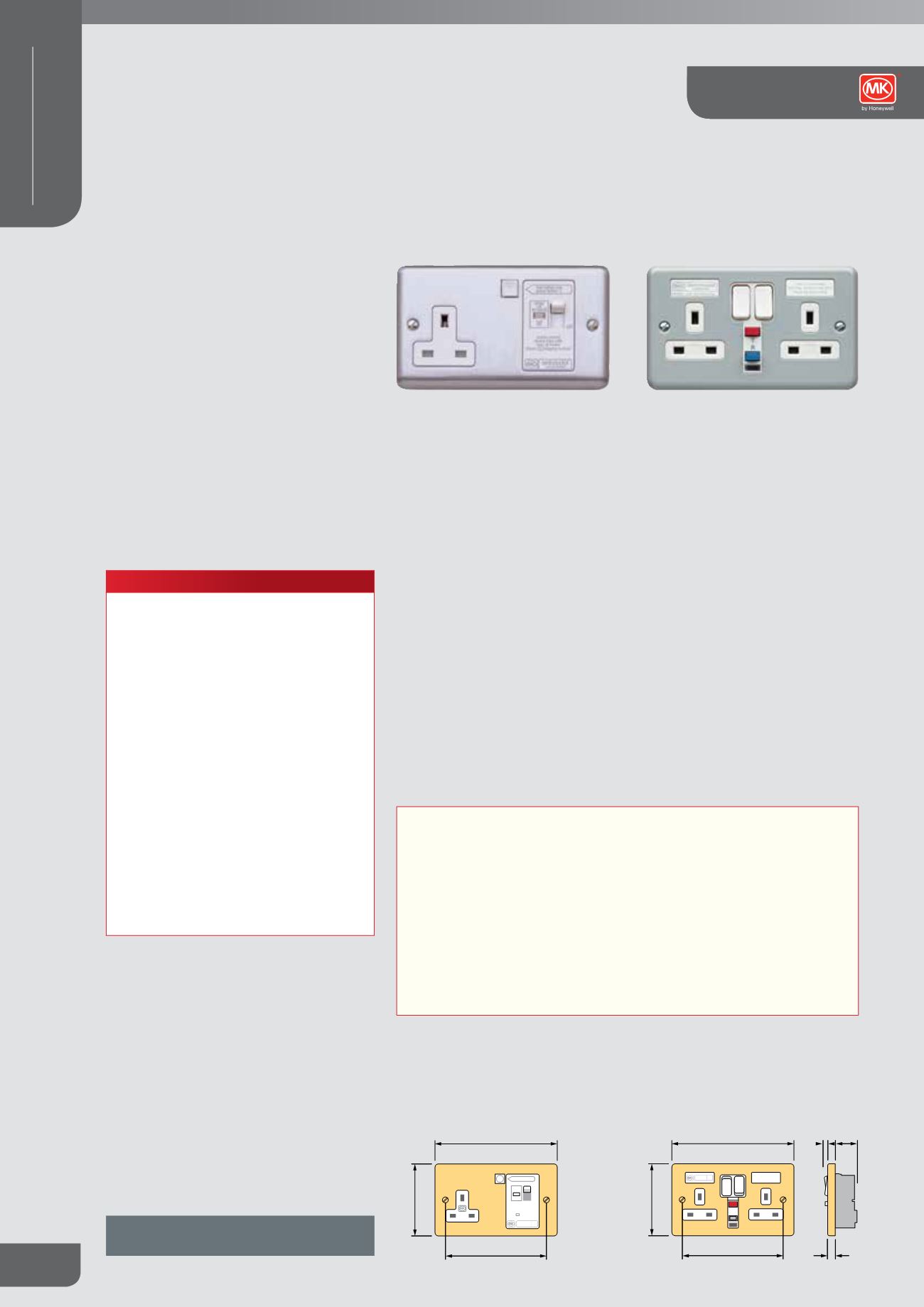

CIRCUIT PROTECTION
606
Sentrysocket
Compliance with EC Directives,
Standards and approvals
All Sentrysockets comply with the following
EC Directives and are CE marked:
Low Voltage Directive
Electromagnetic Compatibility Directive
(89/336/EEC)
Sentrysocket RCD DP Single Sockets comply
with the requirements of the following standards:
BS 7288:1990
BS EN 50082-1:1998
Sentrysocket RCD SP Double Sockets
also comply with the requirements of
BS EN 61543:1996.
TECHNICAL SPECIFICATION
ELECTRICAL
RATED VOLTAGE
240V a.c.
CURRENT RATING
13A resistive
Rated tripping current 10mA/30mA
TERMINAL CAPACITY
3 x 4mm 2 for 1 gang
2 x 4mm 2 for 2 gang
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
IP66 (K56301/K56231/K56233)
MAX. INSTALLATION ALTITUDE
2000 metres
Sentrysockets are not suitable for connection across
two lines of a 127V line to Neutral Voltage System
FEATURES
l Suitable for most residential,
commercial and light industrial
applications
l Active and passive control circuit
applications
l Flexible and versatile in use
l Single Sockets have double pole
switching, double sockets are single
pole switching
l Masterseal Plus products are ideal
for use with equipment subject to wet
weather or high humidity
l Part of a complete range of MK circuit
protection devices
l They are a.c. and pulsating d.c.
sensitive for residual current
l Double Socket products have an
enhanced RF Immunity performance
For a full range of corresponding products,
see pages 288-289 in the product selector.
Sentrysocket®
Technical
Sentrysockets products can be wall or bench mounted. Do not mount or use as a
trailing socket or where they maybe subject to excessive moisture or dampness.
TT testbeforeuse
pressbutton -T
whiteoff
(tripped)
red
on on
active control
device tripswithlossofmains
10mA tripping current
sentrysocket
rcdprotected
sentrysocket
rcdprotected
FlagbelowReset (R)button.
Red :ONBlack:OFF
ALWAYSTESTBEFOREUSE
PressTest (T)button,Red flag shoulddisappear. If itdoesnot,donotuse.
PressReset (R)after testing.
T
R
Dimensions (mm)
Double socket Single socket
Description
Sentrysocket provides a high level of protection against electrocution and gives
further protection when used with appliances vulnerable to insulation damage,
particularly when they are in damp environments or outdoors. The Sentrysocket
units are not suitable for mounting in damp environments or outdoors.
Sentrysocket, incorporating an RCD, is part of a complete range of fixed and
portable wiring devices and circuit protection devices suitable for use in domestic,
commercial and light industrial applications.
Active control circuits
Incorporate a ‘Re-set’ mechanism and are mains failure sensitive, i.e. they will
function under all the normal conditions expected of an RCD, but will also trip in
the event of a power cut or a sudden, dramatic reduction in mains voltage. This
makes them ideal for use where it would be hazardous for equipment to suddenly
energise after return of mains power, such as use with rotating machinery and heat
developing apparatus.
Passive control circuits
Incorporate a ‘Stay-set’ mechanism and is mains failure proof, i.e. it will function
under all the normal conditions expected of an RCD and will not trip in the event
of a power cut. This makes it suitable for use with freezers or in inaccessible or
unmanned locations.
Cable management
Logic Plus™, Albany Plus™ and Metalclad
Plus™ Sentrysockets can be mounted in a variety
of MK trunking systems.
Installation
Flush mounting steel wall box
It should be noted that some of the conduit
entries may be restricted, depending upon their
positions and the depth of box used.
146 146 26.5 3.3
86 86
