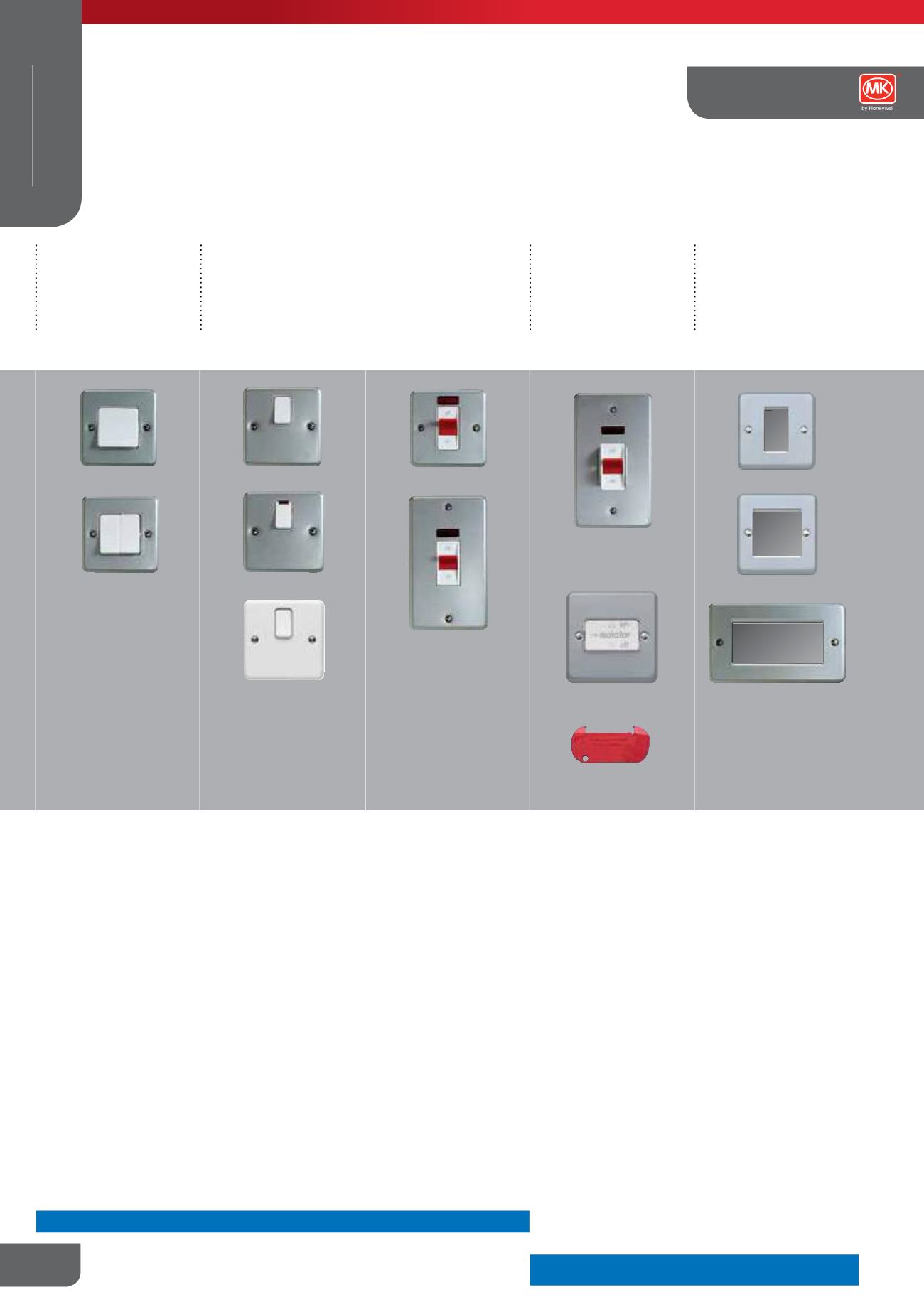

MK Electric Catalogue No. 49

230 / 759

K3781ALM 5
1 GANG SP
TWO WAY
WITH WIDE ROCKER
K3782ALM 5
2 GANG SP
TWO WAY
WITH WIDE ROCKERS
These switches do NOT have to be
derated when used with fluorescent or
inductive loads.
An earth terminal is fitted in each box.
DIMENSIONS
86 x 86 x 47mm
KNOCKOUTS
6 x 20mm.
Two in one side and one in each of
other three sides, one in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout.
BS EN 60669-1:1999
K5212ALM 5
DP SWITCH
K5232ALM 1
DP SWITCH
WITH NEON
K5242ALM 5
DP SWITCH
WITH FLEX OUTLET
AND NEON
K3012WHI 10
DP SWITCH
WITHOUT BOX
Earth terminal fitted in base of box.
DIMENSIONS
86 x 86 x 47mm
KNOCKOUTS
6 x 20mm.
Two in one side and one in each of
other three sides, one in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout.
BS EN 60669-1:1999
DP Switches are not recommended for
switching large banks of PCs.
K5240ALM 1
32A DP SWITCH
WITH NEON
K5230ALM 1
50A DP SWITCH
WITH NEON
Earth terminal fitted in base of box.
DIMENSIONS
K5240 86 x 86 x 65mm
K5230 147 x 86 x 65mm
KNOCKOUTS
K5240 6 x 20mm. Two in one side
and one in each of other three sides,
one in base.
K5230 4 x 20mm, 4 x 25mm
SPARE BOX
K5240 K8901ALM
K5230 K8902ALM
All boxes have a base knockout.
BS EN 60669-1:1999
K5116ALM 1
32A THREE POLE AND N SWITCH
WITH NEON AND
EARTH TERMINAL
K2857ALM 1
10A THREE POLE FAN ISOLATOR
WITH SWITCHLOCK
AND PADLOCK
K2859ALM 1
10A THREE POLE FAN ISOLATOR
WITHOUT SWITCHLOCK
K4858 10
SWITCHLOCK
FOR FAN ISOLATOR
K5116
440V max. AC22, 12kW (16HP) &
415V, 3 phase 32A continuous duty.
Making capacity is 2000A peak.
Lockable ‘ON’ or ‘OFF’ with MK
padlock no K2000.
K2857
For local isolation of fans with or
without timers for repair or routine.
DIMENSIONS
K5116 147 x 86 x 65mm
K2857 86 x 86 x 47mm
KNOCKOUTS
K5116 4 x 20mm², 4 x 25mm²
K2857 6 x 20mm²
SPARE BOXES
K5116 K8902ALM
K2857 K899ALM, K829ALM
BS EN 60947-3:1999
BS EN 60669-2-4 (K2857)
K181ALM 5
1 GANG EURO FRONTPLATE
ONE MODULE
APERTURE SIZE 25 X 50MM
K182ALM 5
1 GANG EURO FRONTPLATE
TWO MODULE
APERTURE SIZE 50 X 50MM
K184ALM 1
2 GANG EURO FRONTPLATE
FOUR MODULE
APERTURE SIZE 100 X 50MM
MOUNTING BOXES
Mounting Box is not supplied with
frontplate.
Suitable for flush boxes to
BS 4662:2006 and surface boxes to
BS 5733:2010 Refer to appropriate
module for minimum box depth.
FIXING CENTRES
1 gang 60.3mm
2 gang 120.6mm
STANDARDS
BS 5733:2010 where applicable
NOTE
No grid required, modules just clip
into place.
WIDE ROCKERS
10 AMP
DP Switches
20 AMP
K3781ALM
K3782ALM
K5212ALM
K5232ALM
K3012WHI
32 AMP AND
50 AMP
Triple Pole
32 AMP AND
10 AMP
K5230ALM
K5116ALM
K2857ALM
K5240ALM
Euro Data
Frontplates
K184ALM
K182ALM
K181ALM
Switches
All units are supplied with backboxes (except WHI, D5 products and Blankplates)
All units are supplied with backboxes
(except WHI, D5 products and Blankplates)
K4858
230
WIRING DEVICES
Metalclad Plus™
SURFACE
