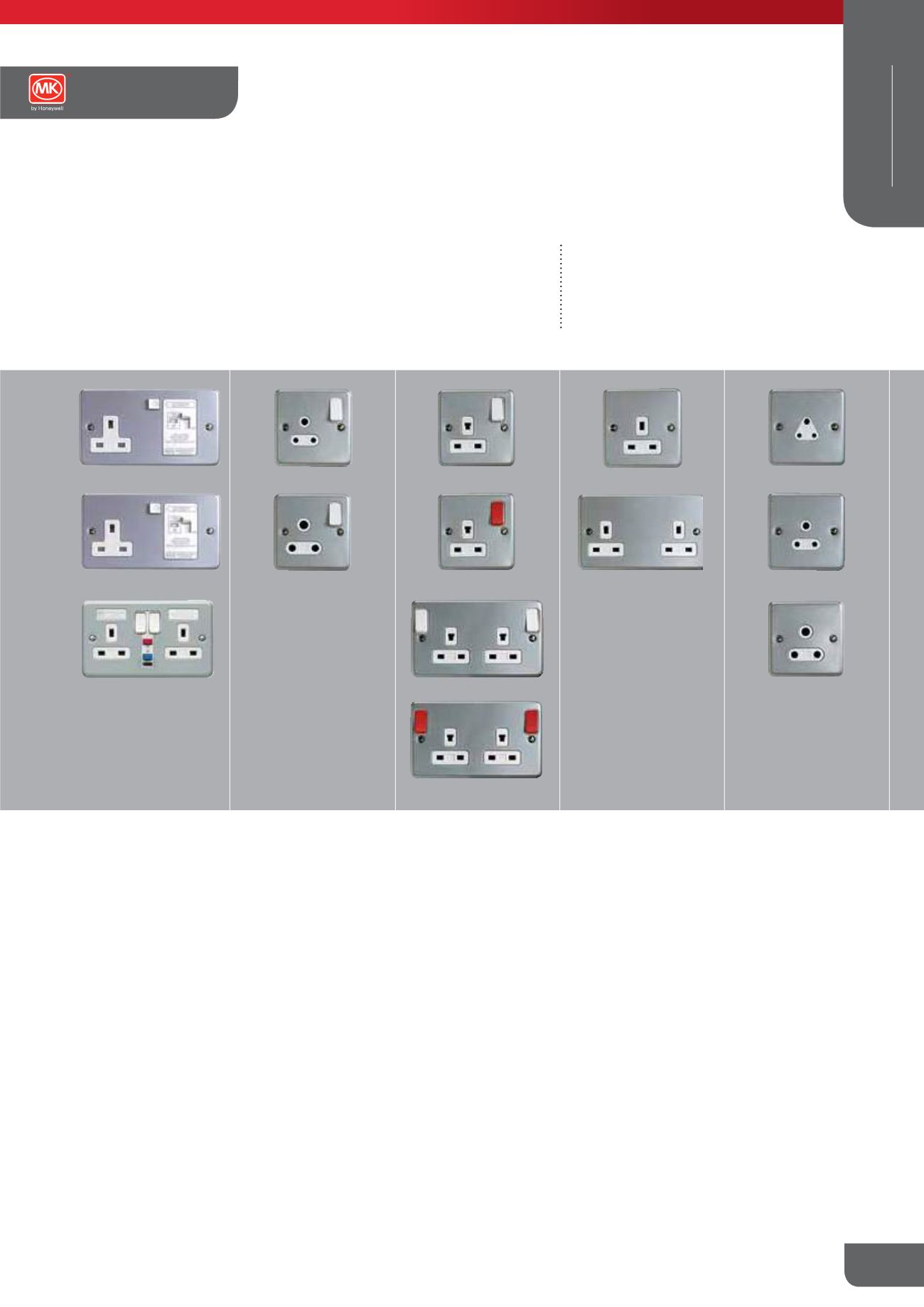

K2871ALM
1
1 GANG
5A DP
SHUTTERED
K2873ALM
5
1 GANG
15A DP
SHUTTERED
Earth terminal fitted in boxes.
DIMENSIONS
86 x 86 x 51mm
KNOCKOUTS
6 x 20mm – Two in one side and
one in each of other three sides. One
in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout.
BS 546:1950
K1247ALM
5
1 GANG DP WITH
CLEAN EARTH FACILITY
K1247D6ALM
1
1 GANG DP
WITH RED ROCKER AND
CLEAN EARTH FACILITY
K1248ALM
1
2 GANG DP WITH
CLEAN EARTH FACILITY
K1248D6ALM
1
2 GANG DP
WITH RED ROCKERS AND
CLEAN EARTH FACILITY
These products are provided with
facilities for ‘clean earth’ connection
and are suitable for non standard
plugs with ‘T’ shaped earth pin.
Earth terminal fitted in boxes.
NOTE
A suitable plug for these non standard
sockets is 647WHI, see page 240.
DIMENSIONS
1 gang
86 x 86 x 51mm
2 gang
86 x 146 x 51mm
KNOCKOUTS
1 gang
6 x 20mm – Two in one side
and one in each of other three sides.
One in base.
2 gang
8 x 20mm – Three in top, two
in bottom sides and one in each end.
One in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout
BS 1363-2:1995 where relevant
K848ALM
5
1 GANG
K850ALM
5
2 GANG
WITH DUAL EARTH
TERMINALS
K850ALM
has two earth terminals
providing a double earth facility when
installations require a high integrity
protective connection as specified
within BS 7671:2008..
DIMENSIONS
1 gang
86 x 86 x 47mm
2 gang
86 x146 x 47mm
KNOCKOUTS
1 gang
6 x 20mm – Two in one side
and one in each of other three sides.
One in base.
2 gang
8 x 20mm – Three in top, two
in bottom sides and one in each end.
One in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout.
BS 1363-2:1995
K841ALM
5
1 GANG
2A
SHUTTERED
K842ALM
5
1 GANG
5A
SHUTTERED
K843ALM
5
1 GANG
15A
SHUTTERED
Earth terminal fitted in box.
DIMENSIONS
86 x 86 x 47mm
KNOCKOUTS
6 x 20mm – Two in one side and
one in each of other three sides. One
in base.
Spare Boxes with and without
knockouts are available.
All boxes have a base knockout.
BS 546:1950
K6102ALM
1
1 GANG DP
10mA ACTIVE CIRCUIT
K6302ALM
1
1 GANG DP
30mA ACTIVE CIRCUIT
K6305ALM
1
1 GANG DP
30mA PASSIVE CIRCUIT
K6231ALM
1
2 GANG SP
30mA ACTIVE CIRCUIT
K6233ALM
1
2 GANG SP
30mA PASSIVE CIRCUIT
It is important to ensure that the
correct control circuit, active
or passive, is selected for each
application. See page 288 for
definition.
Only suitable for supply voltage of
240V a.c.
DIMENSIONS
86 x 147 x 54mm
KNOCKOUTS
8 x 20mm – Three in top side, two in
bottom side, one in base and one in
each end.
SPARE BOX
K897ALM
BS 7288:1990
ROUND PIN
K2871ALM
K2873ALM
NON STANDARD
13 AMP
Socket Outlets
13 AMP
ROUND PIN
K848ALM
K850ALM
K841ALM
K842ALM
K843ALM
K1247ALM
K1247D6ALM
K1248ALM
K1248D6ALM
RCD PROTECTED
13 AMP
K6102ALM
K6302ALM
K6231ALM
