MINI-TRUNKING INSTALLATION PLANNING
GT1-6 inc. GT8 are available with a full range of moulded fittings. To maintain insulated
integrity when using moulded fittings, the trunking base should be mitred at the corners.
If cabling is to be double insulated, square cut or butt corners can be made, the moulded
fitting will mask the butt joint.
External clip-over couplers are available for GT1, GT2 and GT8. All other mini-trunking
uses internal couplers, where internal couplers are used the trunking cover should over-
run the joint between two body sections.
Eg:
The trunking base should be cut to the required length and fixed to the wall, ceiling etc.
After fitting the base, the cabling can be installed using the moulded fittings to retain the
cables in the base. The trunking cover should be cut to suit.
Fit the cover adjacent to one fitting and slide under the fitting to the location tab. Press
home the cover along the base, guiding the free end under the next fitting, and press
home the cover to complete the installation.

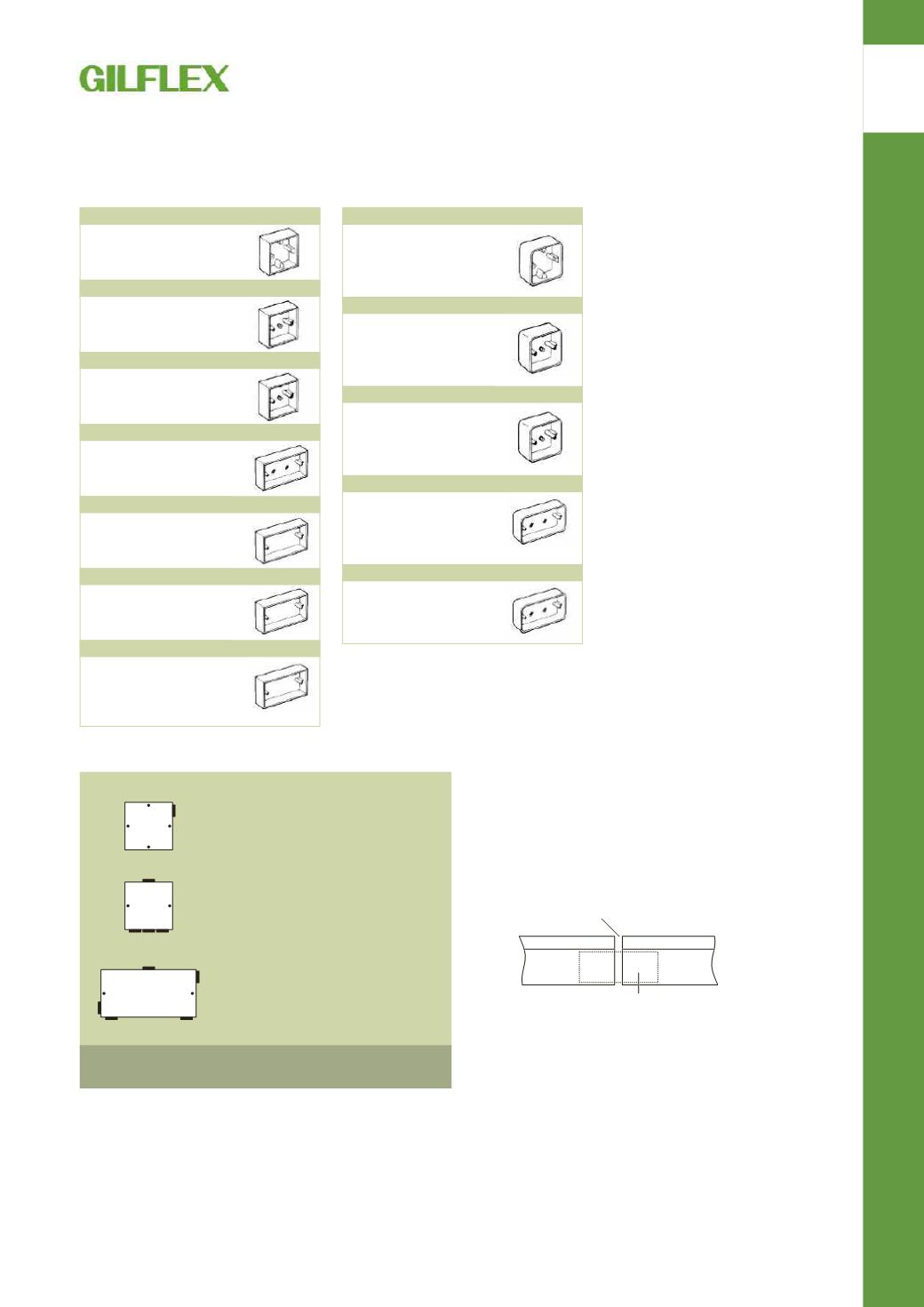

SURFACE BOXES FOR GT
RANGE - SQUARE CORNERS
SINGLE BOX - ONE ENTRY
GTO 1251 WHI 25mm 60.3mm 25
SINGLE BOX - TWO ENTRIES
GTO 1254 WHI 25mm 60.3mm 25
SINGLE BOX - THREE ENTRIES
GTO 1321 WHI 32mm 60.3mm 10
TWIN BOX - THREE ENTRIES
GTO 1255 WHI 25mm 120.6mm 10
TWIN BOX - THREE ENTRIES
GTO 1257 WHI 25mm 120.6mm 10
TWIN BOX - ONE ENTRY
GTO 1322 WHI 32mm 120.6mm 10
TWIN BOX - THREE ENTRIES
GTO 1411 WHI 41mm 120.6mm 10
Ref. No.
Internal Fixing Pack
Depth Centre
SURFACE BOXES FOR GT
RANGE - RADIUS CORNERS
SINGLE BOX - ONE ENTRY
GTO 2252 WHI 25mm 60.3mm 25
SINGLE BOX - ONE ENTRY
GTO 2253 WHI 25mm 60.3mm 25
SINGLE BOX - ONE ENTRY
GTO 2323 WHI 32mm 60.3mm 25
TWIN BOX - THREE ENTRIES
GTO 2256 WHI 25mm 120.6mm 10
TWIN BOX - THREE ENTRIES
GTO 2324 WHI 32mm 120.6mm 10
Ref. No.
Internal Fixing Pack
Depth Centre
GTO BOX ENTRY POSITIONS
Box Ref.
Entry Ref.
GTO1251
1
GTO2252
1
GTO2553
4
GTO1254
2-4
GTO1321
2-3-5
GTO2323
4
GTO1255
1-2-3
GTO2256
1-2-3
GTO1257
1-4-5
GTO1322
1
GTO2324
1-2-3
GTO1411
1-2-3
1
2
4 5 3
1
5
4
2
3
Trunking Joint
Internal Coupler
Side view showing
trunking base and lid
with butt joint. Dotted
lines indicate position
of coupler.
All entries accept box entry adaptors BE11, BE21 and BE31
