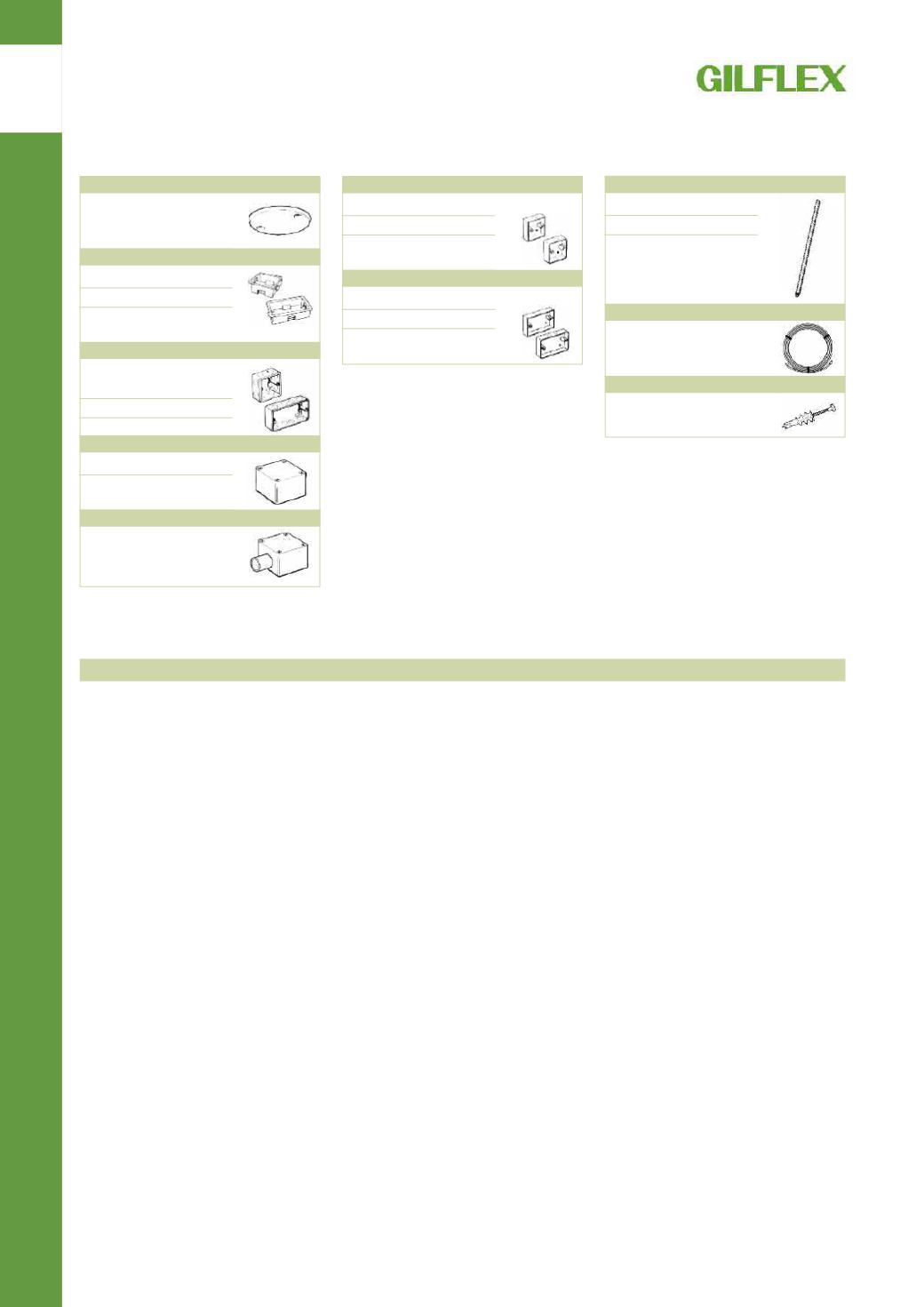

CONDUIT SYSTEMS
8
CIRCULAR BOX LIDS
GS 17S * 66mm
100
DRY LINING BOXES
37MM EXT. DEPTH
GDL 1 WHI
Single
25
GDL 2 WHI
Twin
10
FLUSH SWITCH / SOCKET BOXES
32MM EXT. DEPTH, 8X20MM ROUND
KNOCKOUTS
GSU 811ML Single
25
GSU 821ML Twin
10
ADAPTABLE PVC BOXES
PLAIN SIDES
AGB2 *
75 x 75 x 50
5
EARTH ELECTRODE BOX
GEB1 BLK 75 x 75 x 70
5
Ref. No.
Size
Std Pack
CONDUIT BOXES
CONDUIT SUNDRIES
BENDING SPRINGS
GREEN HEAVY GAUGE
GSS 20
For RG 20
Each
GSS 25
For RG 25
Each
NYLON DRAW TAPES
GD 30
30m
Each
DRY LINING FIXING
TP 12
35mm
100
Ref. No.
Size
Std Pack
SINGLE SURFACE SWITCH/SOCKET BOXES
32MM EXT. DEPTH, 2X20MM ROUND KNOCKOUTS
GSU 1311 Square
25
GSU 1312 Round
25
DOUBLE SURFACE SWITCH/SOCKET BOXES
32MM EXT. DEPTH, 3X20MM ROUND KNOCKOUTS
GSU 1321 Square
10
GSU 1322 Round
10
Ref. No.
Corners Std Pack
TECHNICAL INFORMATION
Gilflex conduits and fittings are manufactured in
accordance with the relevant British Standards.
BS 6099 Conduits for Electrical Installations
Part 1 Specification of general requirements
BS 4607 Non-metallic Conduit Fittings for Electrical
Installations
Part 1 Specification for fittings and components of
insulating material
The criteria for conduit is the diameter, all conduit
manufactured to the BS is measured on its outside
diameter (also described as O/D or Ø). This ensures
compatibility between all conduits and fittings.
PVCu conduit can be bent as required; for smaller sized
conduits up to 25mm a bending spring is the simplest
method, for larger sizes a bending machine with formers
is ideal. In cold weather a gentle warming of the conduit
assists the bending process. Excessive heating must be
avoided – the conduit will deform. Spring pulled bends
should be formed over the largest possible radius. Do not
attempt to pull a tight bend in one action.
When conduit is inserted into box termination spouts,
adaptors etc., no additional fixing is required.
The range of Gilflex
KlickFIt
fittings improves the ease of
installation and the finished appearance. There are no
screws to lose or corrode. The range comprises of
Spacer
Saddles, Inspection Bends, Inspection Elbows and
Inspection Tees
for 20mm conduit sizes. A similar range
exists for 25mm conduit with the exception of an
Inspection Elbow.
A major advantage of the Spacer Saddles
(GSB20 and
GSB25)
is the ability to close gang conduits. Because the
saddle base is only slightly bigger than the diameter of the
conduit, unlike conventional spacer bar saddles, which
require more than twice the space occupied by the
conduit, two conduits can be installed as parallel runs
with minimum space between them. It is also possible for
the spacer saddles to be mounted in a straight line. To
reduce the distance between conduits using conventional
saddles, the saddles have to be offset or staggered.
Conduit Reducers
(GR1M and GR2M) must be used in
conjunction with a coupler (GSC), an adaptor (GFA-GMA)
or a spout of a conduit box (B24-66).
AGB ADAPTABLE BOXES
The AGB 2 (75 x 75 x 50mm) provides the means of
producing multiple configurations of boxes for 32mm,
38mm and 50mm systems. The simple expedient of using
a GFA (female adaptor) of the appropriate size in any of
the four walls or base will provide termination, angle, tee,
through and intersection variants and, if required, conduit
size reduction without the need for reducers.
* Add suffix WHI for White, BLK for Black e.g. to order a pack of white 20mm Terminal Spouts, ask for Ref. No. B 24 WHI.
