BETA Protecting
Low-Voltage Fuse Systems
NEOZED fuse systems
3/4
Siemens ET B1 · 10/2008
3
*
You can order this quantity or a multiple thereof.
■
Overview
The NEOZED fuse system is primarily used in distribution
technology and industrial switchgear assemblies. The system is
easy to use and is also approved for domestic installation.
MINIZED switch disconnectors are primarily used in switchgear
assemblies and control engineering. They are approved for
switching loads and also for safe switching in the event of
short circuits. The MINIZED D02 is also suitable for use in
the pre-counter area in households in accordance with the
recommendations of the VDEW as defined in TAB 2007.
Due to its small footprint, the NEOZED disconnector is primarily
used in control engineering.
The NEOZED fuse bases are the most cost-effective solution for
the application of NEOZED fuses. All NEOZED bases must be
fed from the bottom to ensure that the threaded ring is insulated
during removal of the fuse link. The terminals of the NEOZED
bases are available in different versions and designs to support
the various installation methods.
■
Benefits

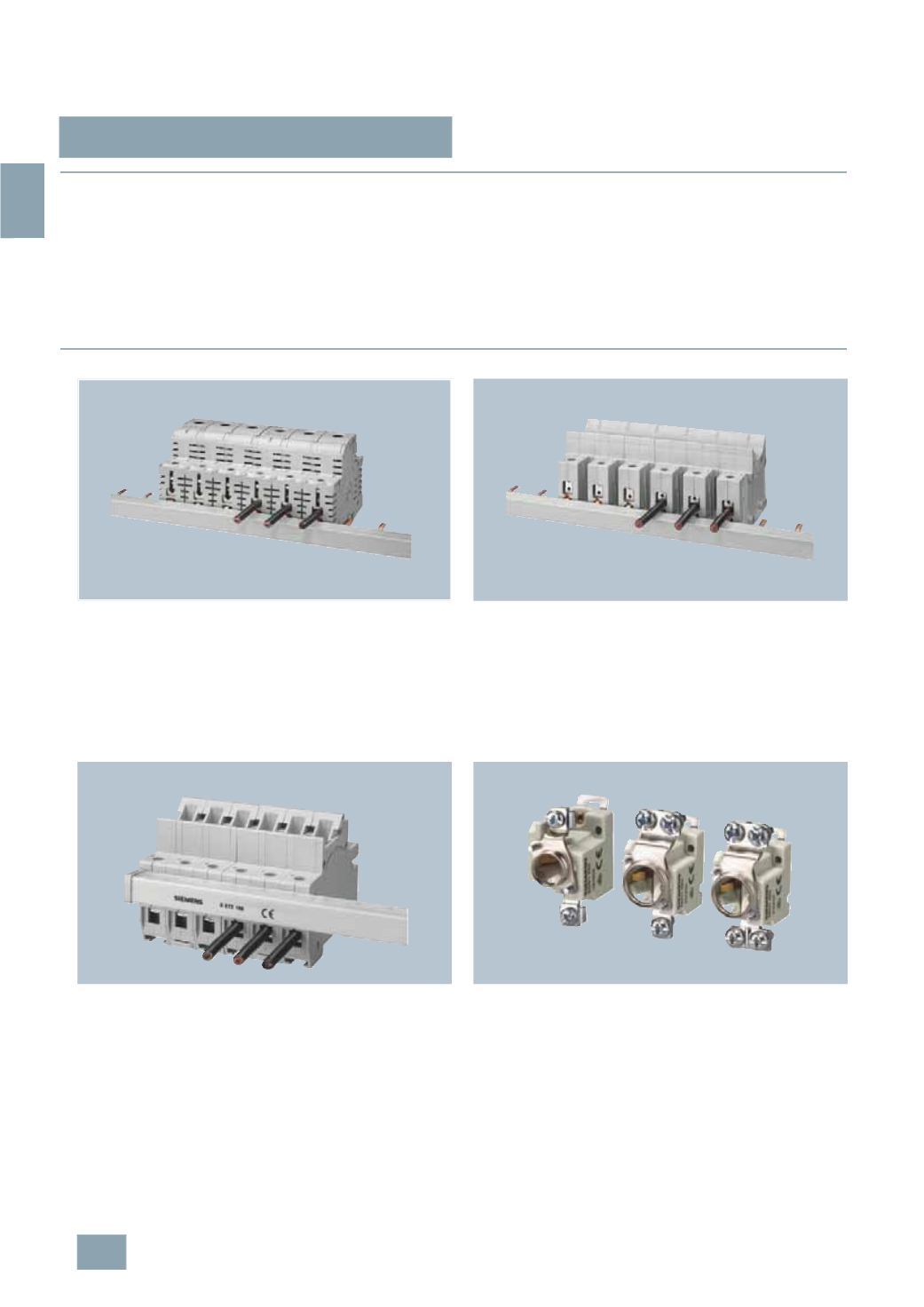

MINIZED switch disconnectors
•
Clear and visible conductor connection that can be easily
checked. This facilitates insertion of the conductor and saves
time.
•
With draw-out technology for off-circuit replacement of fuses.
This provides enhanced safety.
•
The infeed of the devices can be from the top or the bottom.
This enables flexible application.
NEOZED fuse bases made of molded plastic
•
Clear and visible conductor connection that can be easily
checked. This facilitates insertion of the conductor and saves
time.
•
Greater safety for personnel thanks to terminals with touch-
protection according to BGV A3 at incoming and outgoing
feeders. This ensures enhanced safety.
•
Two type ranges with different terminals offer expanded
application options.
NEOZED fuse disconnectors
•
With draw-out technology for off-circuit replacement of fuses.
This provides enhanced safety.
•
Extremely slim design with a single MW per pole. This saves
space and costs.
NEOZED fuse bases made of ceramic
•
Different terminal versions support a huge range of different
installation methods. This ensures greater flexibility.
•
These bases are the most widely used devices for applications
with NEOZED fuses. An unrivaled cost-effective solution.
