BETA Protecting

Residual Current Protective Devices

Busbars

2/32

Siemens ET B1 · 10/2008

2

*

You can order this quantity or a multiple thereof.

Technical specifications

5

ST3, 5ST2

Standards

EN 60439-1 (VDE 0660-500): 2005-01

Busbar material

SF-Cu F 24

Partition material

Plastic, Cycoloy 3600

Heat-resistant to more than 90 °C flame-retardant and self-extinguishing,

dioxin and halogen-free

Rated operational voltage U

e

V AC 400

Rated current

I

n

Cross-section 10 mm

2

A 63

Cross-section 16 mm

2

A 80

Rated impulse withstand voltage U

imp

kV 4

Test pulse voltage (1.2/50)

kV 6.2

Rated conditional short-circuit current

I

cc

kA 25

Resistance to climate

Constant atmosphere

Acc. to DIN 50015

23/83; 40/92; 55/20

Humid heat

Acc. to IEC 68-2-30

28

cycles

Insulation coordination

Acc. to IEC 664

(

VDE 0110-1)

Overvoltage category

III

Degree of pollution

2

Maximum busbar current

I

S

/

phase

Infeed at the start of the busbar

-

Cross-section 10 mm

2

A 63

-

Cross-section 16 mm

2

A 80

Infeed at the center of the busbar

-

Cross-section 10 mm

2

A 100

-

Cross-section 16 mm

2

A 130

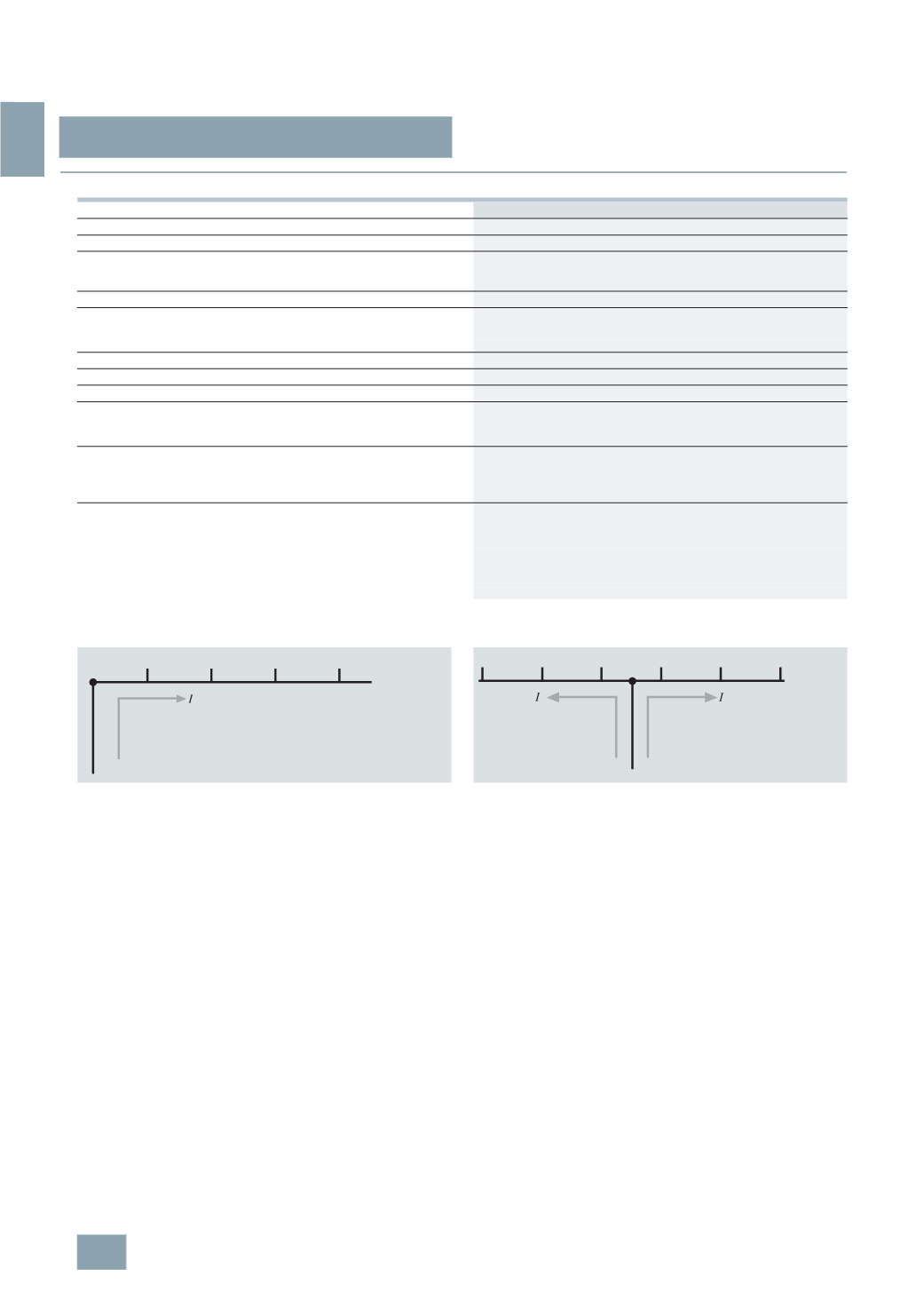

Infeed at the busbar end

Infeed near the busbar end or at the busbar center

The sum of the output current per branch (1, 2, 3 ... n) must not be greater

than the max. busbar current

I

S

/

phase

S

I2_13755

S

S

3

2

1

1

2

3

I2_13754a
