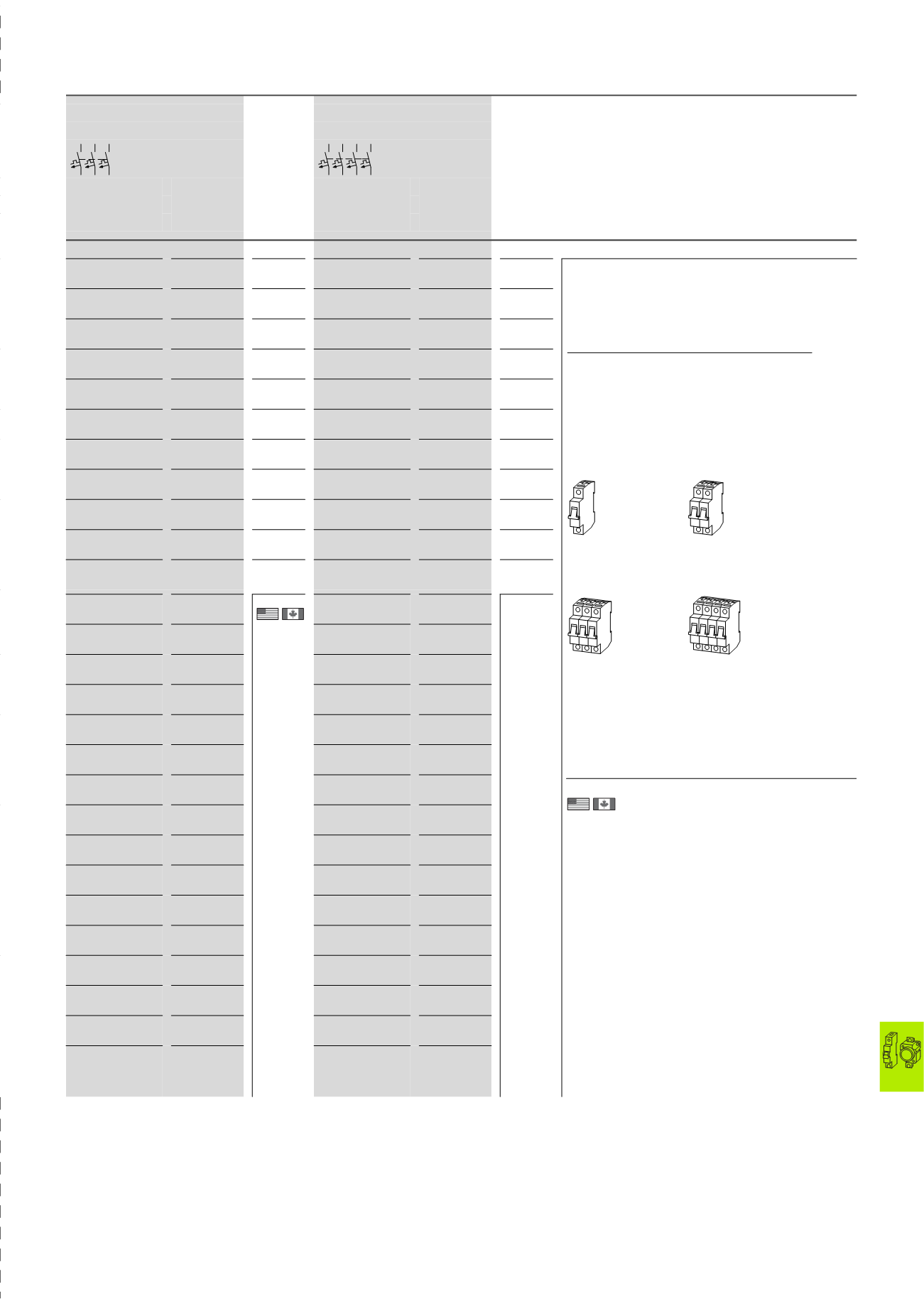

Eaton Industrial Switchgear - XEnergy XPole Energy distribution, switching and protection

463 / 543

2010 CA08103002Z-EN
Circuit-breakers, fuses
Miniature circuit-breakers (MCB)
3 pole 4 pole
With 3 protected poles With 4 protected poles Notes
Part no.
Article no.
Price
See price list
Std. pack Part no.
Article no.
Price
See price list
Std. pack
Information relevant for export to North America
Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077;
CSA-C22.2 No. 235; CE marking
UL File No. E177451
UL CCN QVNU2, QVNU8
CSA File No. 204453
CSA Class No. 3215-30
NA Certification UL Recognized,
CSA certified
Conditions of Acceptability
Supplementary Protector only
Suitable for Branch Circuits;
not as BCPD
Max. Voltage Rating 1 pole: 277 V AC; 48 V DC
2 pole: 480 Y/277 V AC;
96 V DC
3 pole: 480 Y/277 V AC
Degree of Protection IEC: IP20; UL/CSA Type: -
Short Circuit Current Rating
≦ 40 A 10 kA
≧ 50 A 5 kA
FAZ-Z0.5/3
278918
1 off FAZ-Z0.5/4
279106
1 off
FAZ-Z1/3
278919
FAZ-Z1/4
279107
FAZ-Z1.6/3
278920
FAZ-Z1.6/4
279108
FAZ-Z2/3
278921
FAZ-Z2/4
279109
FAZ-Z3/3
278922
FAZ-Z3/4
279110
FAZ-Z4/3
278923
FAZ-Z4/4
279111
FAZ-Z6/3
278924
FAZ-Z6/4
279112
FAZ-Z8/3
278925
FAZ-Z8/4
279113
FAZ-Z10/3
278926
FAZ-Z10/4
279114
FAZ-Z16/3
278927
FAZ-Z16/4
279115
FAZ-Z20/3
278928
FAZ-Z20/4
279116
FAZ-Z25/3
278929
FAZ-Z25/4
279117
FAZ-Z32/3
278930
FAZ-Z32/4
279118
FAZ-Z40/3
278931
FAZ-Z40/4
279119
FAZ-Z50/3
278932
FAZ-Z50/4
279120
FAZ-Z63/3
278933
FAZ-Z63/4
279121
2 4 6
1 3 5
4 6
5 3
2
1
8
7
Switching capacity
(IEC/EN 60898) 10 kA
Switching capacity
(IEC/EN 60947-2)
15 kA
Accessories Page
Auxiliary contacts ￫19/24
Shunt releases
Mounting accessories ￫19/25
1 pole
Depth 71 mm
Width 17.5 mm
2 pole; 1 pole + N
Depth 71 mm
Width 35 mm
3 pole
Depth 71 mm
Width 52.5 mm
4 pole; 3 pole + N
Depth 71 mm
Width 70 mm
19/9
FAZ-S, FAZ-Z HPL19009EN
