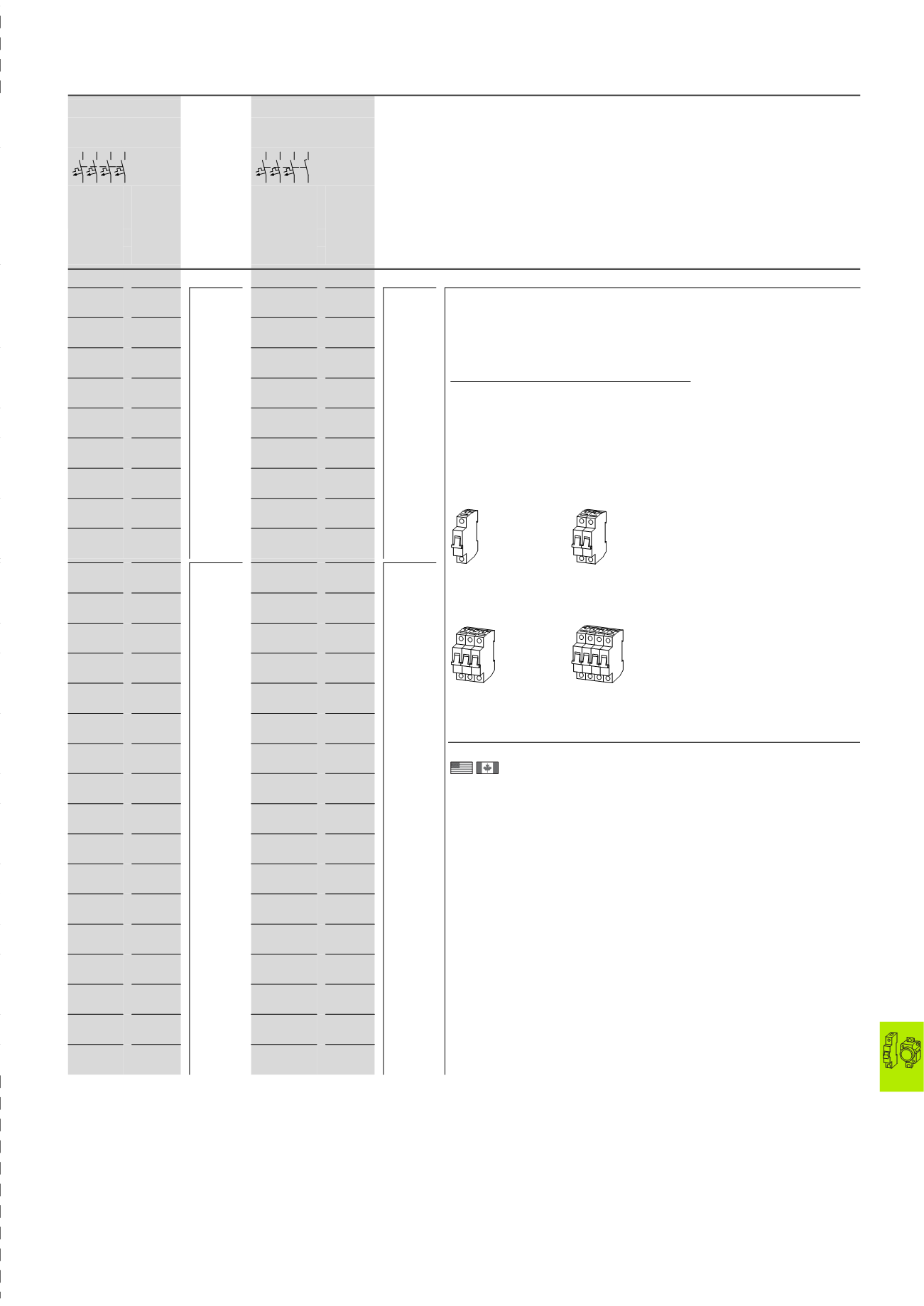

2010 CA08103002Z-EN

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

4 pole

4 pole

With 4 protected poles

With 3 protected poles, N

switching with poles

Notes

Part no.

Article no.

Price

Seeprice

list

Std. pack

Part no.

Article no.

Price

Seeprice

list

Std. pack

FAZ-D6/4

279078

1 off

FAZ-D6/3N

278992

1 off

Information relevant for export to North America

Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077;

CSA-C22.2 No. 235; CE marking

UL File No.

E177451

UL CCN

QVNU2, QVNU8

CSA File No.

204453

CSA Class No.

3215-30

NA Certification

UL Recognized,

CSA certified

Conditions of Acceptability

Supplementary Protector only

Suitable for

Branch Circuits;

not as BCPD

Max. Voltage Rating 1 pole: 277 V AC; 48 V DC

2 pole: 480 Y/277 V AC;

96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20; UL/CSA Type: -

Short Circuit Current Rating

≦ 40 A

10 kA

≧ 50 A

5 kA

FAZ-D8/4

279079

FAZ-D8/3N

278993

FAZ-D10/4

279080

FAZ-D10/3N

278994

FAZ-D13/4

279082

FAZ-D13/3N

278996

FAZ-D16/4

279084

FAZ-D16/3N

278998

FAZ-D20/4

279085

FAZ-D20/3N

278999

FAZ-D25/4

279086

FAZ-D25/3N

279000

FAZ-D32/4

279087

FAZ-D32/3N

279001

FAZ-D40/4

279088

FAZ-D40/3N

279002

FAZ-K0.5/4

279089

1 off

FAZ-K0.5/3N

279003

1 off

FAZ-K1/4

279090

FAZ-K1/3N

279004

FAZ-K1.6/4

279091

FAZ-K1.6/3N

279005

FAZ-K2/4

279092

FAZ-K2/3N

279006

FAZ-K3/4

279093

FAZ-K3/3N

279007

FAZ-K4/4

279094

FAZ-K4/3N

279008

FAZ-K6/4

279095

FAZ-K6/3N

279009

FAZ-K8/4

279096

FAZ-K8/3N

279010

FAZ-K10/4

279097

FAZ-K10/3N

279011

FAZ-K13/4

279098

FAZ-K13/3N

279012

FAZ-K16/4

279099

FAZ-K16/3N

279013

FAZ-K20/4

279100

FAZ-K20/3N

279014

FAZ-K25/4

279101

FAZ-K25/3N

279015

FAZ-K32/4

279102

FAZ-K32/3N

279016

FAZ-K40/4

279103

FAZ-K40/3N

279017

FAZ-K50/4

279104

FAZ-K50/3N

279018

FAZ-K63/4

279105

FAZ-K63/3N

279019

4 6

5 3

2

1

8

7

2 4 6

5

N

N

3 1

Switching capacity

(IEC/EN 60898)

10 kA

Switching capacity

(IEC/EN 60947-2)

15 kA

Accessories

Page

Auxiliary contacts

￫19/24

Shunt releases

Mounting accessories ￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

19/7

FAZ-D, FAZ-K
